Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 90
Copyright © 2018, All Rights Reserved.
2
Install a CPRI cable from the RRH (L0 port) to the CDU.

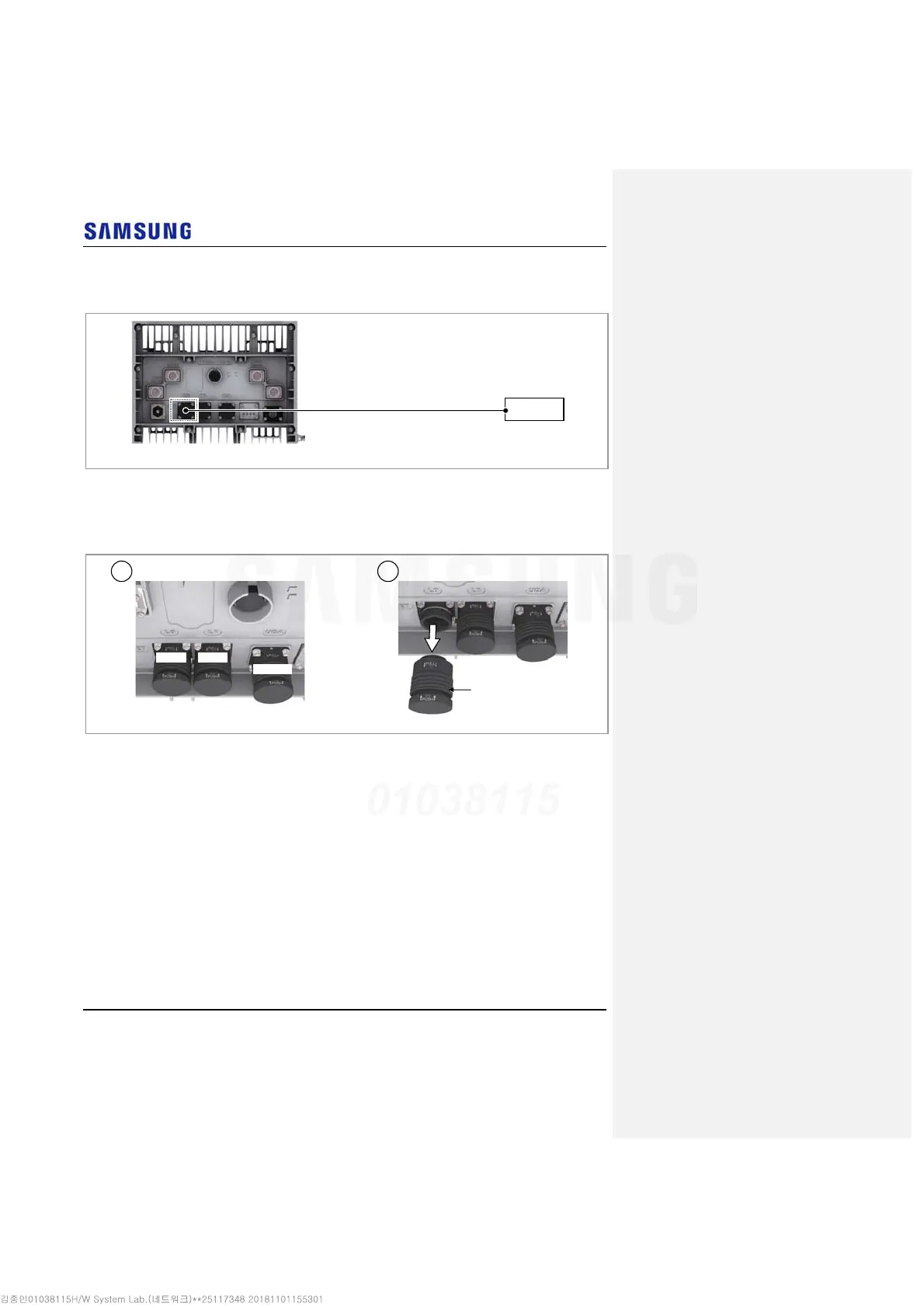

Figure 78. Connecting CPRI Cable (1)
3
Separate the cap from the system side connector (L0 port).
Figure 79. Connecting CPRI Cable (2)
Cap
L0 Port
UDA Port
1 2
L1 Port
[Bottom View]
CDU
CPRI Cable
To Next Page
