Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 73
Copyright © 2018, All Rights Reserved.

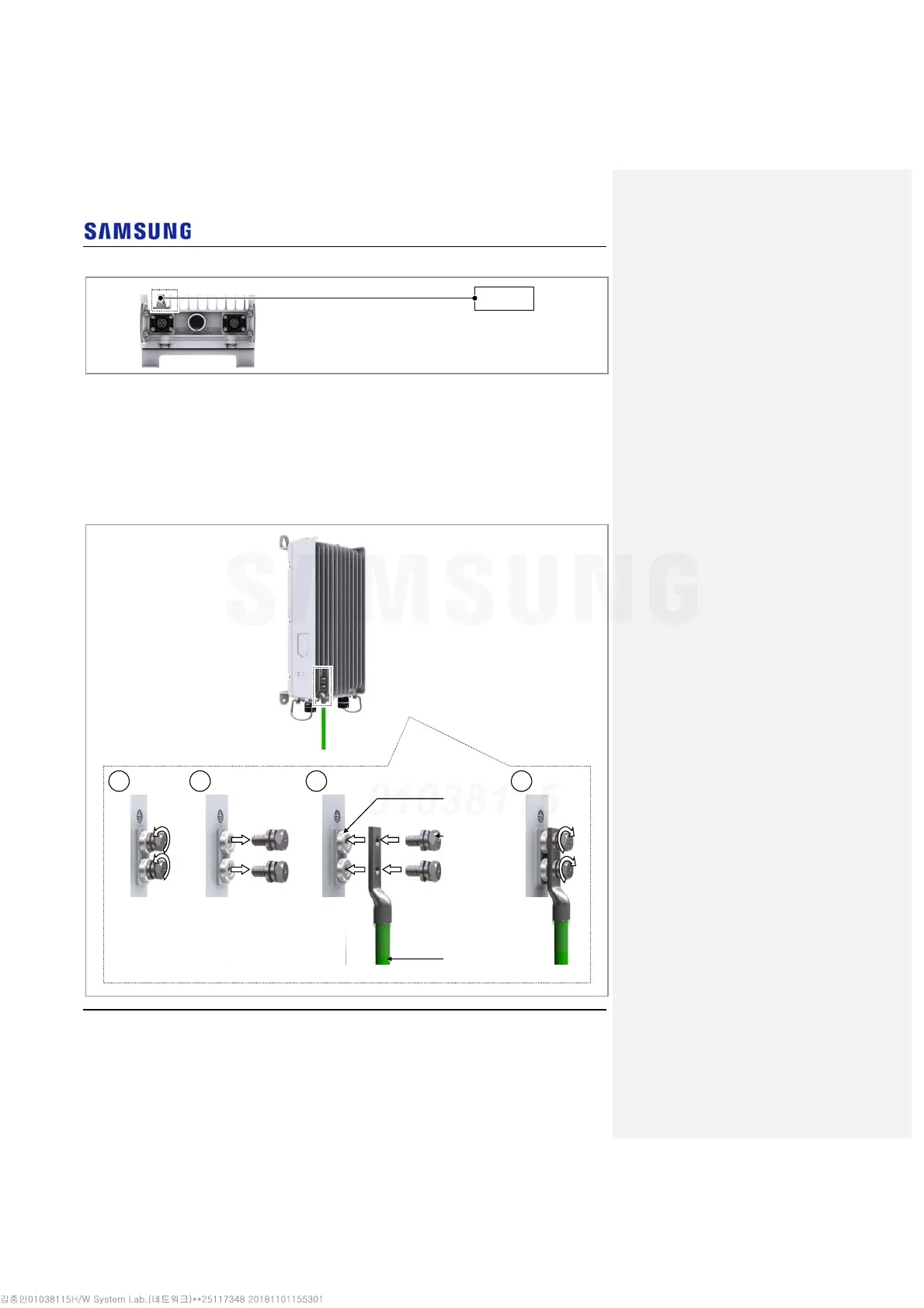

Figure 65. Connecting AC/DC Convertor Ground Cable (1)
3
Assemble a pressure terminal and a heat shrink tube at the end of the AC/DC
convertor ground cable.
4
Align the pressure terminal to the mounting hole of the AC/DC convertor
ground terminal.
5
Firmly fix the pressure terminal onto the AC/DC convertor ground terminal
using fasteners.
Figure 66. Connecting AC/DC Convertor Ground Cable (2)
1 2 43
M6 SEMS
(Hex. +)
Ground
Cable
Special
Bolt
MGB
Ground Cable
[Bottom View]
To Next Page
