Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 77
Copyright © 2018, All Rights Reserved.
Power Connector
Pin No.
Description Color
2
Install a DC power cable from the AC/DC convertor (or site rectifier) to the
RRH.

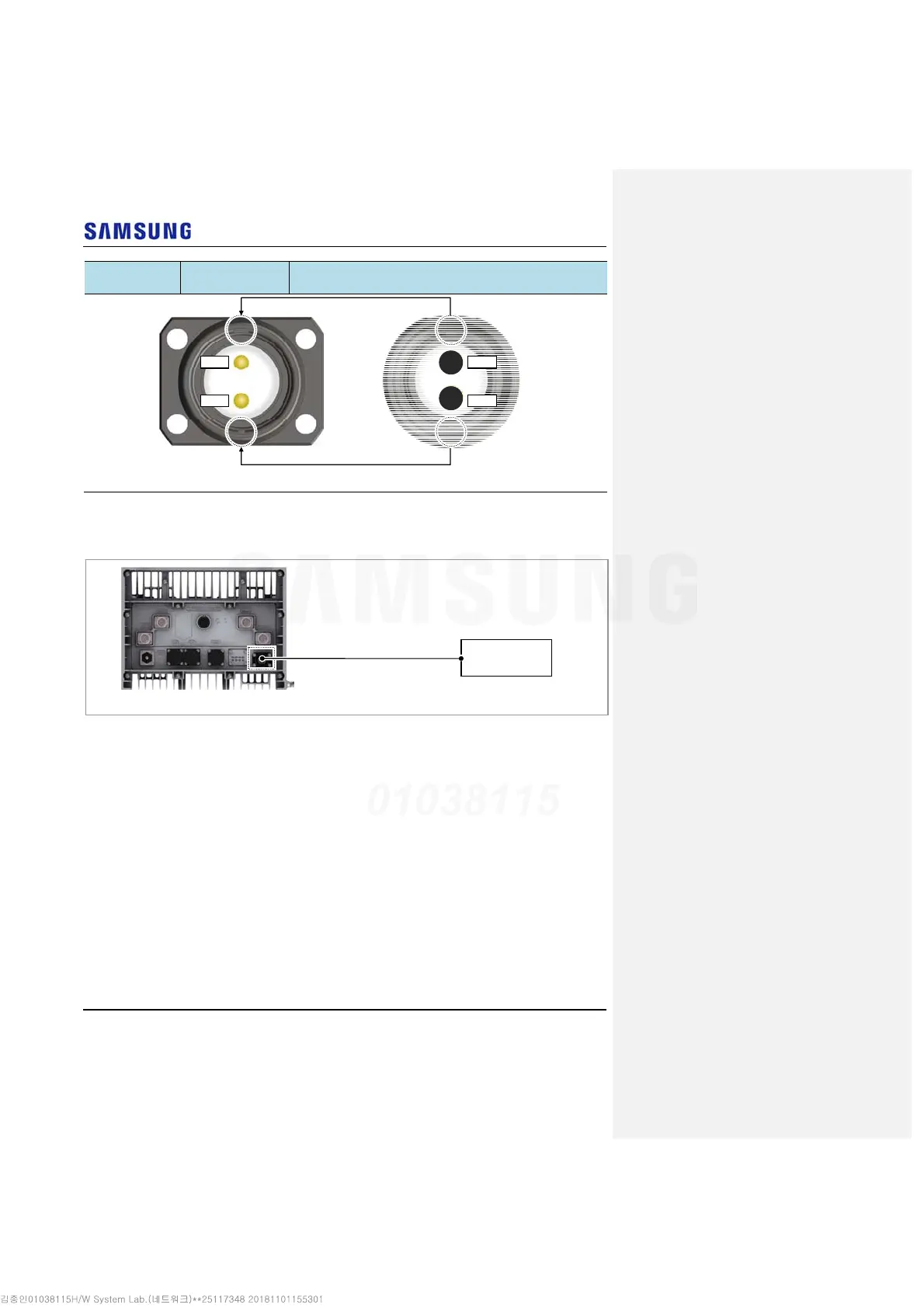

Figure 68. Connecting RRH DC Power Cable (1)
3
Insert the connector aligning the cable side connector’s white dot and system
side connector’s white dot. When inserting the connector, push the shell to
upper side.
[Bottom View]
AC/DC Convertor
(or Site Rectifier)
DC Power Cable
[Cable side Connector]
[System side Connector]
Bump Groove
Bump
Groove
Pin 1
Pin 2
Pin 1
Pin 2
To Next Page
