Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 55
Copyright © 2018, All Rights Reserved.
2 Check the distance between the location for fixing the RRH and anchor bolt
hole.

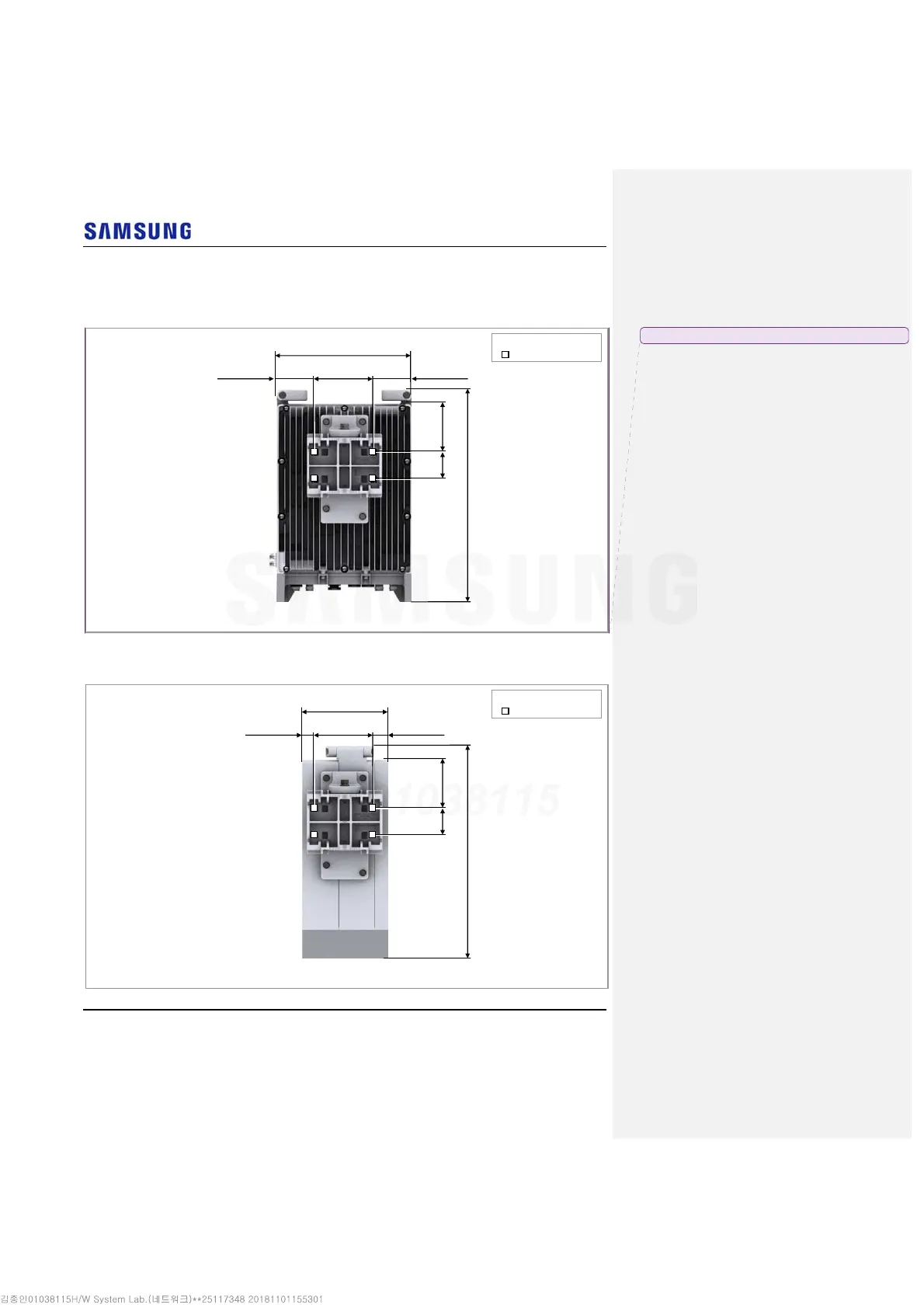

Figure 51. RRH marking dimensions_1 Sector Wall Type (Standard Installation)
Figure 52. RRH marking dimensions_1 Sector Wall Type (Side Installation)
Unit: in. (mm)
: Anchor Bolt Hole
5.11(130)
8.86(225)
1.15(29.3)
2.59(65.7)
4.27
(108.5)
18.74(476)
2.36
(60)
[Left View]
Unit: in. (mm)
: Anchor Bolt Hole
5.11(130)
300(11.81)
3.35(85)
3.35(85)
4.27
(108.5)
18.74(476)
2.36
(60)
[Rear View]
메모 포함[H5]: Change 300(11.81) to 11.81(300)
