System Arrangement
A minimum distance must be secured around the RRH, in each direction for
installation and maintenance.

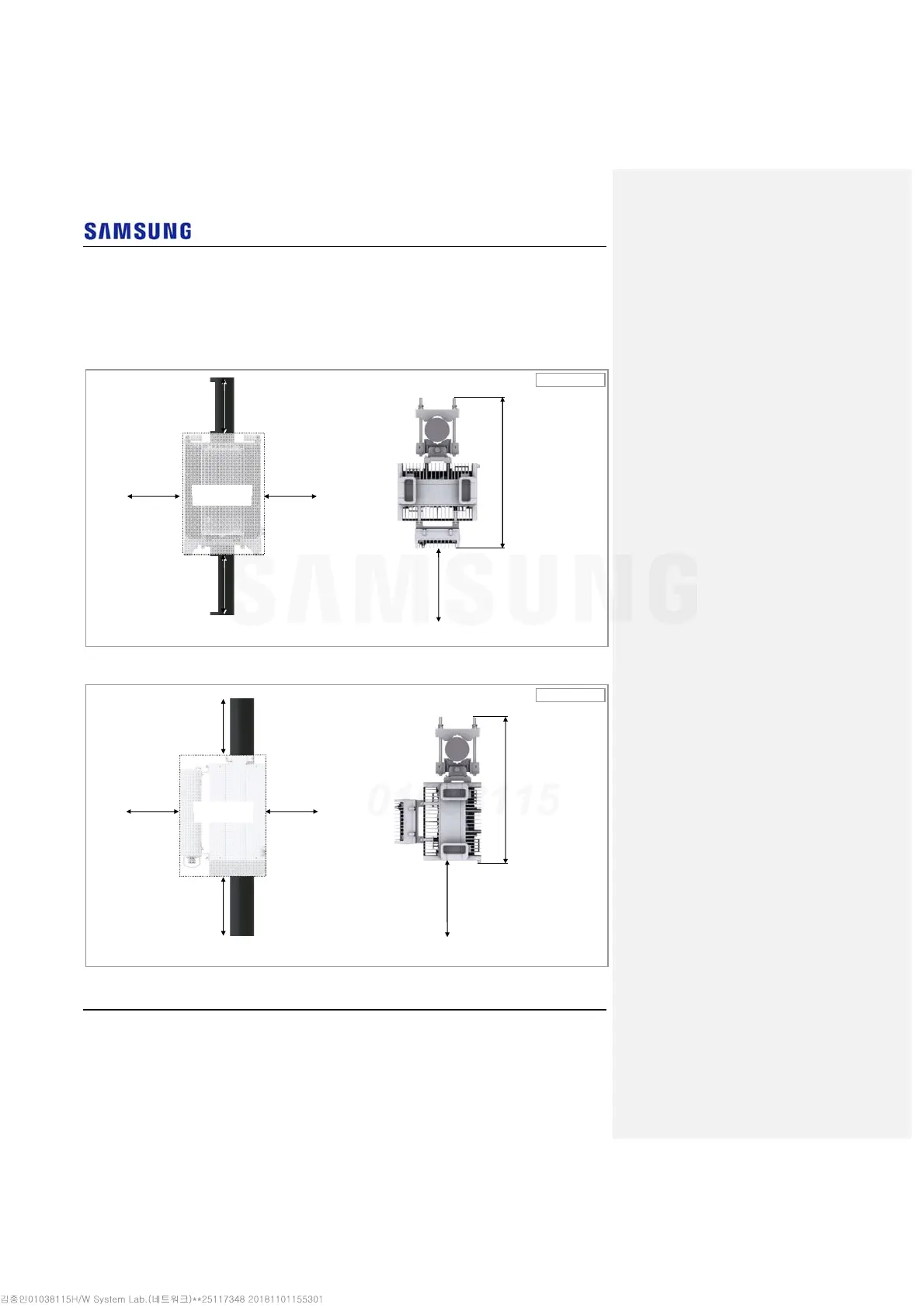

Figure 6. RRH Arrangement_1 Sector Pole Type Installation (Standard Installation)
Figure 7. RRH Arrangement_1 Sector Pole Type Installation (Side Installation)
[Front View]
Unit: in. (mm)
[Top View]
≥ 12 (300)
≥ 16 (400)
≥ 8 (200) ≥ 8 (200)
21.89 (556)
≥ 32 (800)
W: 13.19 (335)
H: 18.74
(
476
)
[Front View]
Unit: in. (mm)
[Top View]
≥ 12 (300)
≥ 16 (400)
≥ 8 (200) ≥ 8 (200)
23.27 (591)
≥ 32 (800)
W: 11.81 (300)
H: 18.74
(
476
)
