Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 70
Copyright © 2018, All Rights Reserved.
Category Description
RRH M6 × L14 SEMS (Hex. +)/2 EA
Recommended
Torque Value
M6 SEMS 43 lbf·in
Working Tools
Cable Cutter
Wire Stripper
Crimping tool
Heating Gun
Nipper
Screw Driver (‘+’, No. 3)
Torque Driver (20~90 lbf·in.)
Screw Driver Bit (‘+’, No. 3)
For the pressure terminal or the cable, the UL Listed products or equivalent should
be used.
Ex) Manufacturer-Panduit
RRH: 6 AWG Pressure Terminal (LCD6-14A-L)
2
Install a ground cable from the MGB to the RRH ground terminal.

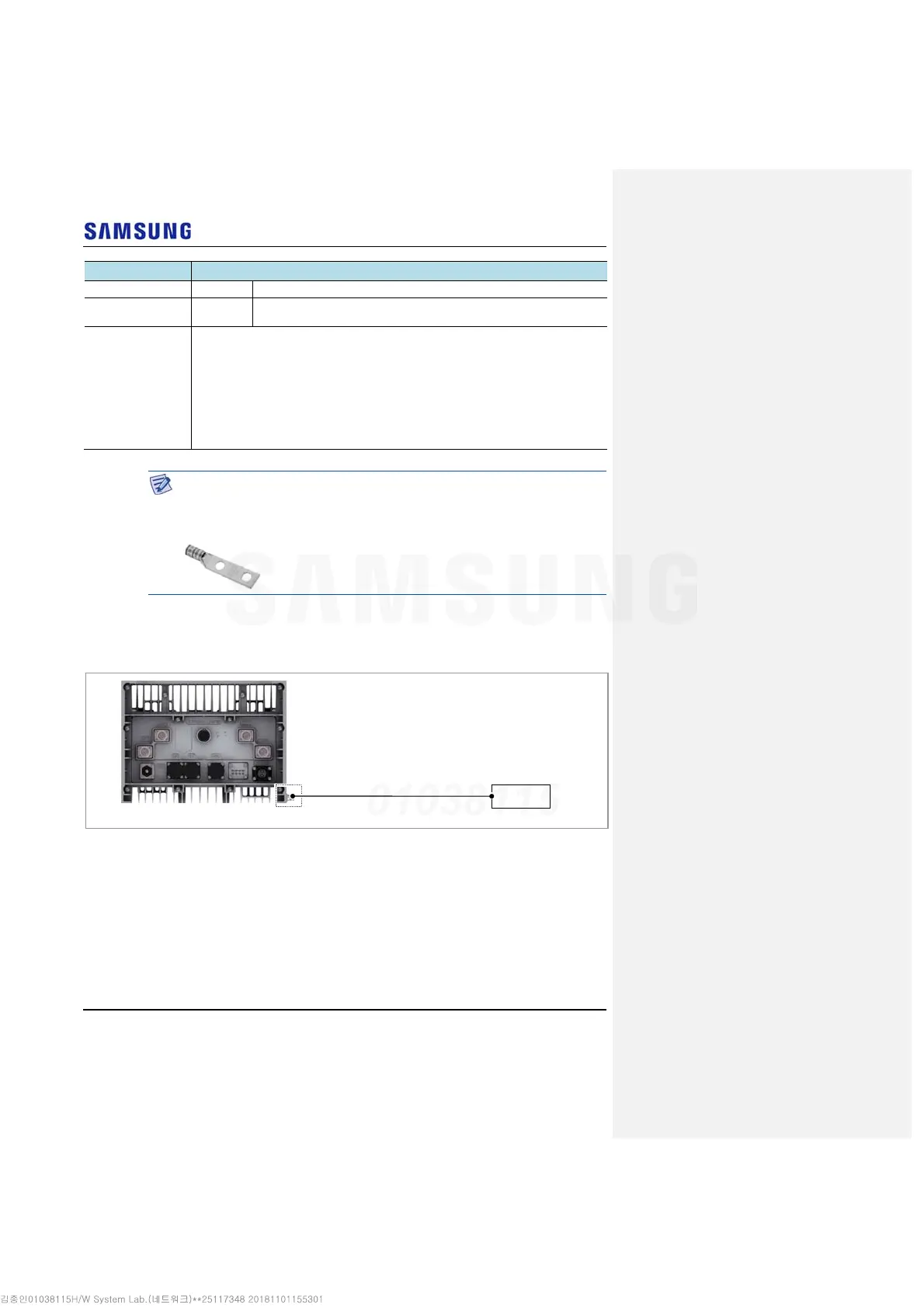

Figure 63. Connecting RRH Ground Cable (1)
[Bottom View]
MGB
Ground Cable
To Next Page
