Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 106
Copyright © 2018, All Rights Reserved.
To connect RF cable_2T4R, 4T4R Connection
1 Install RF cable from the RRH to the RF antenna.

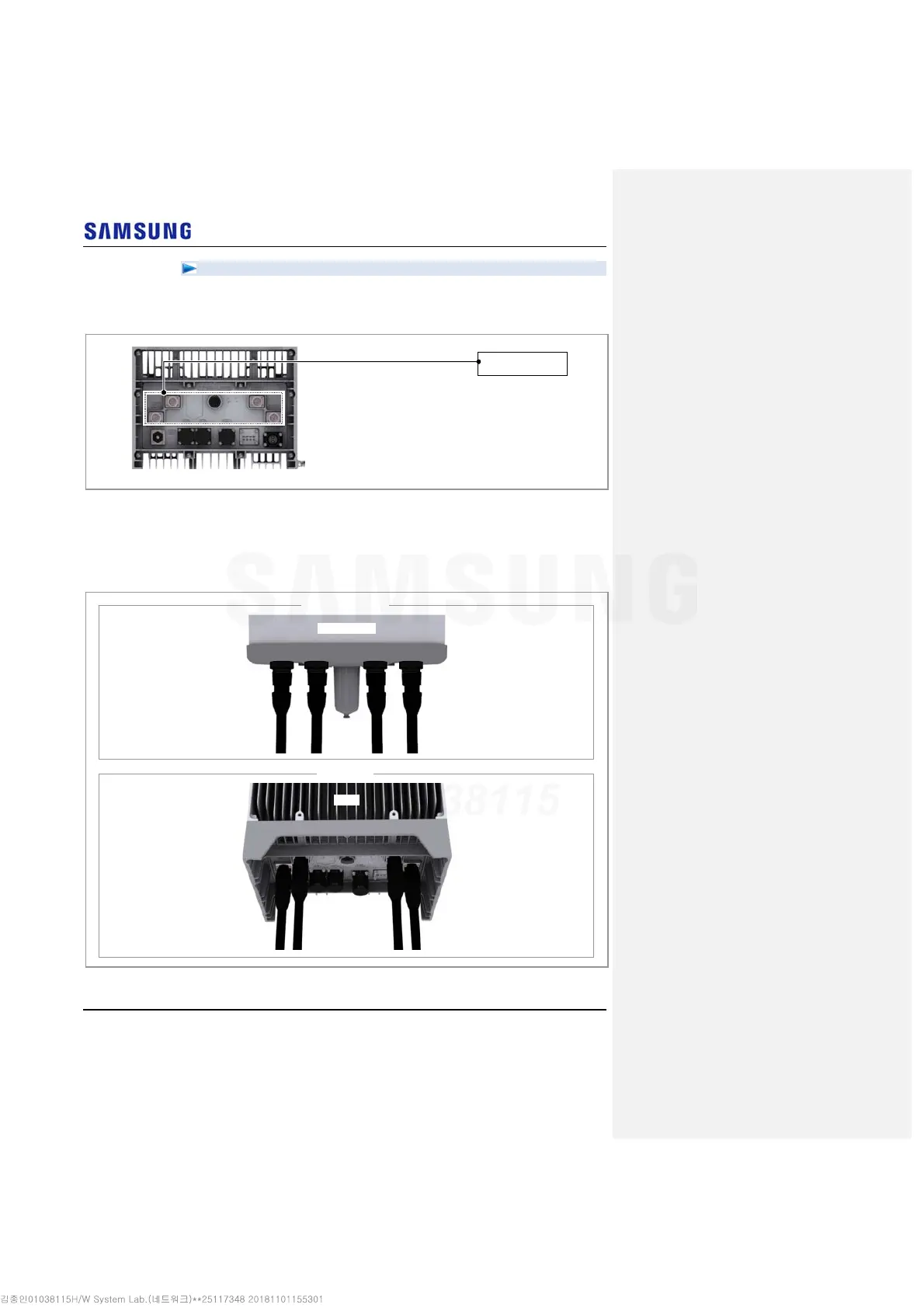

Figure 101. Connecting RF Cable_2T4R, 4T4R Connection (1)
2 2T2R RF 케이블 연결과 동일한 방식으로 RF antenna ~ RRH(ANT 1, ANT
2, ANT 3, ANT 4) port 간 RF 케이블을 연결한다.
Figure 102. Connecting RF Cable_2T4R, 4T4R Connection (2)
[RF Antenna side]
[RF Antenna]
[RRH side]
[RRH]
[Bottom View]
RF Cable
RF Antenna
