Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 24
Copyright © 2018, All Rights Reserved.
To fix AC/DC convertor_Front Installation
1 Make sure that you have the following items:
Table 6. Parts and Tools for fixing AC/DC convertor_Front Installation
Category Description
Fasteners M6 × L20 Hex. Bolt (washer assembly) 4 EA/RRH
Recommended Torque Value M6 Hex. Bolt 43 lbfin
Working Tools
 Torque Wrench (10~50 lbfin)
 Torque Wrench Spanner head (apply Hexagon Head: 10 mm)
 Spanner (10 mm)
2 Place an AC/DC convertor to the RRH front.

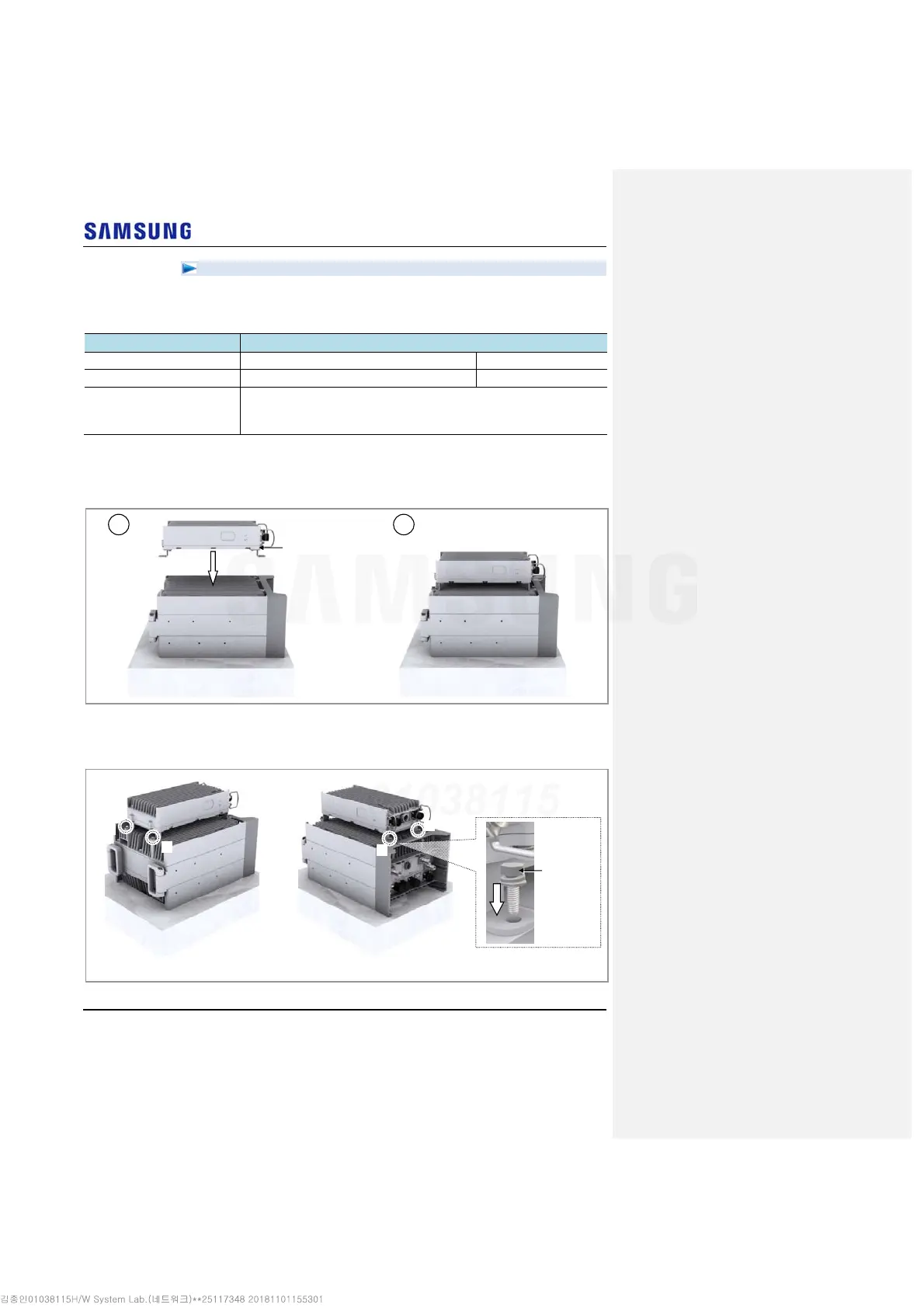

Figure 17. Fixing AC/DC Convertor_Front Installation (1)
3 Fix an AC/DC convertor using fasteners.
Figure 18. Fixing AC/DC Convertor_Front Installation (2)
[Top Side] [Bottom Side]
M6 Hex. Bolt
(Washer
A
ssembl
y
)
1
2
3
4
1 2
A
C/DC Converto
r
