Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 20
Copyright © 2018, All Rights Reserved.
2 Place a unit bracket to the RRH rear.

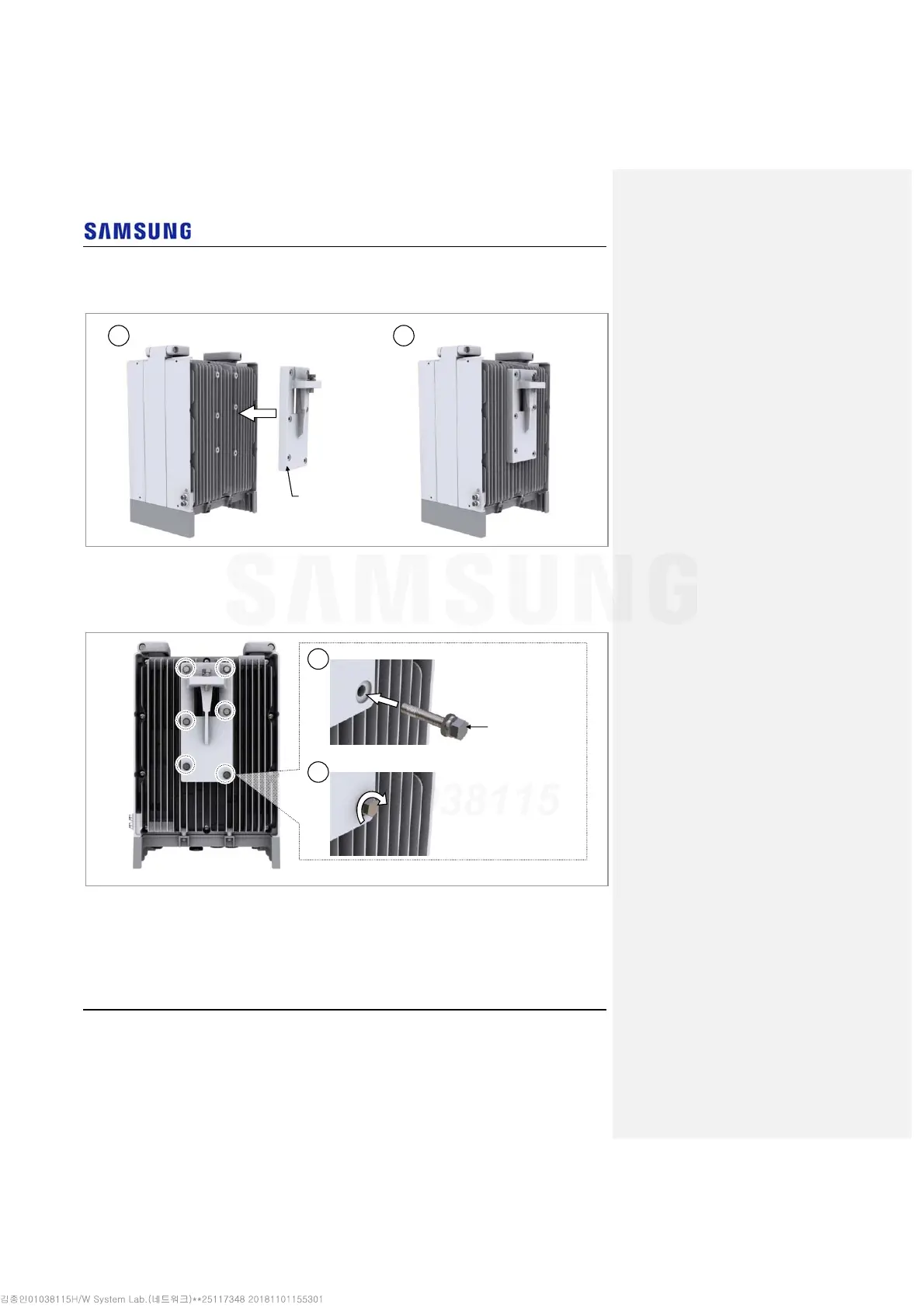

Figure 13. Fixing Unit Bracket_Standard Installation (1)
3 Fix a unit bracket using fasteners.
Figure 14. Fixing Unit Bracket_Standard Installation (2)
1
2
M6 Hex. Bolt
(Washer Assembly)
1 2
Unit
Bracket
