Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 94
Copyright © 2018, All Rights Reserved.
Connecting UDA Cable
To connect UDA cable
1
Make sure you have the following items:
Table 34. Parts and Tools for connecting UDA Cable
Category Description
Installation Section External Device~RRH UDA Port
Cable UDA Cable Assembly (AWG24, 8C, CAT5e, SFTP)
Bend Radius Operation: 5 × OD Installation: 10 × OD
Connector External Device Check specifications of external device output terminal
per site and prepare fasteners.
RRH JONHON, Push Pull Type, RJ45MF-CT-07
Working Tool
Cable Cutter
Wire Stripper
Nipper
LAN Tool
Table 35. UDA Cable Pin Map
System Side Color Map Description
1 White/Blue UDA3_RTN
2 Blue UDA3
3 White/Orange UDA2_RTN
4 Orange UDA2
5 White/Green UDA1_RTN
6 Green UDA1
7 White/Brown UDA0_RTN
8 Brown UDA0
2
Install a UDA cable from the External Device to the RRH.

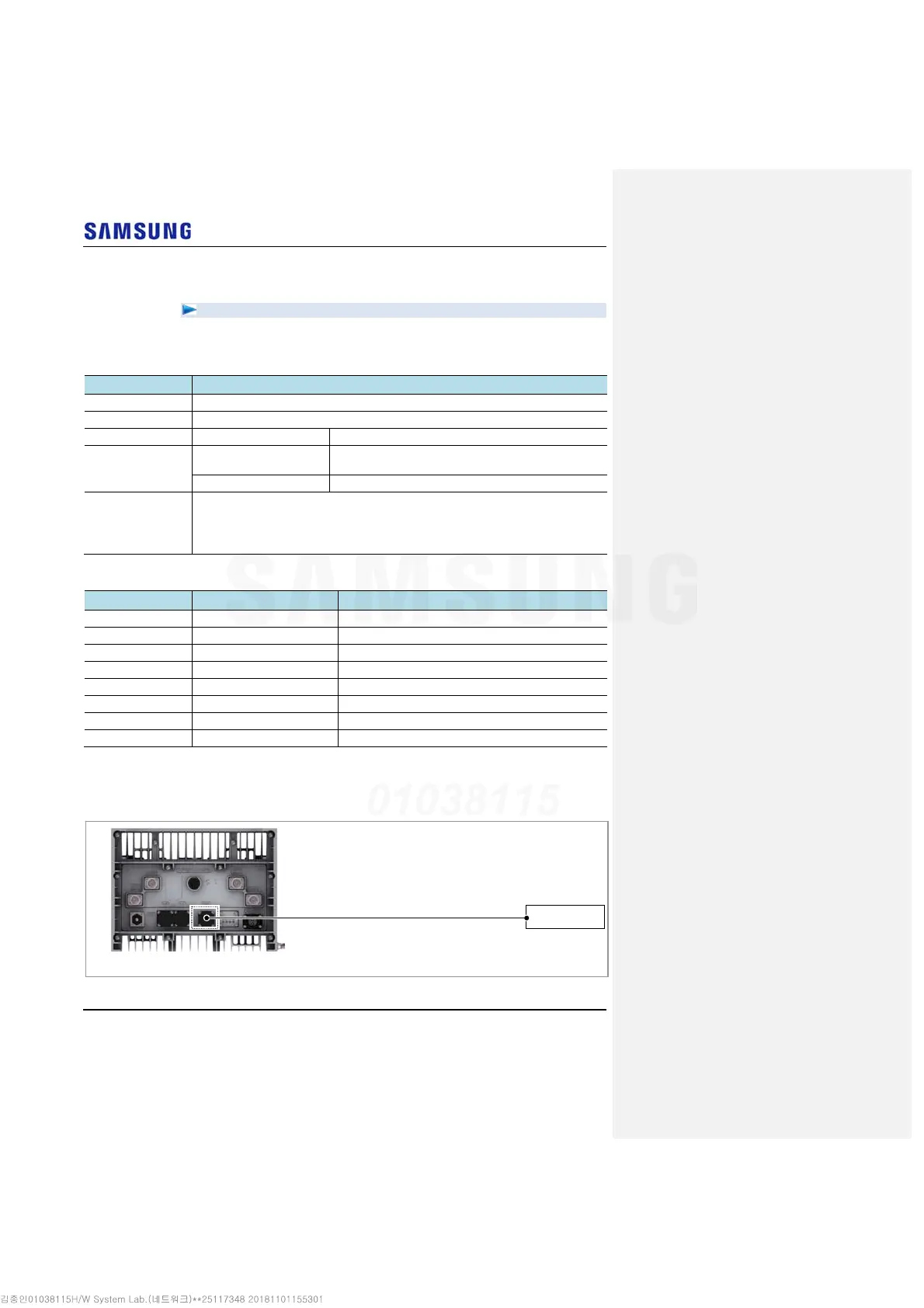

Figure 84. Connecting UDA Cable (1)
[Bottom View]
External Device
UDA Cable
To Next Page
