Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 16
Copyright © 2018, All Rights Reserved.

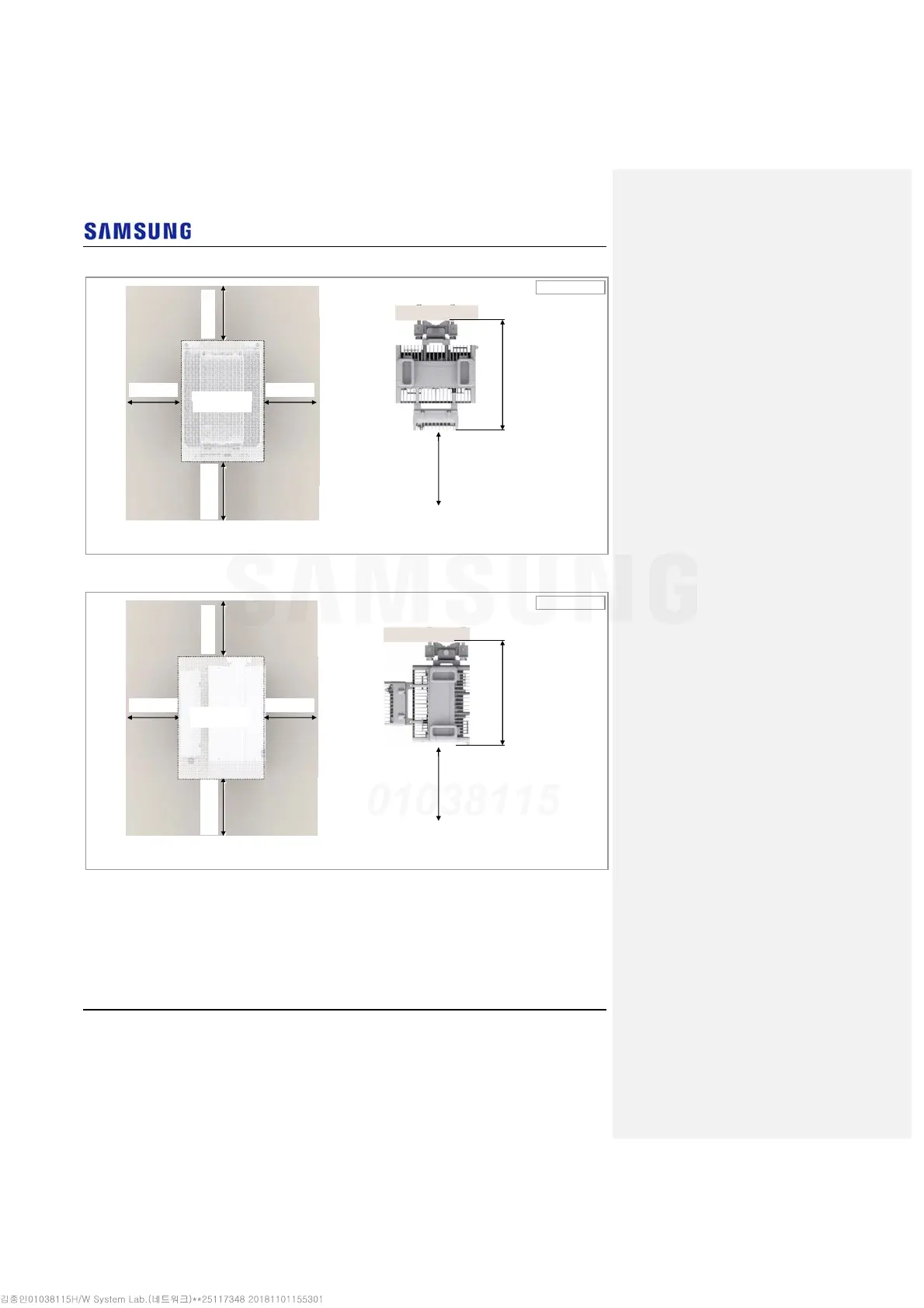

Figure 10. RRH Arrangement_1 Sector Wall Type Installation (Standard Installation)
Figure 11. RRH Arrangement_1 Sector Wall Type Installation (Side Installation)
[Front View]
Unit: in. (mm)
[Top View]
≥ 12 (300)
≥ 16 (400)
≥ 8 (200) ≥ 8 (200)
15.53 (394.5)
≥ 32 (800)
W: 13.19 (335)
H: 18.74
(
476
)
[Front View]
Unit: in. (mm)
[Top View]
≥ 12 (300)
≥ 16 (400)
≥ 8 (200) ≥ 8 (200)
16.9 (429.5)
≥ 32 (800)
W: 11.81 (300)
H: 18.74
(
476
)
