Fixing Mounting Bracket
The way to fix 1 sector mounting bracket is as follows:
To fix Mounting Bracket_1 Sector Wall Type
1
Make sure you have the following items:
Table 20. Parts and Tools for fixing Mounting Bracket_1 Sector Wall Type
Category Description
Parts Mounting Bracket_Front 1 EA
Fastener M10 Plain Washer
M10 Spring Washer
M10 × L70 Hex. Bolt
4 EA
4 EA
4 EA
Recommended Torque Value M10 Hex. Bolt 217 lbfin
Working Tools
Torque Wrench (100~400 lbf·in)
Torque Wrench Spanner head (apply Hexagon Head: 17 mm)
Spanner (17 mm)
2
Place the mounting bracket_front along with the fixed strong anchors and fix it
using fasteners.

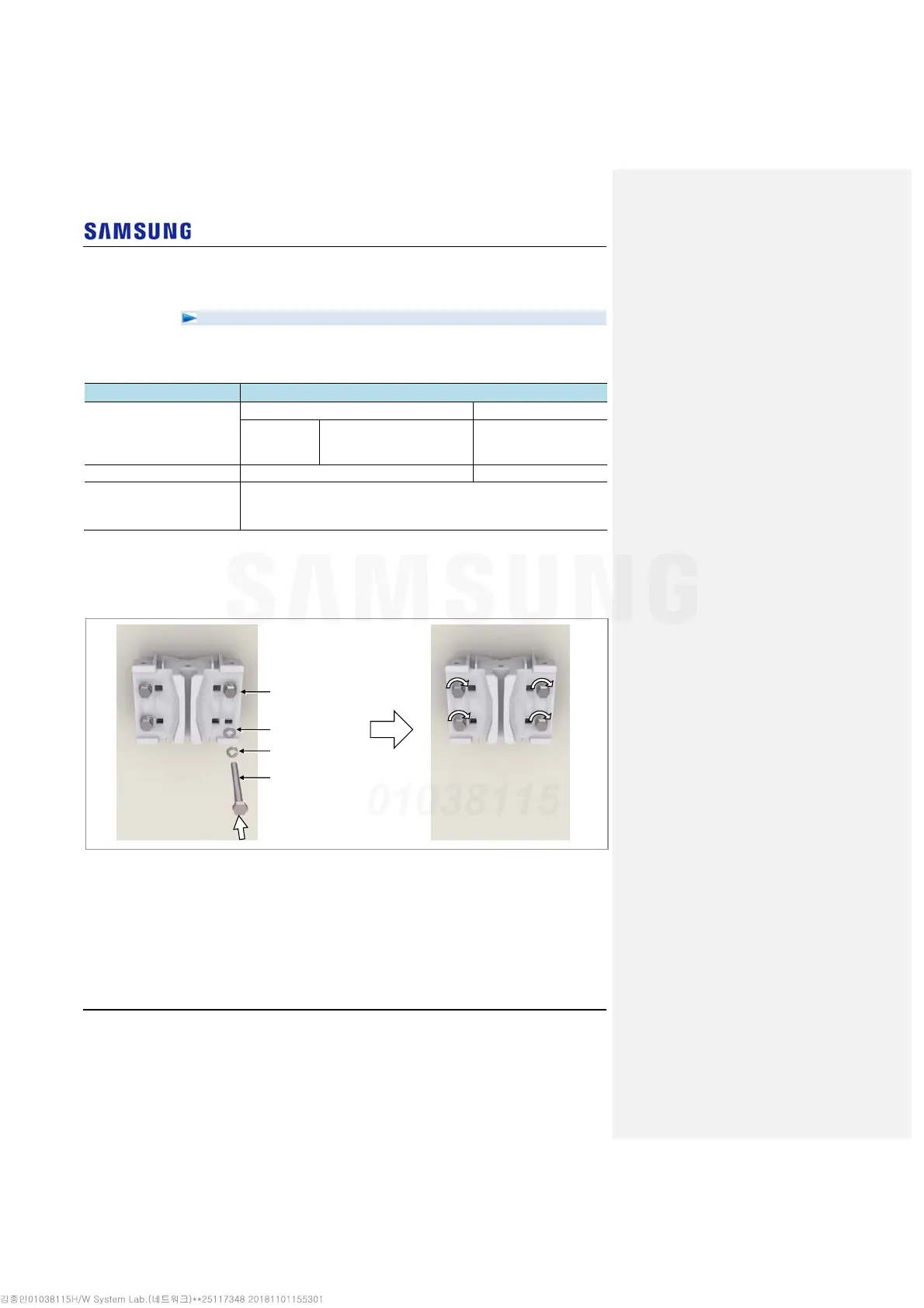

Figure 55. Fixing Mounting Bracket_1 Sector Wall Type
Mounting Bracket_Front
M10 Plain Washer
M10 Spring Washer
M10 Hex. Bolt
To Next Page
