Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 48
Copyright © 2018, All Rights Reserved.
3
Pass the stud bolt through the hole of the mounting bracket_front, fix the
fastening material, and fasten the other stud bolt to the mounting bracket_front
only.

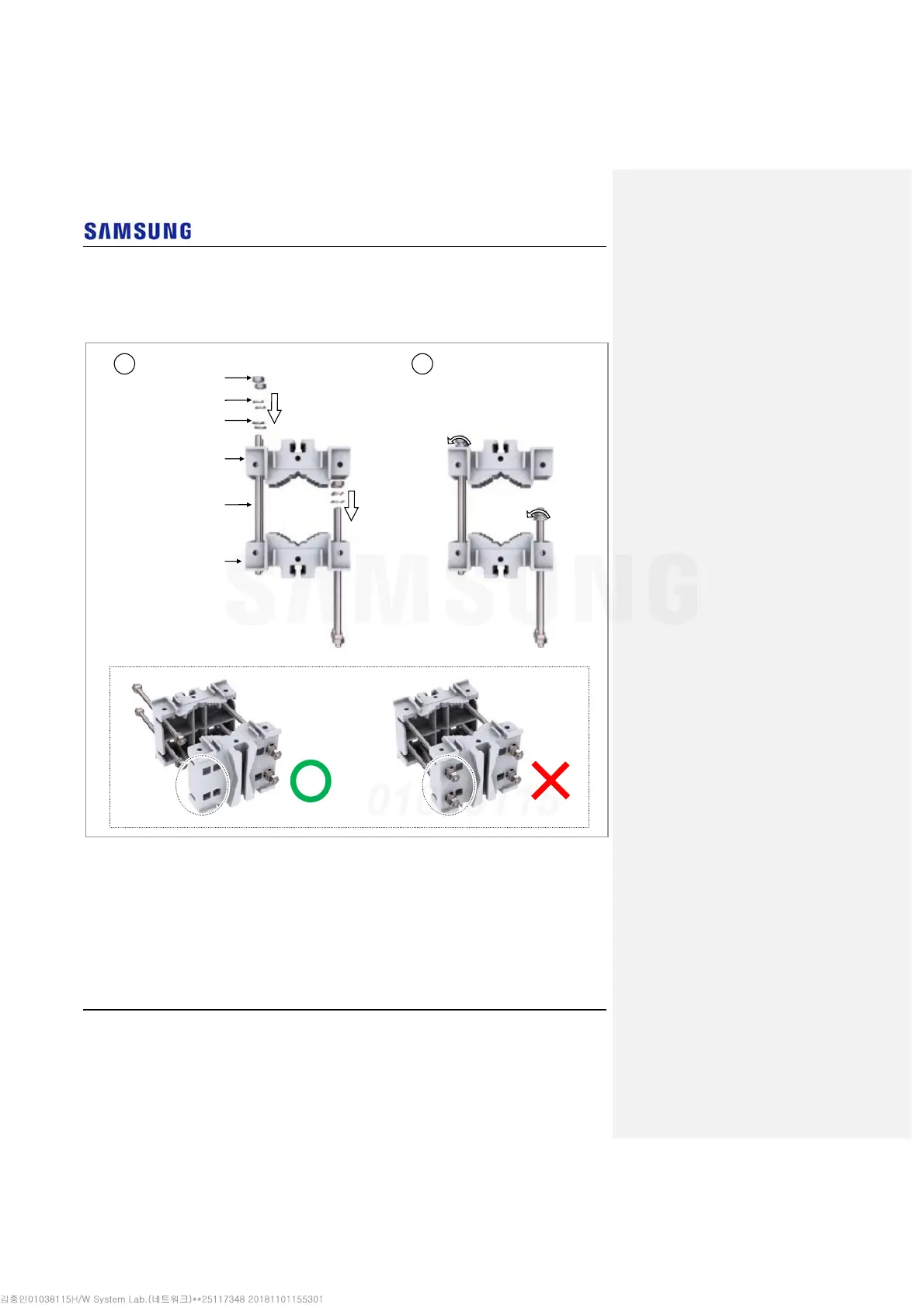

Figure 43. Assembling Mounting Bracket (2)
M10 Spring Washe
M10 Plain Washe
Mounting Bracket_Front
M10 Stud Bol
M10 Hex. Nut
Mounting Bracket_Front
1 2
To Next Page
