Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 98
Copyright © 2018, All Rights Reserved.
7

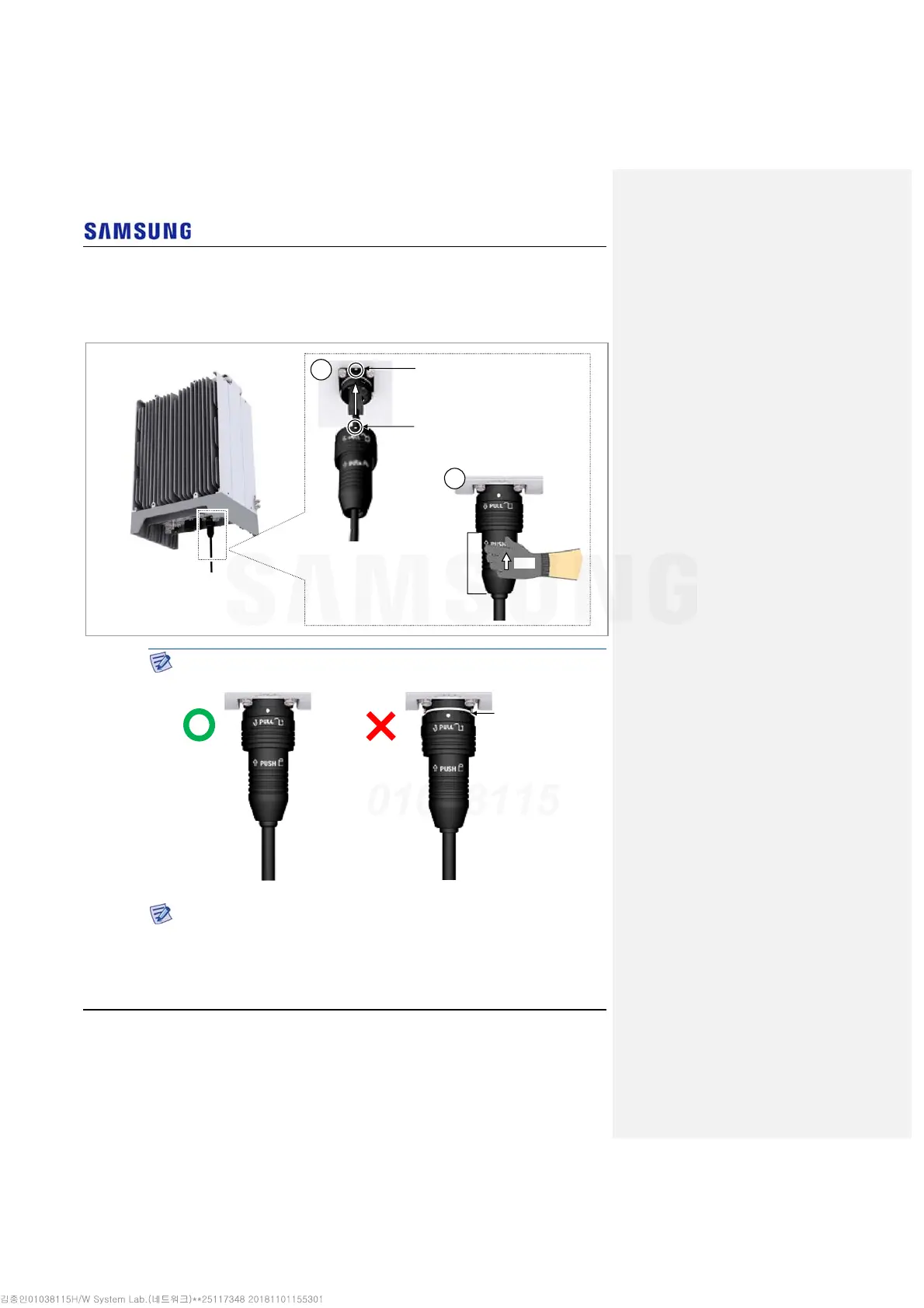

Insert the connector aligning the cable side connector’s white dot and system
side connector’s white dot. When inserting the connector, push the shell to
upper side.
Figure 89. Connecting UDA Cable (6)
When the connector is fastened tight, the white line on the system side connector
should be invisible (or hidden).
The method for connecting/disconnecting the UDA (RJ45) connector is as follows:
- For connecting the connector, push the shell to upper side.
- For disconnecting the connector, pull the coupling nut to lower side.
White Line
[White Line is invisible] [White Line is visible]
System side connector’s white dot
Cable side connector’s white dot
Shell
Push
1
2
