Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 46
Copyright © 2018, All Rights Reserved.
For 2 Sector (Back to Back Installation)
Assembling Mounting Bracket
To assemble Mounting Bracket
1
Make sure you have the following items:
Table 14. Parts and Tools for assembling Mounting Bracket
Category Description
Parts Mounting Bracket_Front 2 EA
Fasteners M10 × L200 Stud Bolt Assembly
M10 Plain Washer
M10 Spring Washer
M10 Hex. Nut
4 EA
4 EA
4 EA
4 EA
Working Tools
Spanner (17 mm)

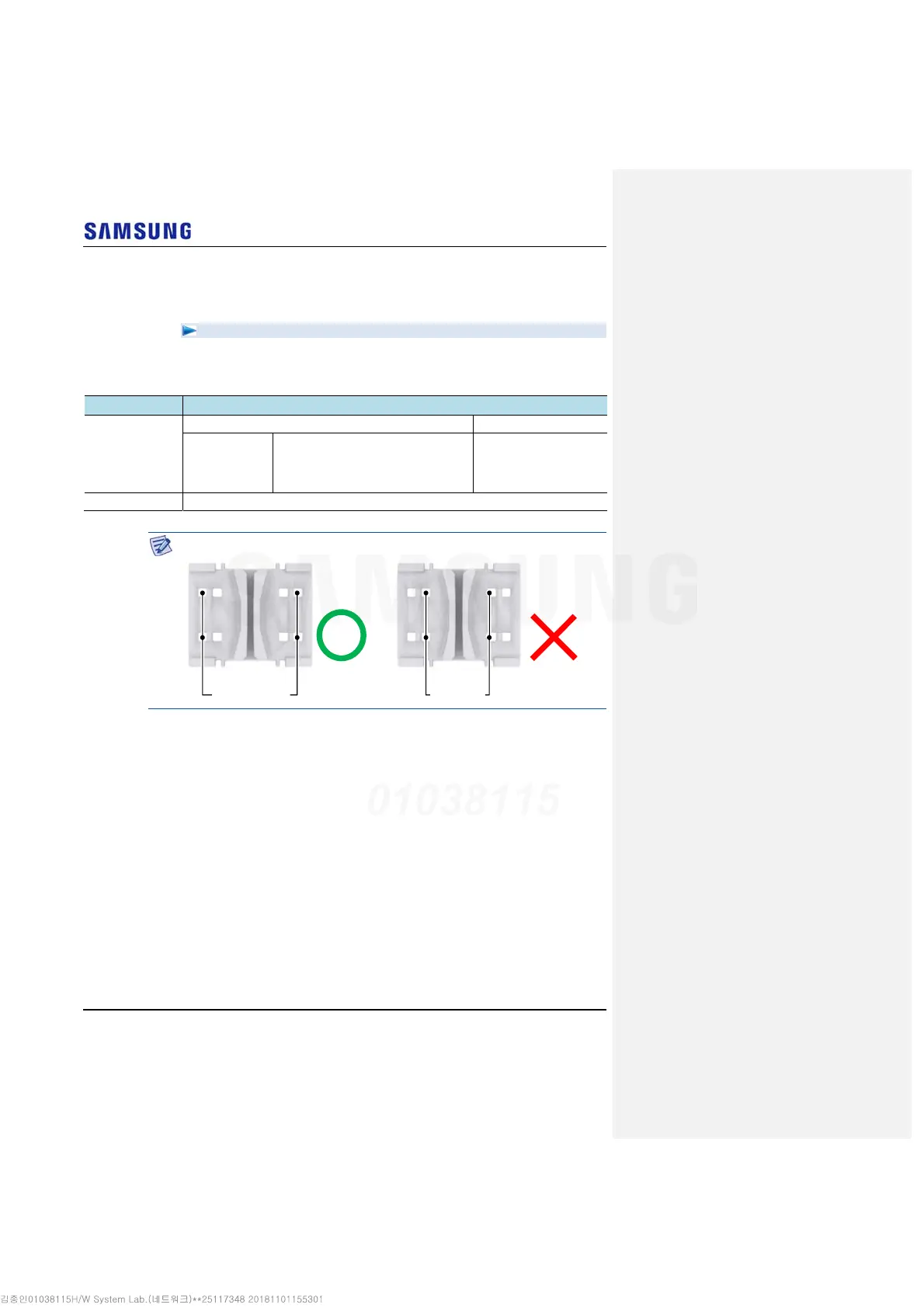

When fixing pole, fix it using the outside hole of mounting bracket_front.
Inside holes
Outside holes
To Next Page
