Samsung RF4402d-D1A - RRH External Interface

Confidential
Chapter 1 Before Installation
RF4402d Series Installation Manual v1.0 2
Copyright © 2018, All Rights Reserved.
RRH External Interface
The external interface structure of RRH is as follows.

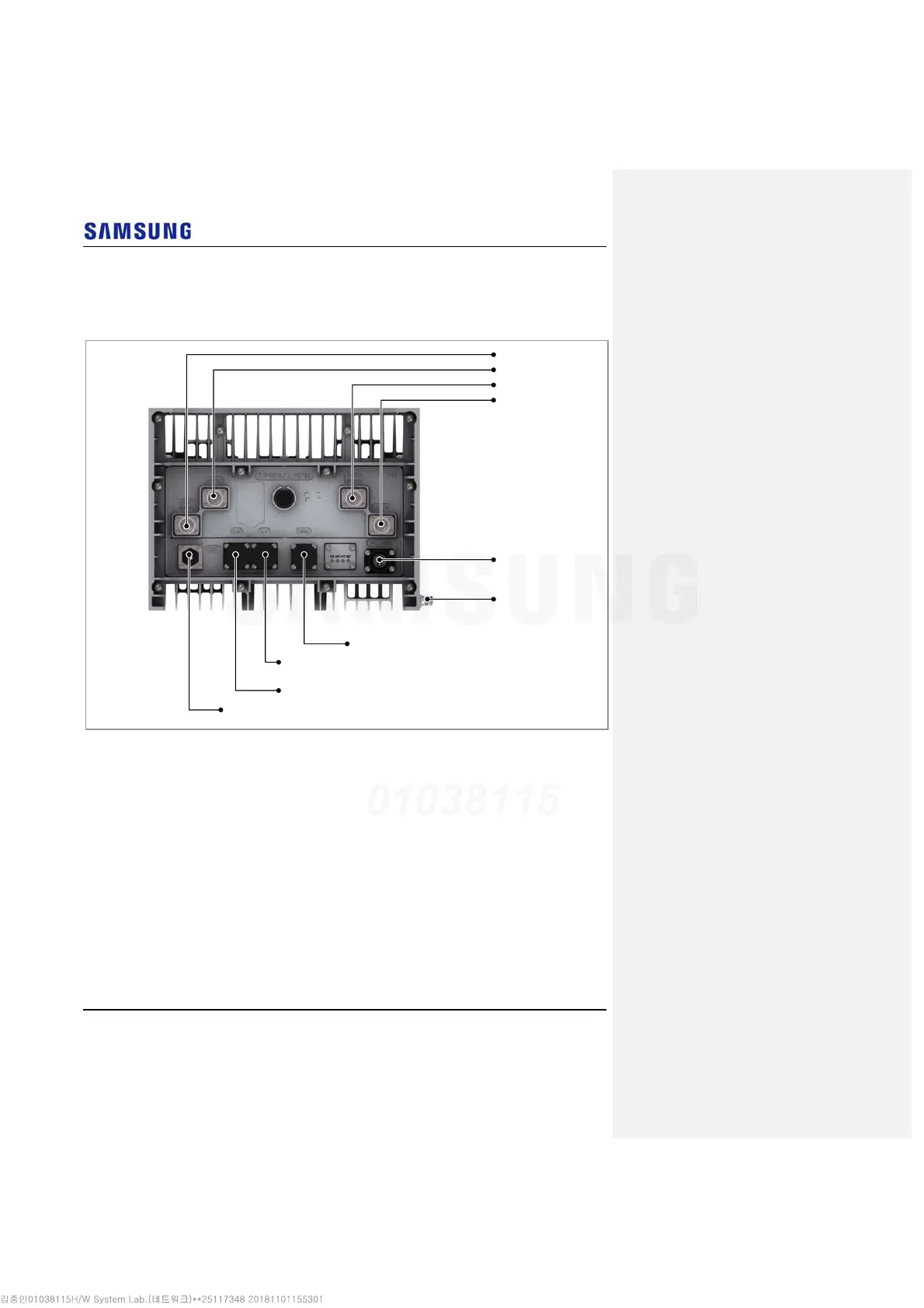

Figure 2. RRH External Interface
A
NT 4
A
NT 3 (Bias-T)
A
NT 2
A
NT 1 (Bias–T)
DC_PWR
Ground Terminal
UDA
L1
L0
RET
