Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 45
Copyright © 2018, All Rights Reserved.
2

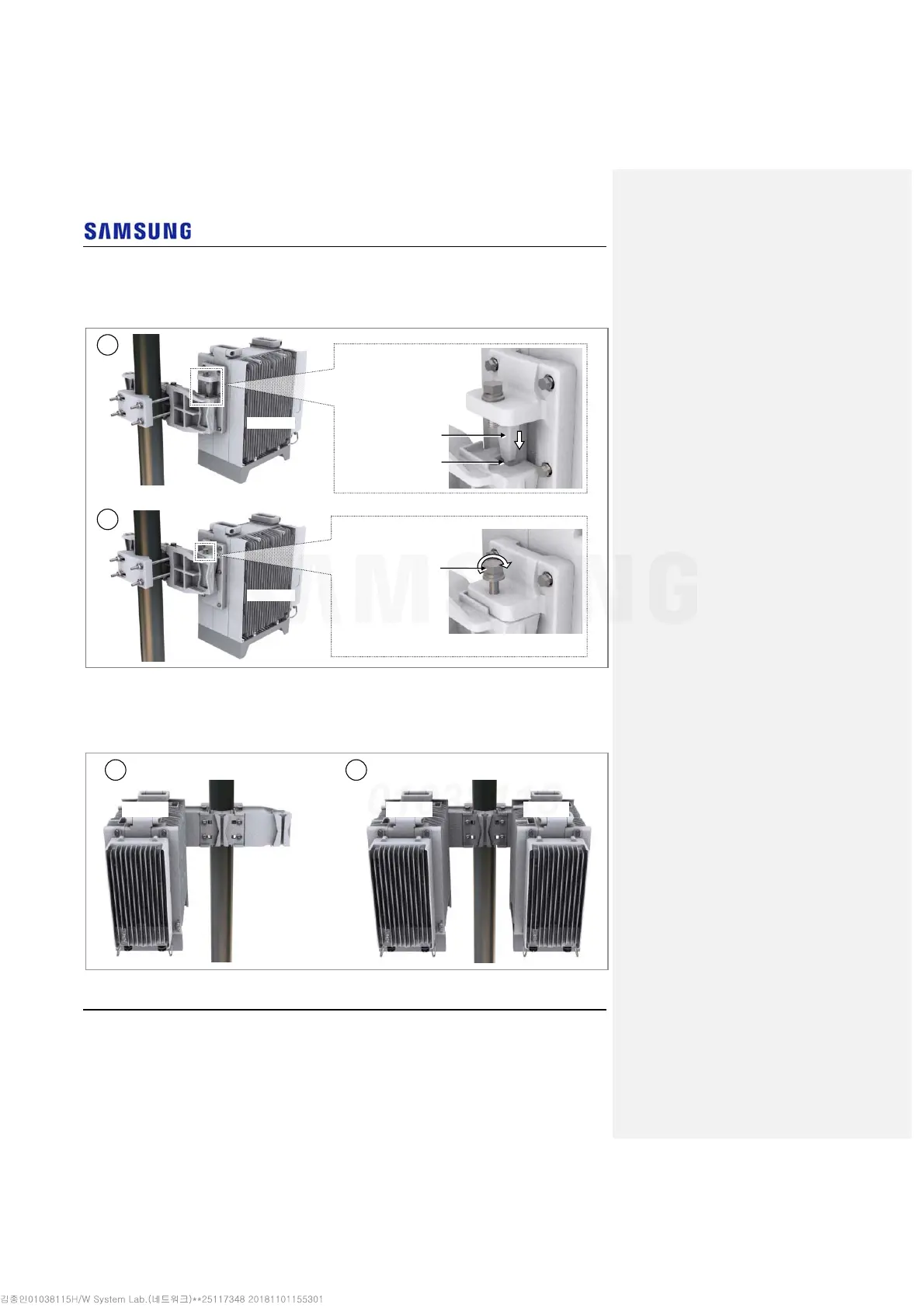

Hang the unit bracket hook of RRH-0 side on the mounting bracket_front
hook’s groove and fix it using fasteners.
Figure 40. Fixing RRH_2 Sector Pole Type (Side by Side Installation 1)
3
Fix RRH-1 in the same way as the RRH-0.
Figure 41. Fixing RRH_2 Sector Pole Type (Side by Side Installation 2)
1 2
[RRH-0] [RRH-0] [RRH-1]
[RRH-0]
[RRH-0]
M10 Hex. Bolt
(washer assembly)
Unit Bracket Hook
Mounting Bracket_Fron
Hook Groove
1
2
