Samsung RF4402d-D1A - Fixing AC;DC Convertor

Confidential
Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 23
Copyright © 2018, All Rights Reserved.

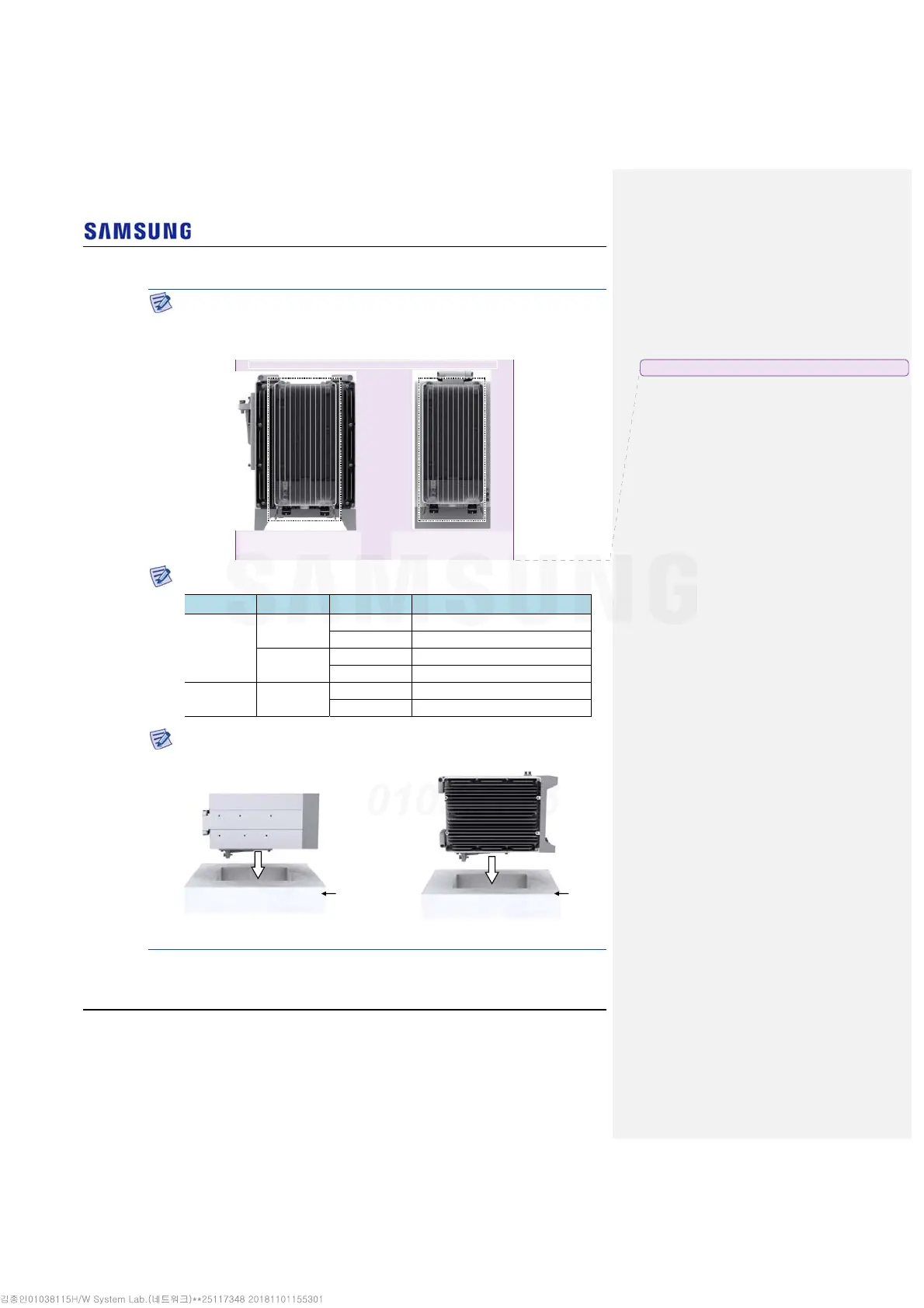

Fixing AC/DC Convertor
There are two ways to fix a AC/DC convertor to the RRH. One is fixing a AC/DC
convertor to the front side of RRH (Front installation). The other is fixing a
AC/DC convertor to the side of RRH (Side installation). These are the same for the
pole type and wall type installation procedures.
설치 타입 별 AC/DC convertor 고정 위치는 다음과 같다.
Unit bracket 보호를 위해 AC/DC convertor 고정 전 바닥에 PE 폼을 깔고
작업한다.
AC/DC Convertor
Front Installation
AC/DC Convertor
Side Installation
PE 폼
PE 폼
설치 환경 Sector 설치 타입 AC/DC Convertor 고정 위치
Pole 1 Sector Standard RRH Front Side
Side RRH Front Side
2 Sector Side by Side RRH Right Side
Back to Back RRH Front Side
Wall 1 Sector Standard RRH Front Side
Side RRH Front Side
AC/DC Convertor
Front Installation
AC/DC Convertor
Side Installation
메모 포함[H4]: There is no ACDC bracket in the figures.
