Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 40
Copyright © 2018, All Rights Reserved.
Fixing Mounting Bracket Assembly
The way to fix 1 Sector mounting bracket assembly is as follows:
To fix Mounting Bracket Assembly_2 Sector Pole Type
1
Make sure you have the following items:
Table 12. Parts and Tools for fixing Mounting Bracket Assembly_2 Sector Pole Type (Side by Side
Installation)
Category Description
Parts 1 Sector Mounting Bracket Assembly 1 Set
Extension Mounting Bracket 2 EA
Fastener M10 × L25 Hex. Bolt
(washer assembly)
2 EA
Recommended Torque Value M10 Hex. Nut 217 lbfin
Working Tools
Torque Wrench (100~400 lbf·in)
Torque Wrench Spanner head (apply Hexagon. Head: 17 mm)
Spanner (17 mm)
Level
2
Place a mounting bracket assembly to the pole.

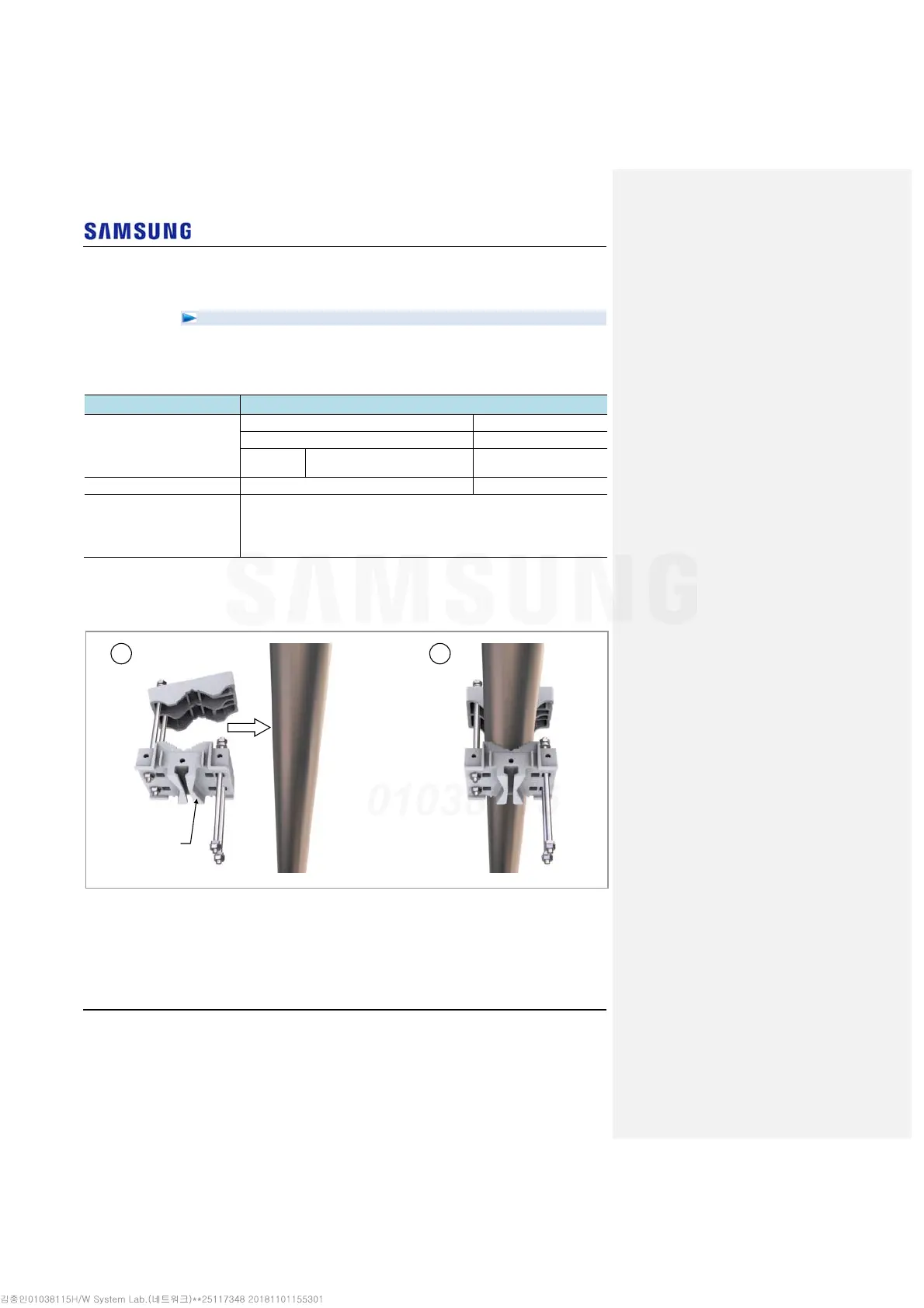

Figure 34. Fixing Mounting Bracket Assembly_2 Sector Pole Type (Side by Side Installation 1)
1 2
Mounting Bracket
Assembly
To Next Page
