Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 100
Copyright © 2018, All Rights Reserved.
Before fitting the RET connector, make sure to align the female connector’s hole
with the male connector’s pin first.
2 Install an RET cable from the RF Antenna to the RRH RET port.

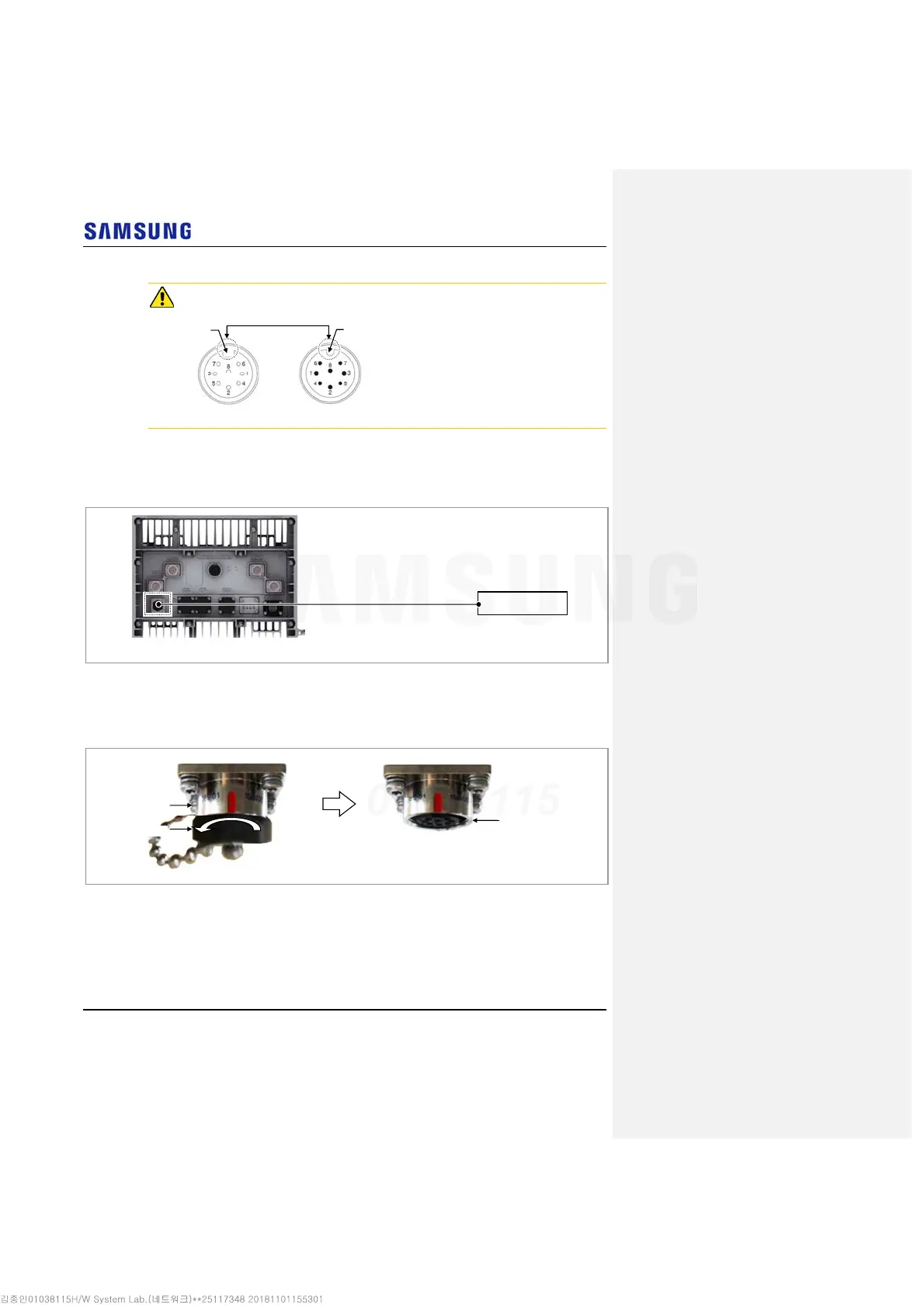

Figure 90. Connecting RET Cable (1)
3 Separate the cap from the system side connector (RET port).
Figure 91. Connecting RET Cable (2)
RET Cap
RET Port
RET Port (Female)
[Bottom View]
RF Antenna
RET Cable
[Male Connector]
[Female Connector]
Hole
Pin
