Confidential
Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 59
Copyright © 2018, All Rights Reserved.
Fixing RRH
To fix RRH_1 Sector Wall Type (Standard & Side Installation)
1
Make sure you have the following items:
Table 21. Fixing RRH_1 Sector Wall Type (Standard & Side Installation)
Category Description
Parts M10 × L35 Hex. Bolt (washer assembly,
attached to the unit bracket)
1 EA
Recommended Torque Value M10 Hex. Bolt 217 lbfin
Working Tools
Torque Wrench (100~400 lbf·in)
Torque Wrench Spanner head (apply Hexagon Head: 17 mm)
Spanner (17 mm)
2
Hang the unit bracket hook of RRH side on the mounting bracket_front hook’s
groove and fix it using fasteners.

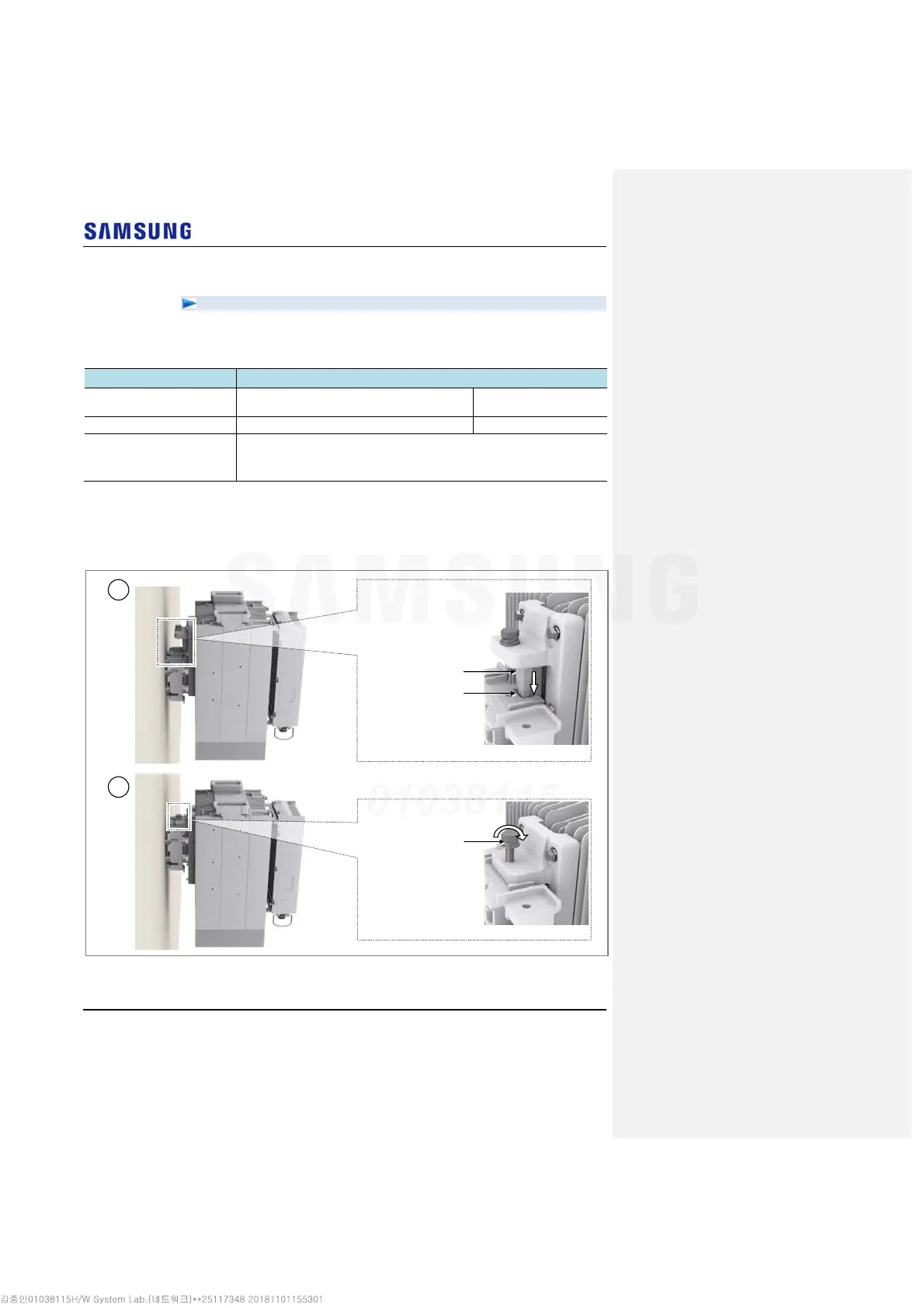

Figure 56. Fixing RRH_1 Sector Wall Type (Standard Installation)
1
2
M10 Hex. Bolt
(washer assembly)
Unit Bracket Hook
Mounting Bracket_Fron
Hook Groove
To Next Page
