Samsung RF4402d-D1A - Figure 31. Assembling Mounting Bracket (1)

Confidential
Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 37
Copyright © 2018, All Rights Reserved.
2 Insert stud bolts to the outside hole of mounting bracket_front.

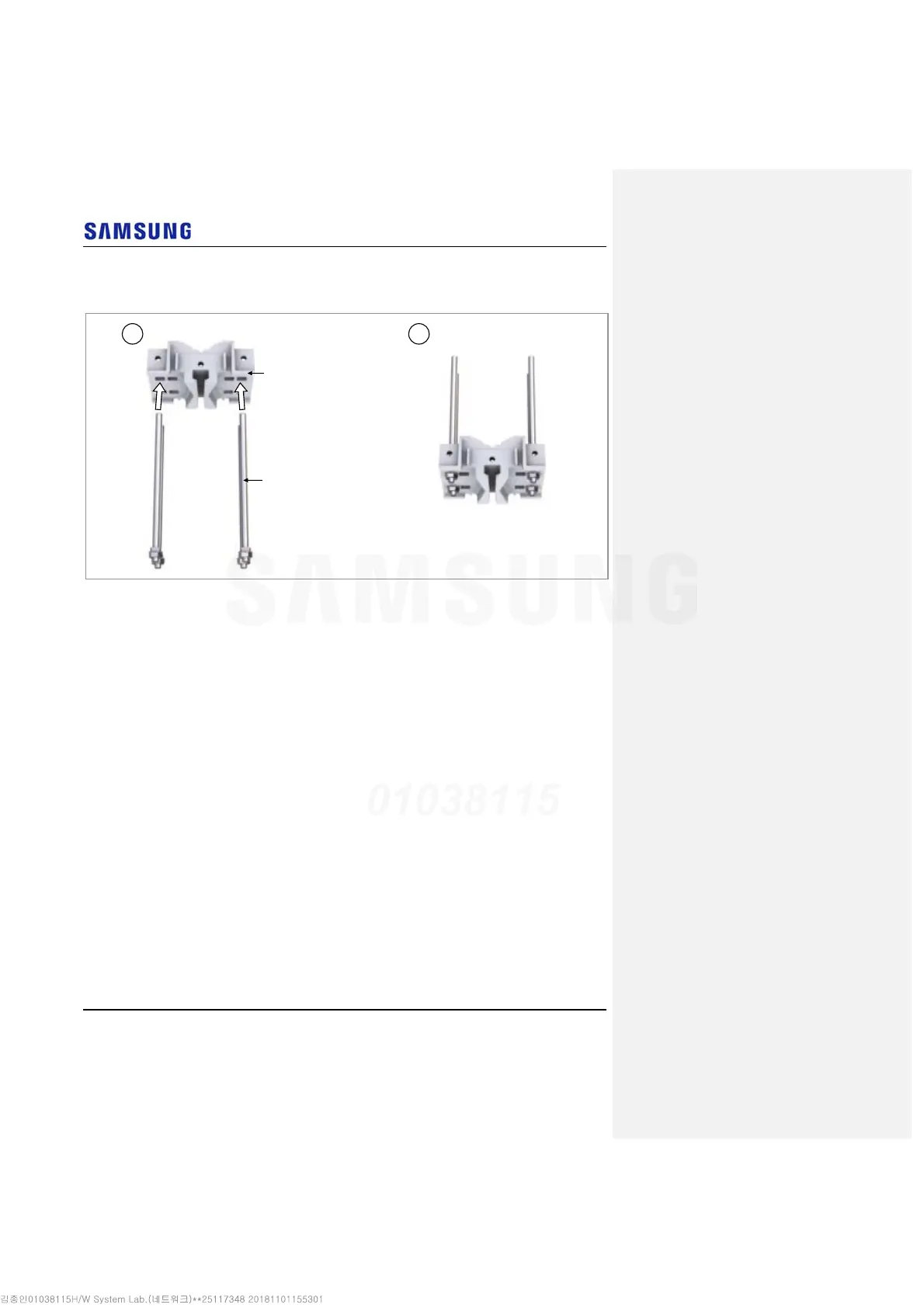

Figure 31. Assembling Mounting Bracket (1)
M10 Stud bolt Assembl
y
Mounting Bracket_Front
1 2
