Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 80
Copyright © 2018, All Rights Reserved.

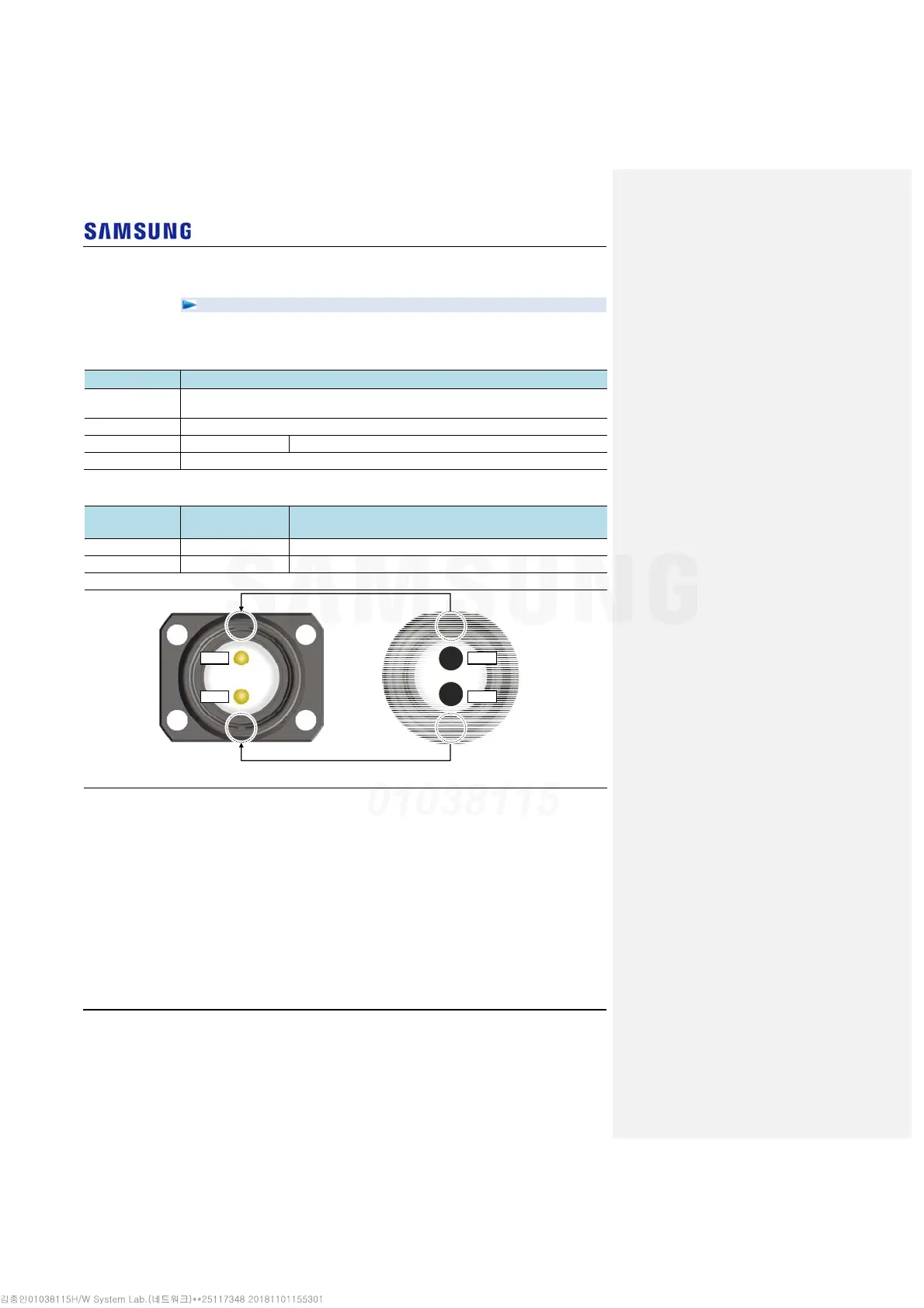

Connecting AC/DC Convertor Power Cable
To connect AC/DC Convertor DC Power cable
1
Make sure you have the following items:
Table 29. Parts and Tools for connecting AC/DC Convertor DC Power Cable
Category Description
Installation
Section
RRH Power Input Port ~ AC/DC Convertor DC power output Port
Cable 8 AWG × 2C
Bend Radius Operation: 8 × OD Installation: 12 × OD
Connector JONHON, Push Pull Type, CT48J-1502TSCBM-07
Table 30. AC/DC Convertor DC Power Cable Connector Pin Map
Power Connector
Pin No.
Description Color
Pin 1 -48 V DC White
Pin 2 RTN Black
* The color of the core wire can be changed according to the specification of the cable used.
[Cable side Connector]
[System side Connector]
Bump
Groove
Bump
Groove
Pin 1
Pin 2
Pin 1
Pin 2
