Samsung RF4402d-D1A - RRH Arrangement_2 Sector Pole Type Installation (Back to Back Installation); RRH Arrangement_2 Sector Pole Type Installation (Side by Side Installation)

Confidential
Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 14
Copyright © 2018, All Rights Reserved.

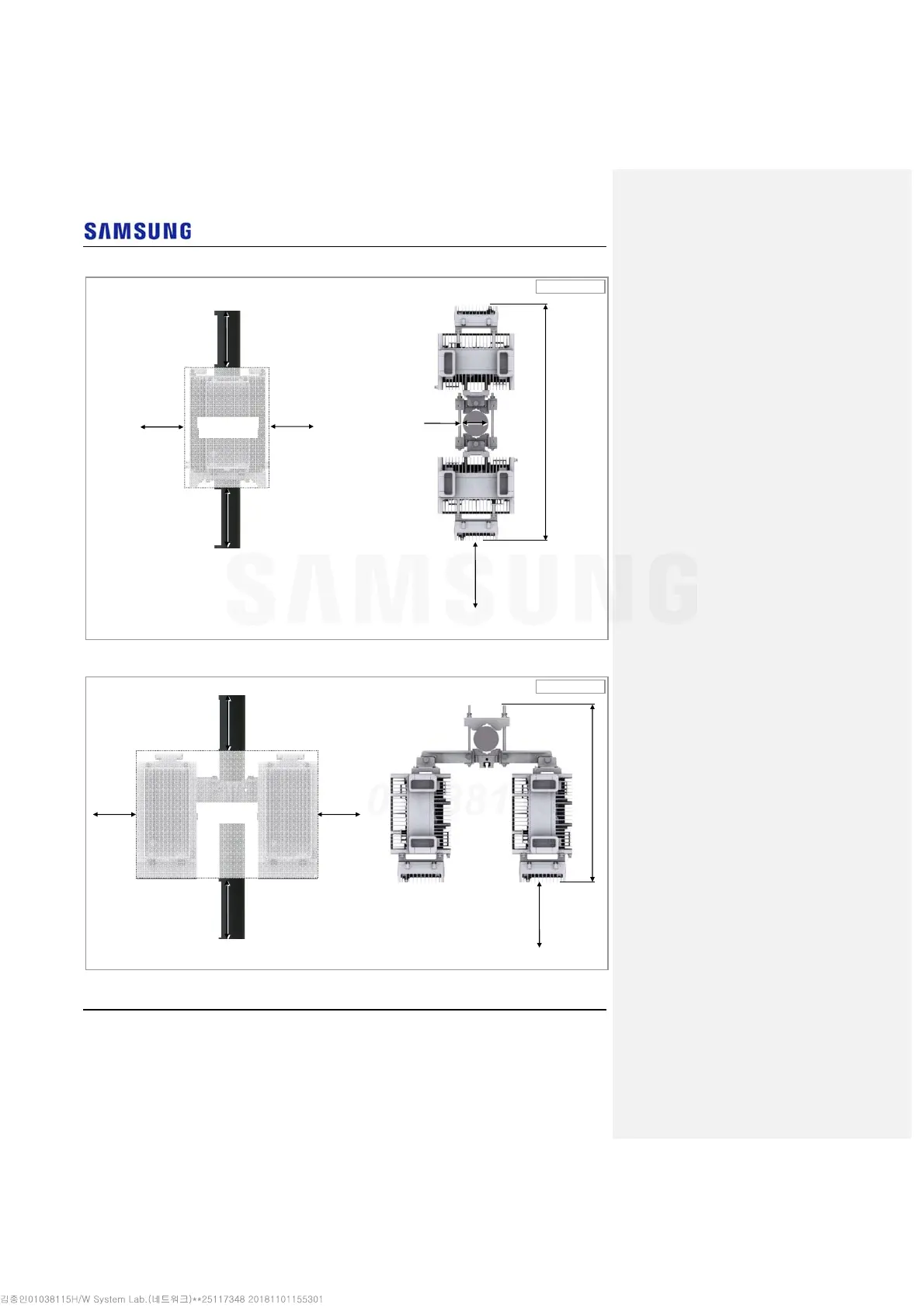

Figure 8. RRH Arrangement_2 Sector Pole Type Installation (Back to Back Installation)
Figure 9. RRH Arrangement_2 Sector Pole Type Installation (Side by Side Installation)
[Front View]
Unit: in. (mm)
[Top View]
≥ 12 (300)
≥ 16 (400)
≥ 8 (200)
26.22 (666)
≥ 32 (800)
≥ 8 (200)
W: 26.77 (680)
H: 18.74
(
476
)
[Front View]
Unit: in. (mm)
[Top View]
≥ 12 (300)
≥ 16 (400)
≥ 8 (200)
≥ 32 (800)
≥ 8 (200)
37.44 (951)
W: 11.81 (300)
H: 18.74
(
476
)
100
A
