Chapter 3 Connecting Cables
RF4402d Series Installation Manual v1.0 68
Copyright © 2018, All Rights Reserved.

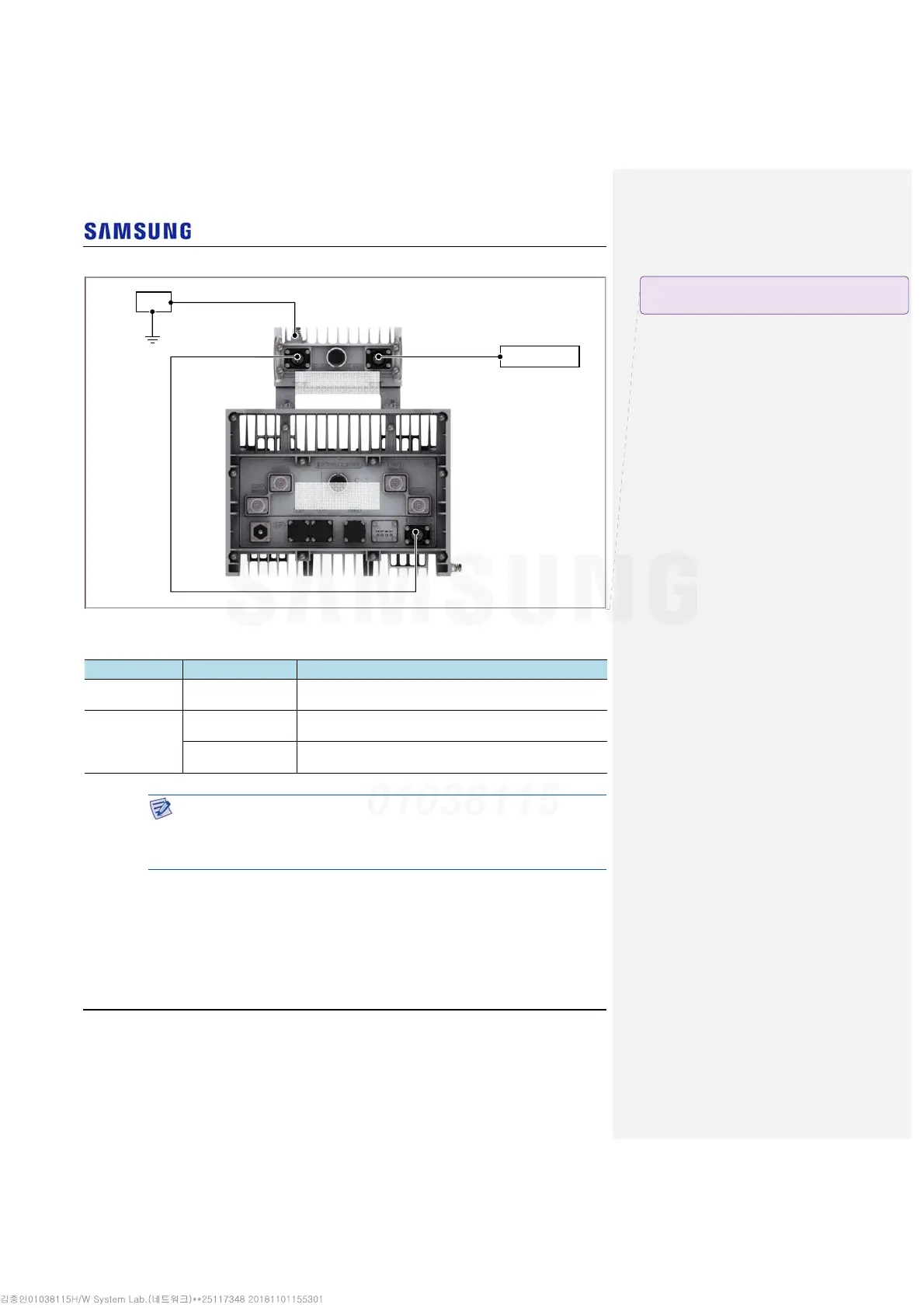

Figure 62. AC/DC Convertor Cable Diagram
Table 24. AC/DC Convertor Connection Cable
From To Cable
MGB AC/DC Convertor 1 Ground Cable
: 6 AWG × 1C
AC/DC Convertor AC Distributor 2 AC Power Cable
: 12 AWG × 3C
RRH 3 DC Power Cable
: 8 AWG × 2C
The inlet hole finishing method of external equipment must be progressed after
consultation with operation company in case of the cable connected to external
equipment. (Optical distribution box, etc)
- The Cable: AC Power Cable, CPRI Cable, UDA Cable
AC Distributor
1) Ground Cable
3) DC Power Cable
MGB
2) AC Power Cable
AC/DC Convertor
Bottom View
RRH
Bottom View
메모 포함[H6]: There should have one more ground cable
to connect AC/DC with RRH. Please check with PM SY.Kim
again.
