Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 51
Copyright © 2018, All Rights Reserved.

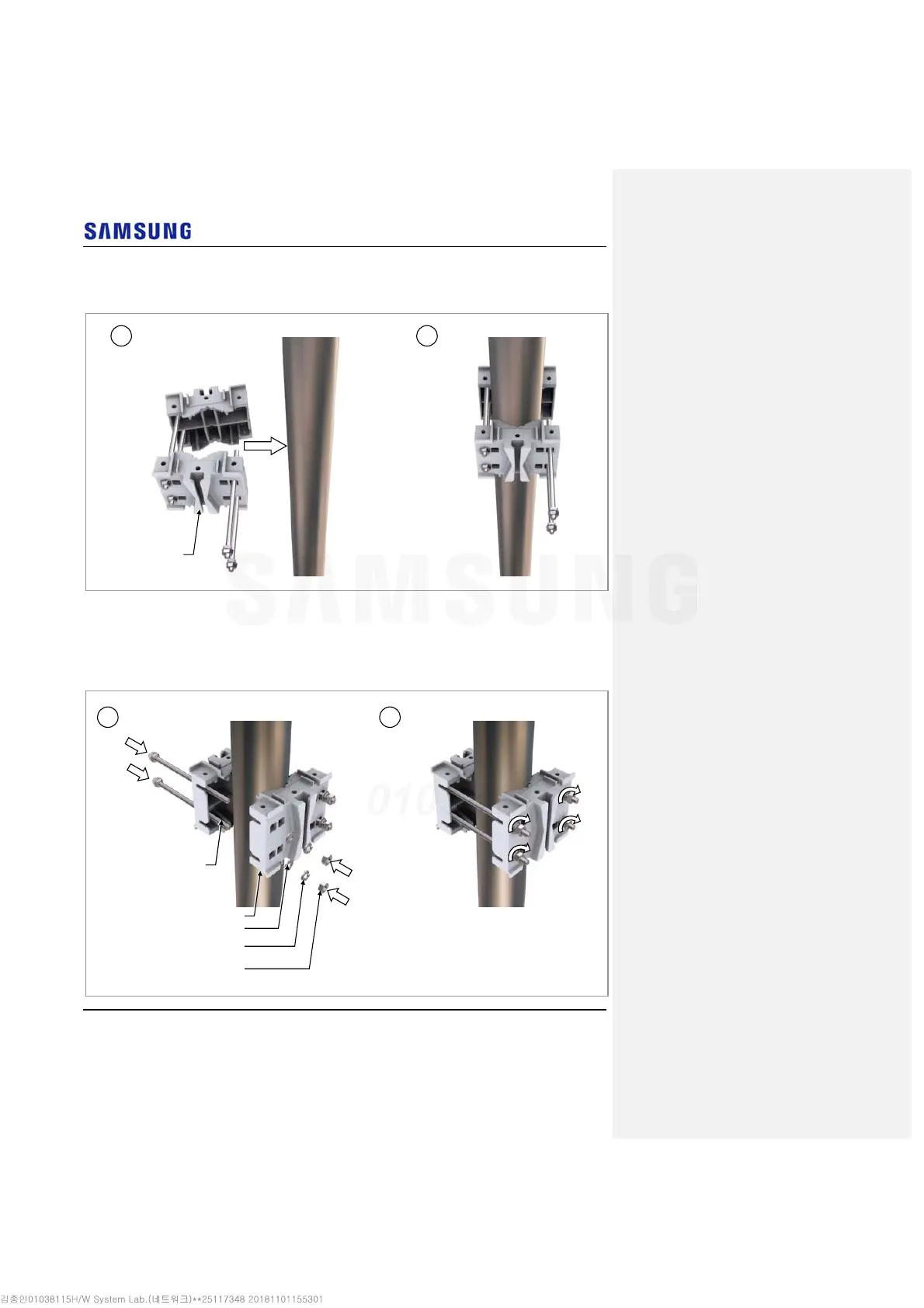

3 Place a mounting bracket assembly to the pole.
Figure 46. Fixing Mounting Bracket Assembly_2 Sector Pole Type (Back to Back Installation 2)
4 Pass a stud bolt through 2sector mounting bracket assembly_front hole and fix
mounting bracket assembly using fasteners.
Figure 47. Fixing Mounting Bracket Assembly_2 Sector Pole Type (Back to Back Installation 3)
1 2
Mounting Bracket_Front
M10 Plain Washe
r
M10 Spring Washe
r
M10 Hex. Nut
M10 Stud Bol
t
1 2
Mounting Bracket
Assembl
y
