Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 50
Copyright © 2018, All Rights Reserved.
Fixing Mounting Bracket Assembly
The way to fix 1 Sector mounting bracket assembly is as follows:
To fix Mounting Bracket Assembly_2 Sector Pole Type
1
Make sure you have the following items:
Table 15. Parts and Tools for fixing Mounting Bracket Assembly_2 Sector Pole Type (Back to Back
Installation)
Category Description
Parts 2 Sector(Back to Back Installation)
Mounting Bracket Assembly
1 Set
Recommended Torque Value M10 Hex. Nut 217 lbfin
Working Tools
Torque Wrench (100~400 lbf·in)
Torque Wrench Spanner head (apply Hexagon Head: 17 mm)
Spanner (17 mm)
Level
2
Separate inside fasteners of a mounting bracket assembly.

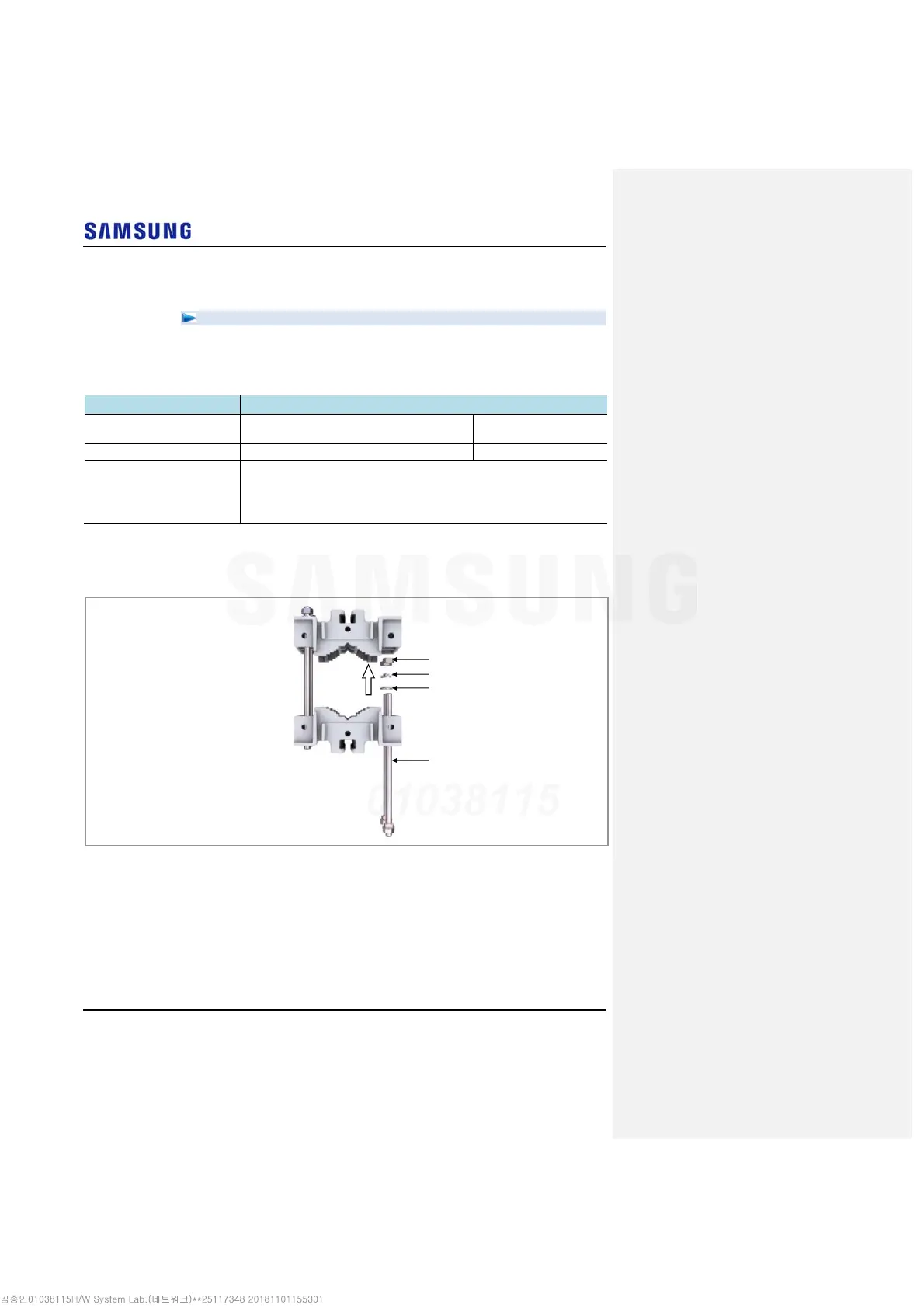

Figure 45. Fixing Mounting Bracket Assembly_2 Sector Pole Type (Back to Back Installation 1)
M10 Hex. Bolt
M10 Spring Washer
M10 Plain Washer
M10 Sutd Bolt
To Next Page
