Chapter 2 Installing System
RF4402d Series Installation Manual v1.0 21
Copyright © 2018, All Rights Reserved.
To fix Unit Bracket_Side Installation
1
Make sure that you have the following items:
Table 5. Parts and Tools for fixing Unit Bracket_Standard Installation
Category Description
Parts Unit bracket 1 EA/RRH
Fasteners M6 × L35 Hex. Bolt
(washer assembly)
6 EA/RRH
Recommended Torque Value M6 Hex. Bolt 43 lbfin
Working Tools
Torque Wrench (10~50 lbfin)
Torque Wrench Spanner head (apply Hexagon. Head: 10 mm)
Spanner (10 mm)
2
Place a unit bracket to the RRH left.

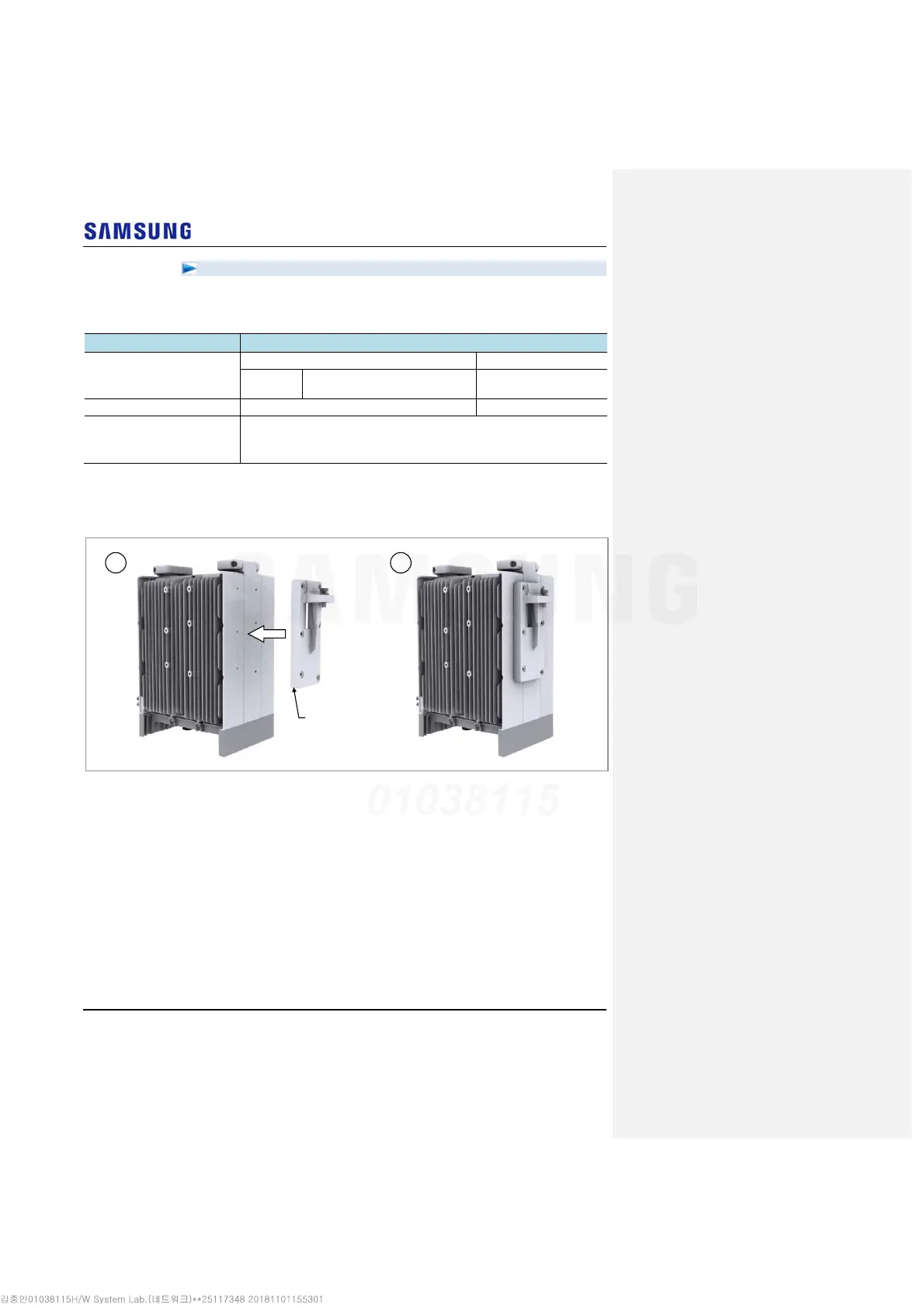

Figure 15. Fixing Unit Bracket_Side Installation (1)
1 2
Unit
Bracket
To Next Page
