Check the level of mounting bracket assembly on a pole and adjust the level.

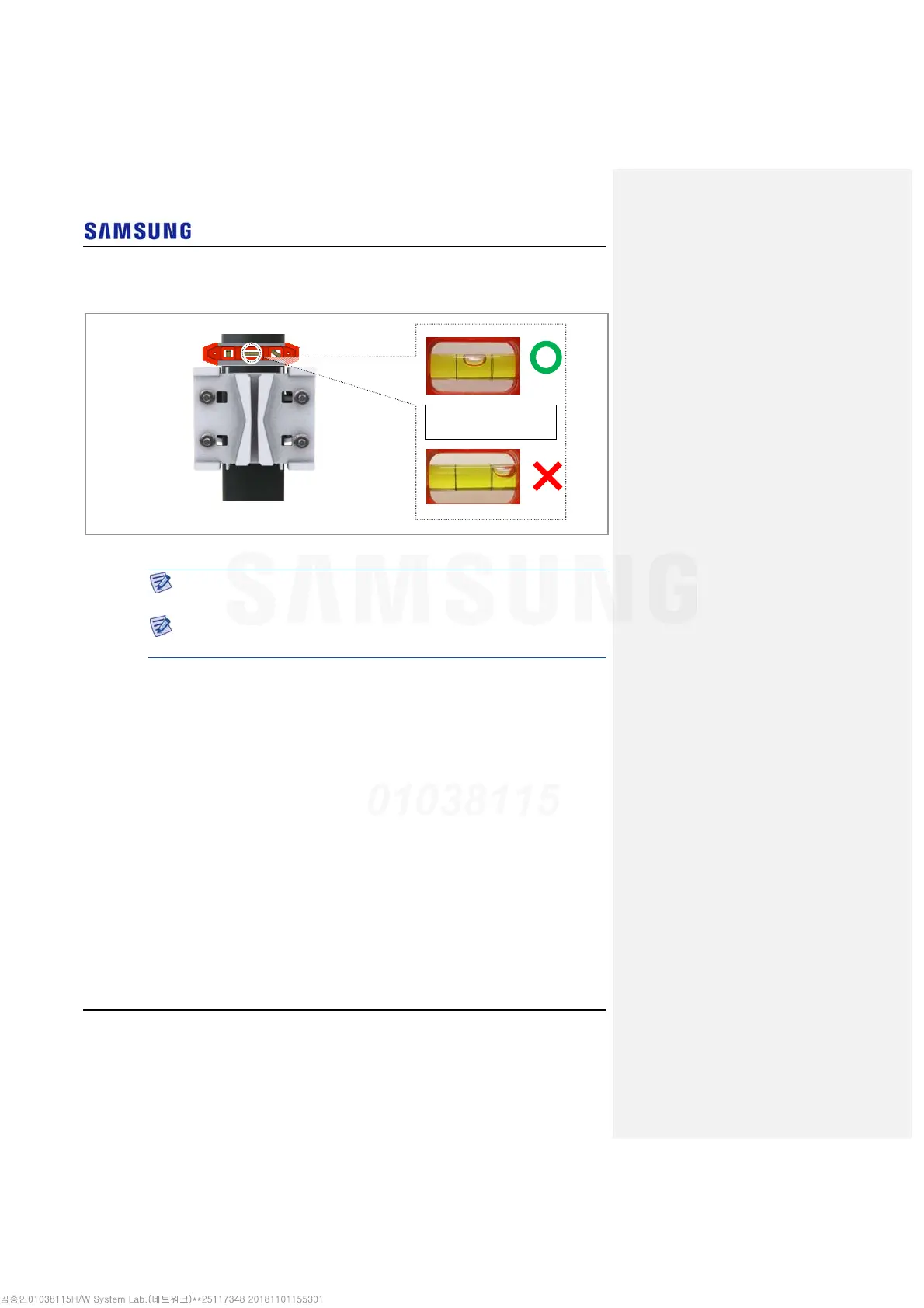

Figure 48. Levelling Mounting Bracket Assembly_2 Sector Pole Type (Back to Back Installation 3)
When fixing the pole mounting bracket assembly on a pole, be sure to check the
level of bracket. After finishing the installation, you can adjust the level minutely.
When occurring poor levelling, adjust the position of fasteners used to fix the
Mounting bracket assembly or its levelling status.
If it is level, the bubble of the
spirit level is positioned at the
center of both lines.
[2 Sector(Back to Back) Mounting Bracket Assembly]
