Sartorius Cubis Series User Manual

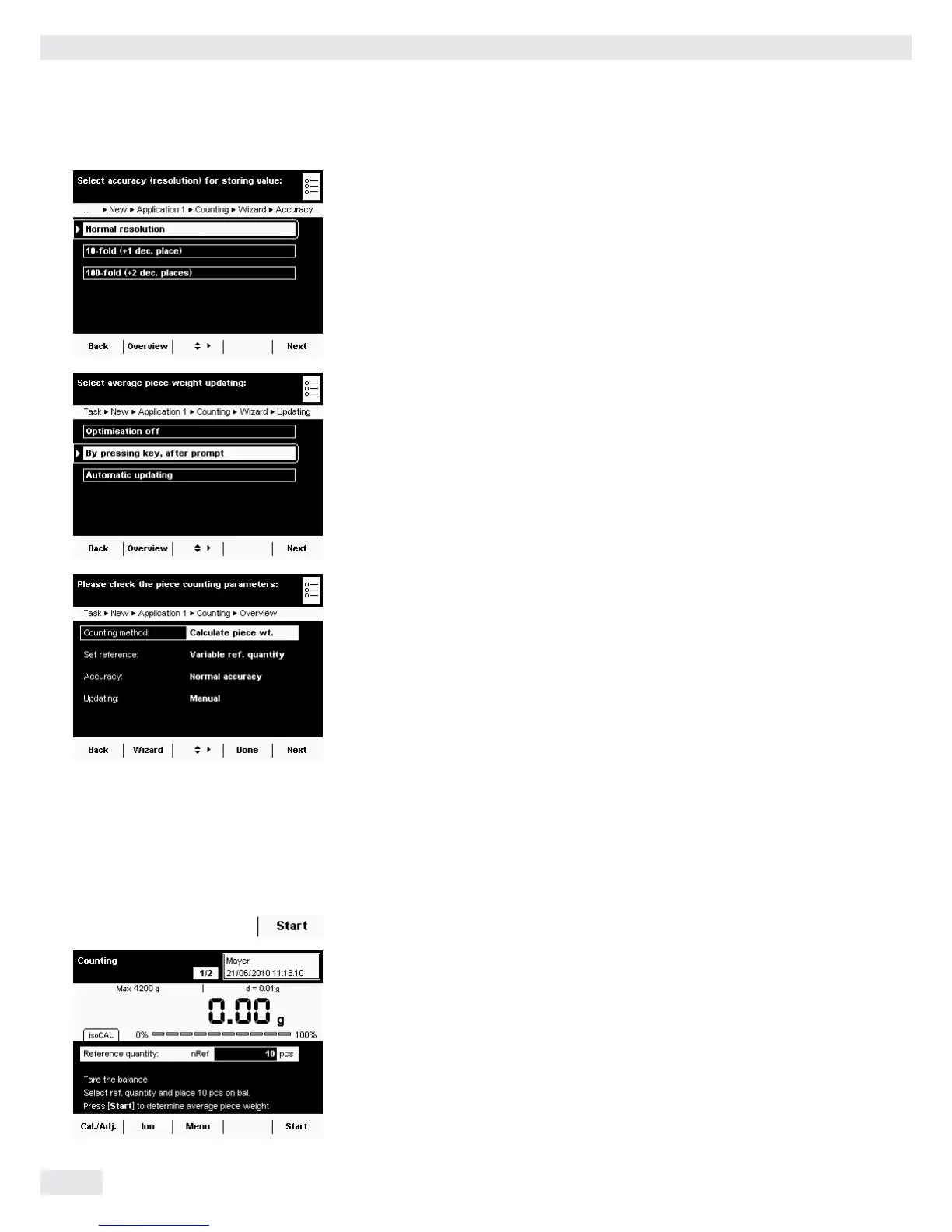

t Define the accuracy to be used for the weight value.
*Normal resolution: As displayed
10-fold (+ 1 dec. place): With one decimal place more than on the display
100-fold (+2 dec. places): With two decimal places more than on the display
Only with calculation of reference piece weight:
t Define whether or not the piece weight should be updated when counting.
Optimization off
*By pressing key, after prompt
Automatic updating
y An overview of all settings is displayed.
t Check all settings and change as required.
y A message asks whether you would like to add another application.
t If required, select additional applications to be combined.
y Now you will be prompted to configure the weighing and printing functions.
t Check all settings and change as required.
t Enter a short name and a description for the new task.
t To save the new task, select Save.
Executing a Task:
Parts Counting with Reference Piece Weight Calculation
D t If you haven’t already done so, go to Application Management.
y The task selection is displayed.
t Select the desired task.
or
t If the desired task is already marked, select Start.
y The last used reference piece quantity nRef is displayed.
t If you are working with a variable reference piece quantity, you must enter
or change this now.
t Place this exact amount (nRef) of the objects to be counted on the
weighing pan.
Parts Counting
106 Cubis MSU User Manual

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
