Sartorius Cubis Series User Manual

Assembly
Installing the Analytical Draft Shield; Balance Assembly
(Draft Shield Identification: DA, DI, and DU)

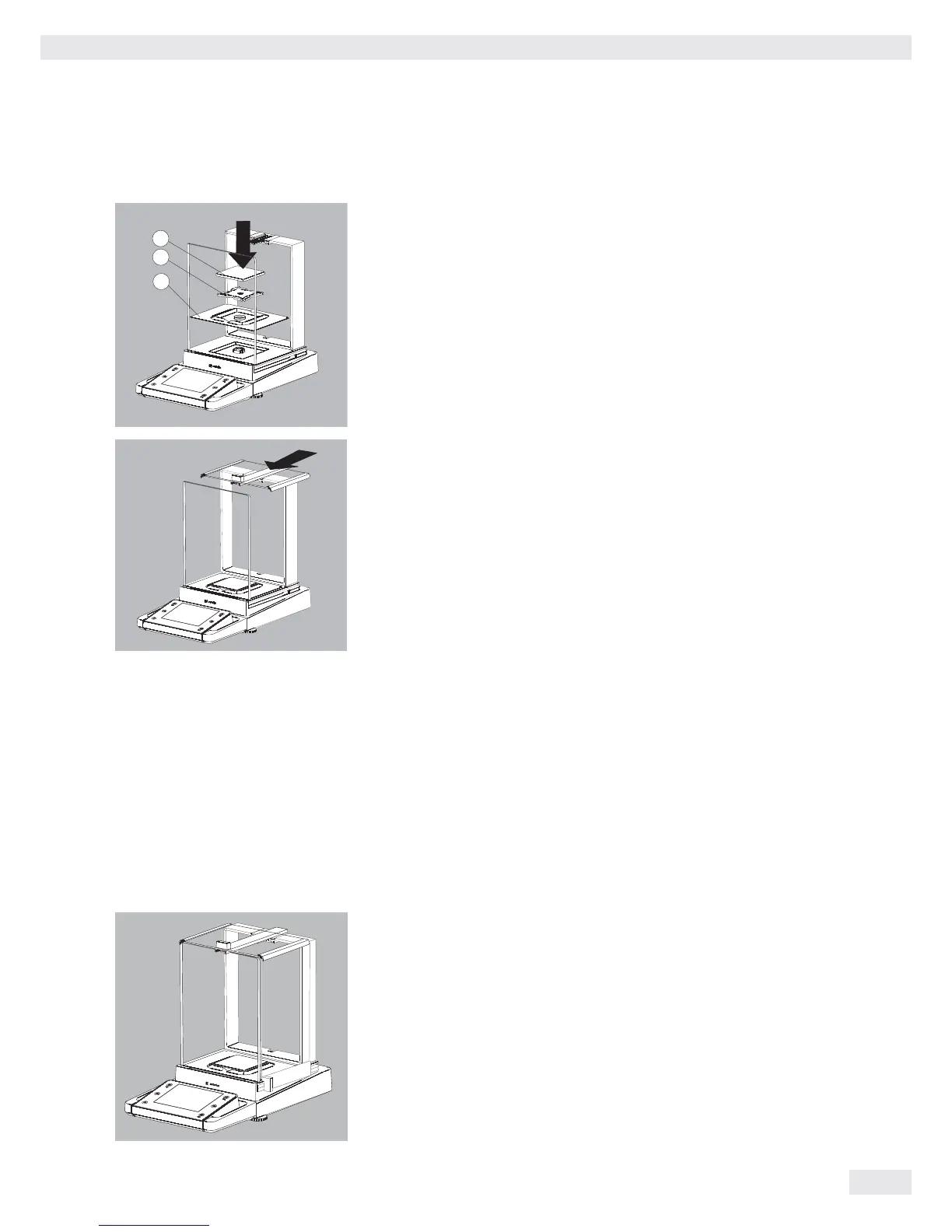

t Fit parts onto the balance as shown in the picture.
1. Shield plate
2. Pan support (not for MSx225.../MSx125... models)
3. Weighing pan
t Slide the upper draft shield panel into the guide rails from the rear.
t Slide the side draft shield panels into the guide rails from the rear.
Make sure the panels are fully inserted into the upper and lower
guide rails.
t Slide the panels in until they snap into place.
1. Right draft shield panel
2. Left draft shield panel
y This completes the balance assembly.
Cubis MSU User Manual 11
Getting Started
2
1
3

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
