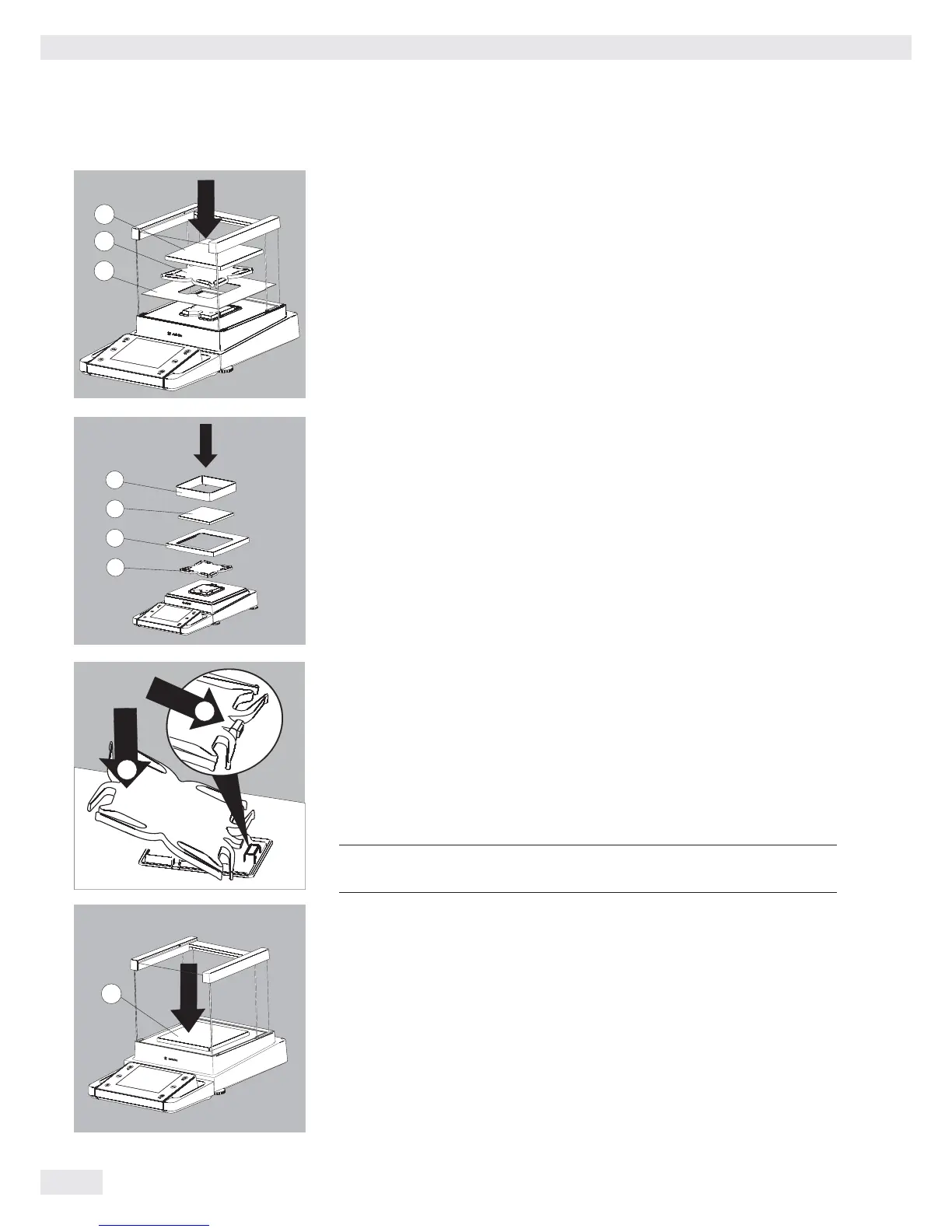

Installing the Draft Shield on Milligram Balances, Balance Assembly
(Draft Shield Identification: DE)
t Fit parts onto the balance as shown in the picture.
1. Shield plate
2. Pan support
3. Weighing pan
Assembly of Milligram Balances without Glass Draft Shield (DR Option):
Balance Assembly
t Fit all components listed below onto the balance in the order given:
1. Pan support (see also next section)
2. Shield plate
3. Weighing pan
4. Draft shield frame
t First insert the shield plate.
t Make sure the pin on the pan support is facing toward the front, and slide
it under the clip on the pan retainer.
1. Insert the pan support.
t After inserting the pan support, press it down against the shield plate
so that it lies flat.
2. Press down on pan support.
3
Exercise caution to avoid pinching or crushing fingers.
t Place the weighing pan on the pan support.
3. Weighing pan
12 Cubis MSU User Manual
