Sartorius Cubis Series User Manual

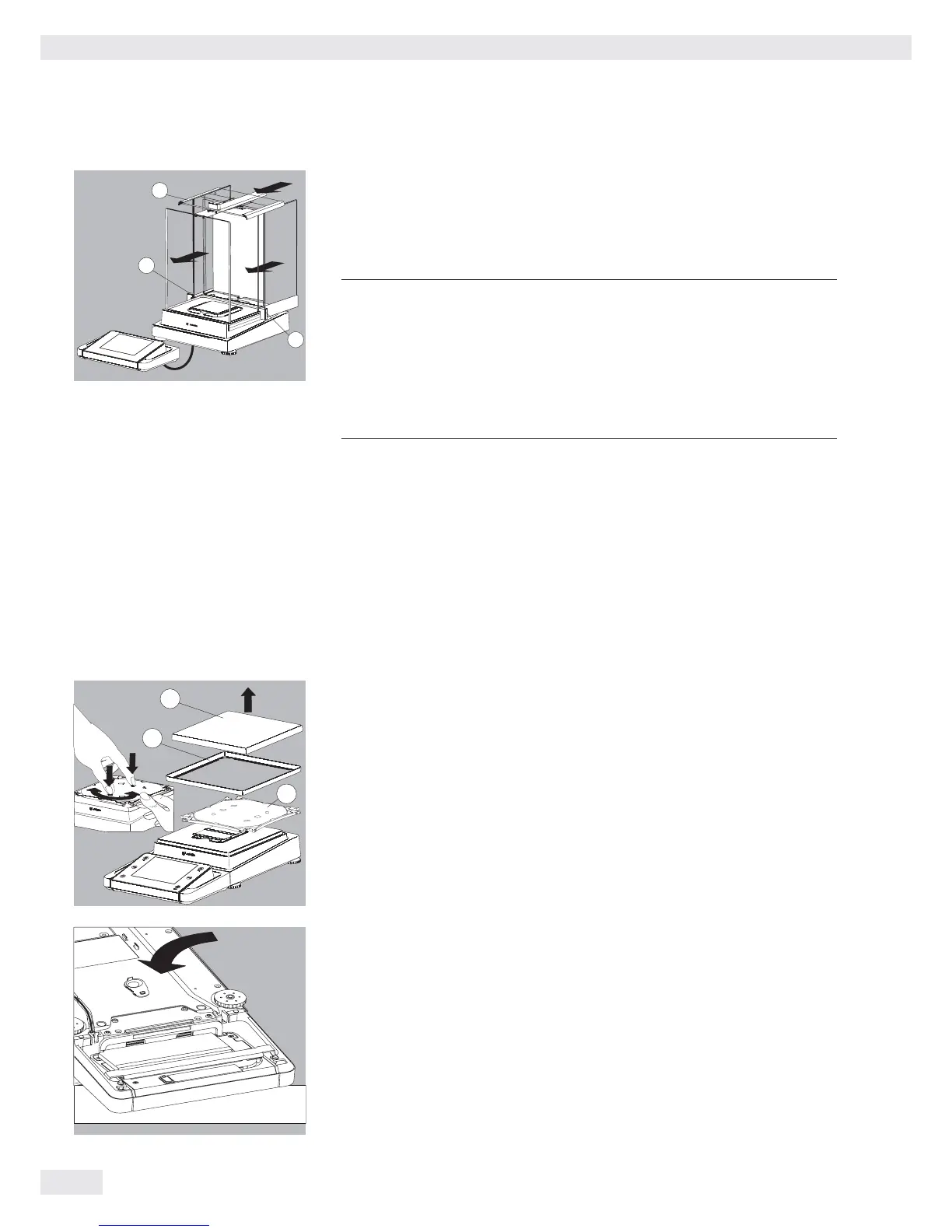

t Replace the upper and side shield panel.
1. Upper draft shield panel
2. Right draft shield panel
3. Left draft shield panel
t Level the balance.
h
Leveling the balance compensates for slant or unevenness at the place
of installation. The balance must be perfectly horizontal to ensure
consistent, reproducible weighing results. All models are equipped with
an electronic tilt angle detection feature.
If the balance is not level, the balance issues an alert (MSA and MSU
models, see brief instructions). The display shows a graphical representa-
tion of a level indicator and text prompts that guide the user through
the leveling process.
t The balance is leveled using both front leveling feet.
t Turn both back leveling feet (only for models with back leveling feet).
t Turn the two front feet as shown in the illustration until the air bubble
is centered within the circle of the level indicator.
y Normally, several leveling steps are required.
t Turn both back leveling feet until they touch the setup surface
(only for models with back leveling feet).
Removing the Display and Control Unit for Models without a Draft Shield
t Carefully remove all parts as shown in the illustration.
1. Weighing pan
2. Shield plate/draft shield
3. Pan support
t Keep all parts in a safe place.
t Turn over the balance and place on a soft surface.
22 Cubis MSU User Manual
Getting Started
3
2
1
2
1
3

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
