Sartorius Cubis Series User Manual

Task Management (TASK)
58 Cubis MSU User Manual

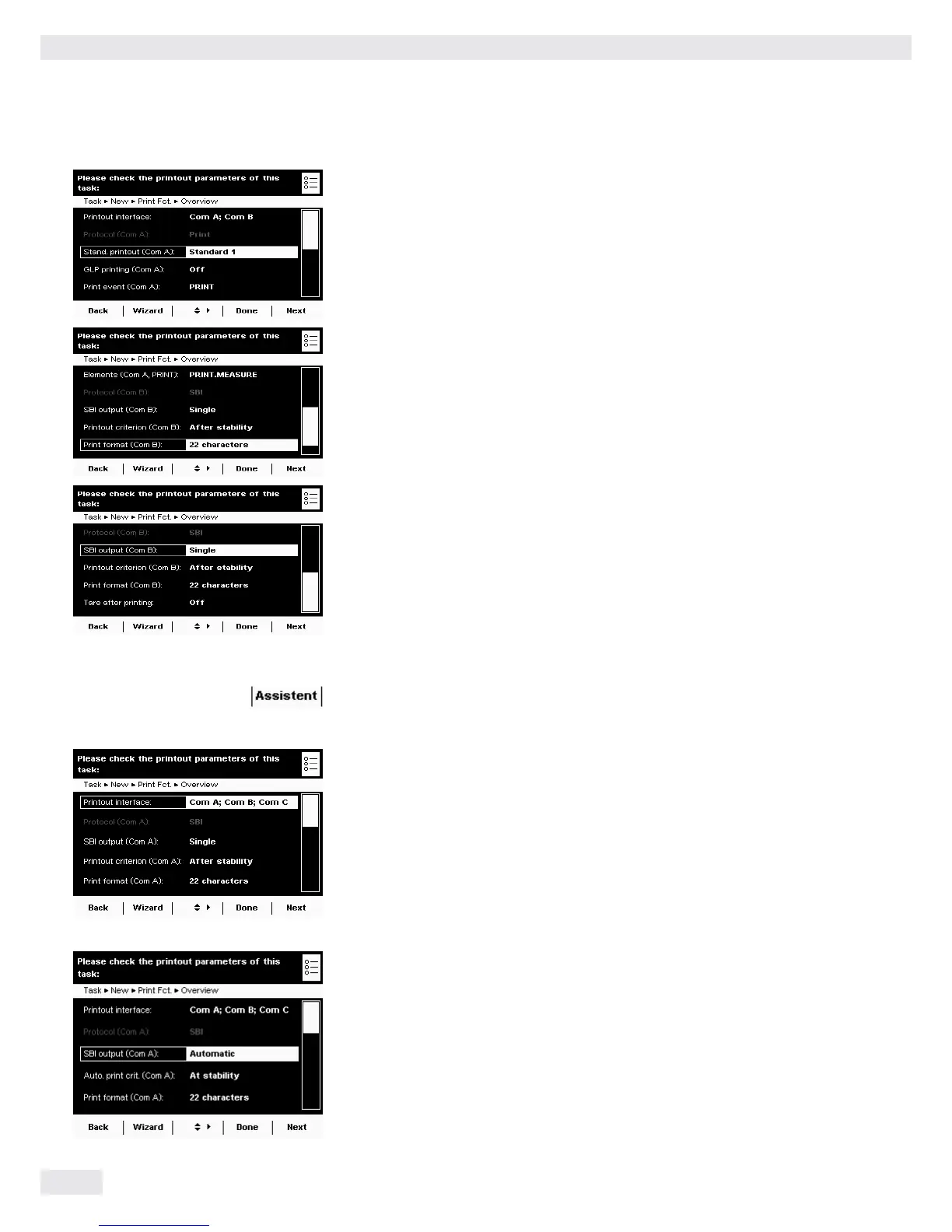

Initial Printout Parameters when the Balance Is Delivered
When the balance is first delivered, two ports are configured: The peripheral port
(ComA) is configured for one printout; the USB port (ComB) is configured for data
exchange with a PC via SBI protocol.
Printout interface: Com A (peripheral port) and ComB (USB/PC)
Protocol to Com A: Print (preset by the port configuration)
Standard printout to ComA: Standard 1 (measured value only)
GLP printing to ComA: Off, no GLP printout
Print event for output to ComA: Press the PRINT Pkey
Element to be output via ComA: Measured value
Protocol to Com B: SBI (preset by the port configuration)
SBI output to ComB: Single printout to the PC
Criterion for output to ComB: After stability of balance
Format for output to ComB: 22 characters
Tare after printing: Off, no tare
O t The cursor softkeys can be used to select configurable parameters individually.
or
t To be guided step-by-step through the settings, use the wizard.
Example Manual Printout to Peripheral Port, SBI Operating Mode
y After manual operation, you would like a single printout to be printed by the
connected peripheral device.
Printout interface: Com A (peripheral port)
Protocol: SBI (toggling to port configuration possible)
SBI output: Single printout
Criterion: Manual without stability
Format: 22 characters (for applications)
Tare after printing: On or off
Example Automatic Printout to Peripheral Port, SBI Operating Mode
y At a preset interval, automatic printouts should be sent to the connected
peripheral device.
Interface: Com A (peripheral port)
Protocol: SBI (toggling to port configuration possible)
SBI output: Automatic printout
Criterion: Without stability, at stability, or after weight change
Format: 22 characters (for applications)
Stop automatic printing: Not possible or by pressing Print P key.
Interval for automatic printing: Number of cycles (1, 2, 5, 10 to100) and 0.1, 0.2,
0.5 to 10 seconds

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
