Task Management (TASK)
Cubis MSU User Manual 59

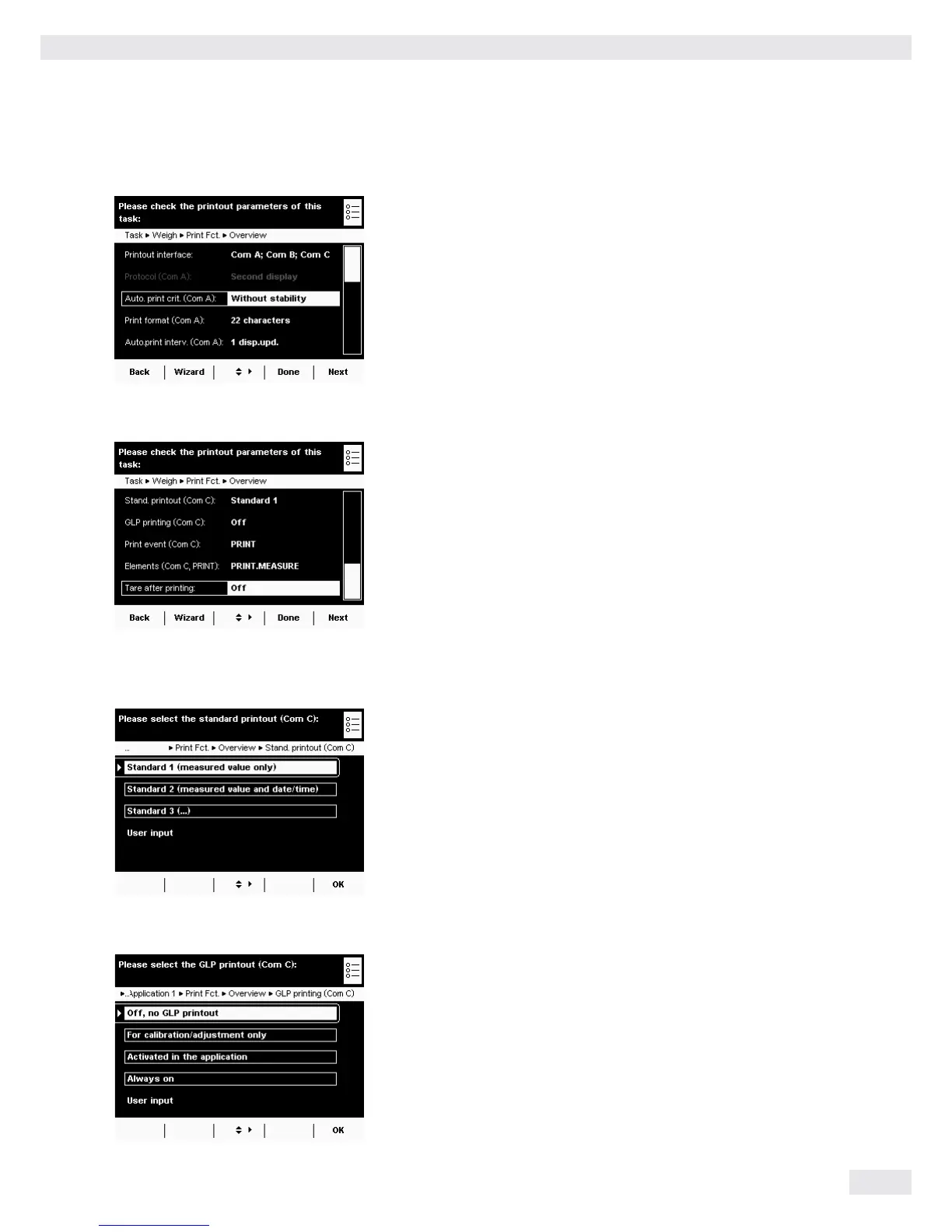

Example Automatic Printout to Peripheral Port, Second Display Operating Mode
y At a preset interval, automatic printouts should be sent to the connected
peripheral device as a second display.
Printout interface: Com A (peripheral port)
Protocol: Remote display (toggling to port configuration possible)
SBI output: Automatic printout
Criterion: Without stability, at stability, or after weight change
Format: 22 characters (for applications)
Interval for automatic printing: Display updates (1, 2, 5, 10 to100) or every 0.1, 0.2,
0.5 to 10 seconds
Example Printout to Peripheral Port Only By Pressing the PRINT P Key; Printer
Operating Mode
y After pressing the Print key, the measured value should be printed by the
connected peripheral device.
Printout interface: Com A (peripheral port)
Protocol: Print (toggling to port configuration possible)
Standard printout: Standard 1 (measured value only), Standard 2 (measured value
and date/time), Standard 3 (measured value with date/time and weight block)
GLP printing: On or off
Print event: Press the PRINT key
Elements for print event PRINT: Measured value PRINT.MEASURE
Tare after printing: On or off
Printout Parameter Settings
Standard Printout
You can select which data should be printed out as default.
Standard 1 (measured value only)
Standard 2 (measured value and date/time)
Standard 3 (measured value with date/time and weight block)
User input is only selectable if the default settings have been modified
by the user.
GLP Printing
You can select if and when the printout should be GLP-compliant.
Off, no GLP printout
For calibration/adjustment only
Always on
User input
is only selectable as long as none of the three options apply, i.e.,
if only a GLP header but not a GLP footer has been configured.
