Sartorius Cubis Series User Manual

Task Management (TASK)
Cubis MSU User Manual 61

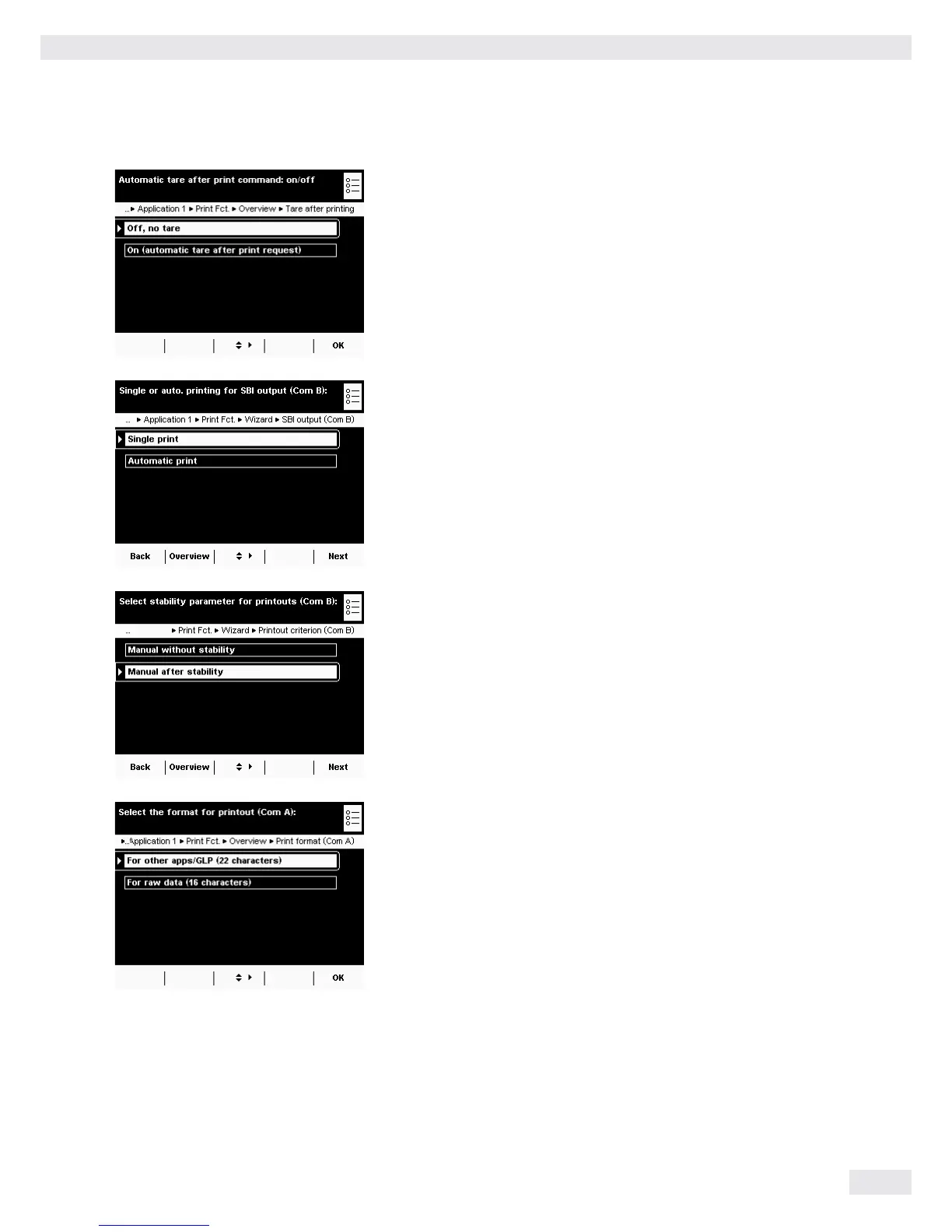

Automatic Tare after Printing
Should the balance be tared automatically after each printout?
Off, no tare
On (automatic tare after print request)
Settings for SBI Output
SBI Output Mode
How should SBI printout be printed?
Single print: Printout generated by pressing the PRINT P key or by ESC
command via the interface
Automatic print: Printout generated automatically in the weighing cycle
Stability Parameter for Printout
Should the printout be dependent on balance stability?
Manual without stability: Immediate printout without waiting
Manual after stability: Printout generated immediately at stability, otherwise
not until after next stability
Format for Printout
How should the printout be formatted?
For other apps/GLP (22 characters): Printout with header; 20 characters
plus line break (“space line”) (CR) and dotted line (“dash line”) (LF)
For raw data (16 characters): Printout without header; 14 characters plus line
break (CR) and dotted line (LF)

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
