Sartorius Cubis Series User Manual

Individual Identifiers
Cubis MSU User Manual 71

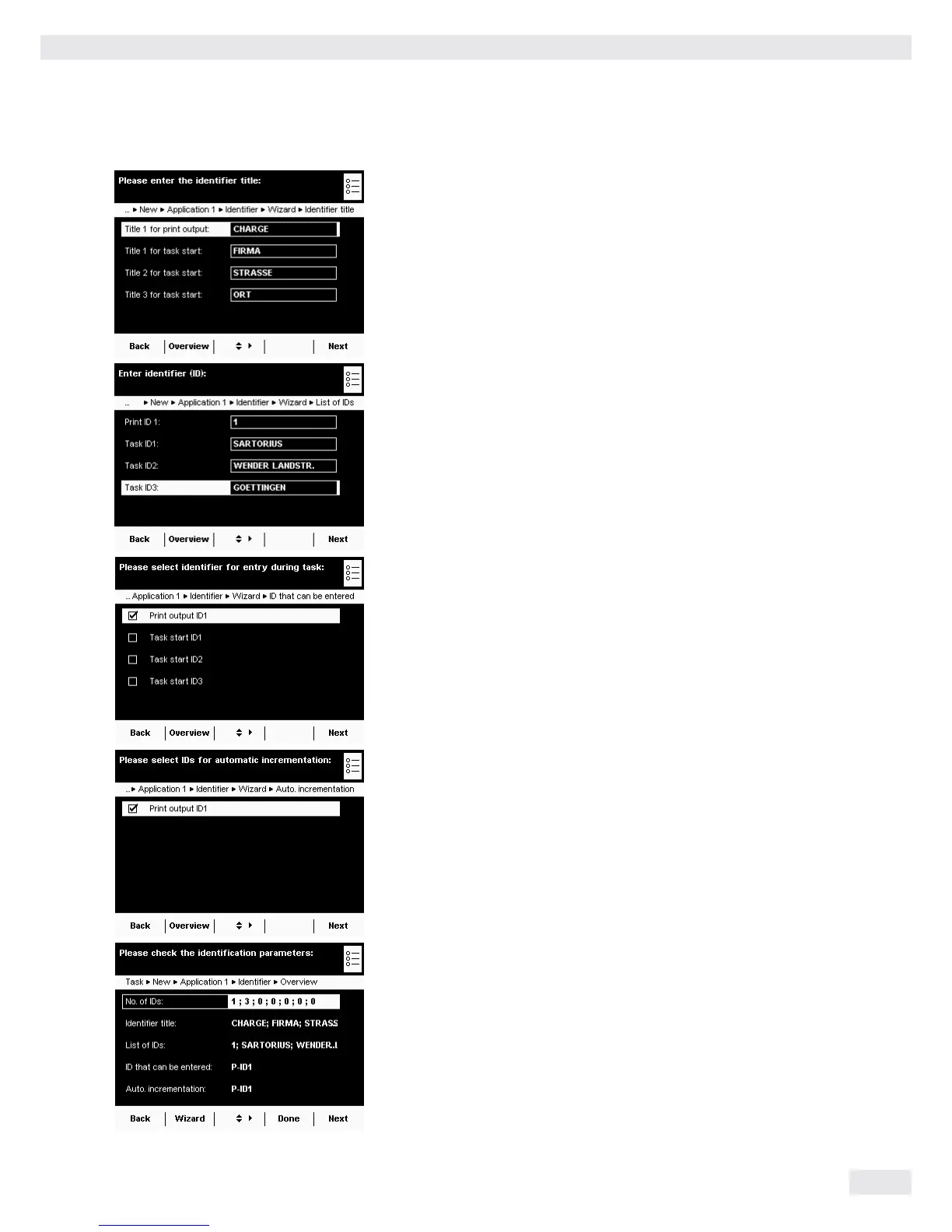

y In the example, a unique title has been defined for each identifier.
y Enter the desired value (text) for each identifier .
.
t Select the identifiers that can be entered for executing the task.
t Select whether or not the variable identifiers should be counted up
automatically.
y In the example, the identifier for printout ID1 can be entered and will
be counted up automatically.
y An overview of all settings is displayed.
t Check all settings and change as required.
y Now you will be prompted to configure the weighing and printing functions.
t Check all settings and change as required.
t Enter a short name and a description for the new task.
t To save the new task, select Save.

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
