Sartorius Cubis Series User Manual

Individual Identifiers
72 Cubis MSU User Manual
Executing a Task: Individual Identifiers
D t If you haven’t already done so, go to Application Management.
y The task selection is displayed.
t Select the desired task.
or
t If the desired task is already marked, select Start.

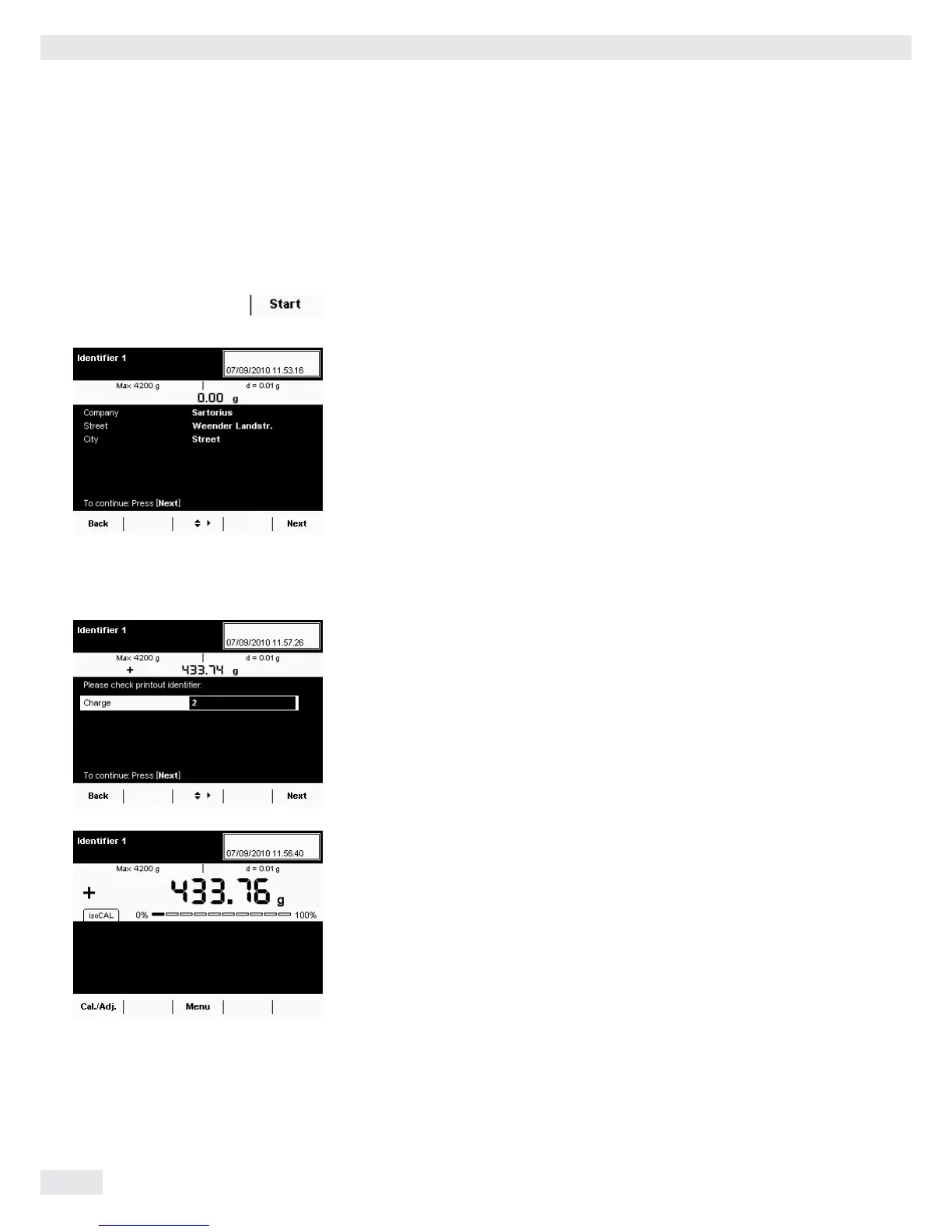

y The defined identifiers are displayed (cf. example above).
t Select Next.
y The predefined lines are printed when the task starts:
Company: Sartorius
Street:
Weender Landstr.
City: Goettingen
P t Place the sample on the weighing pan and press the
PRINT key
p
.
y The identifier for the printout is displayed and can be changed
if necessary.
y In the example, BATCH was defined for the printout.
t If required, you can change this value now.
t Select Next or press the PRINT key
p
again.
t To log the value, press the Print key
p
.
y The complete printout looks like this:
Company: Sartorius
Street:
Weender Landstr.
City: Goettingen
N + 214.5 g
BATCH 1
N + 213.3 g
BATCH 2

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
