Sartorius Cubis Series User Manual

Density Determination
Cubis MSU User Manual 75

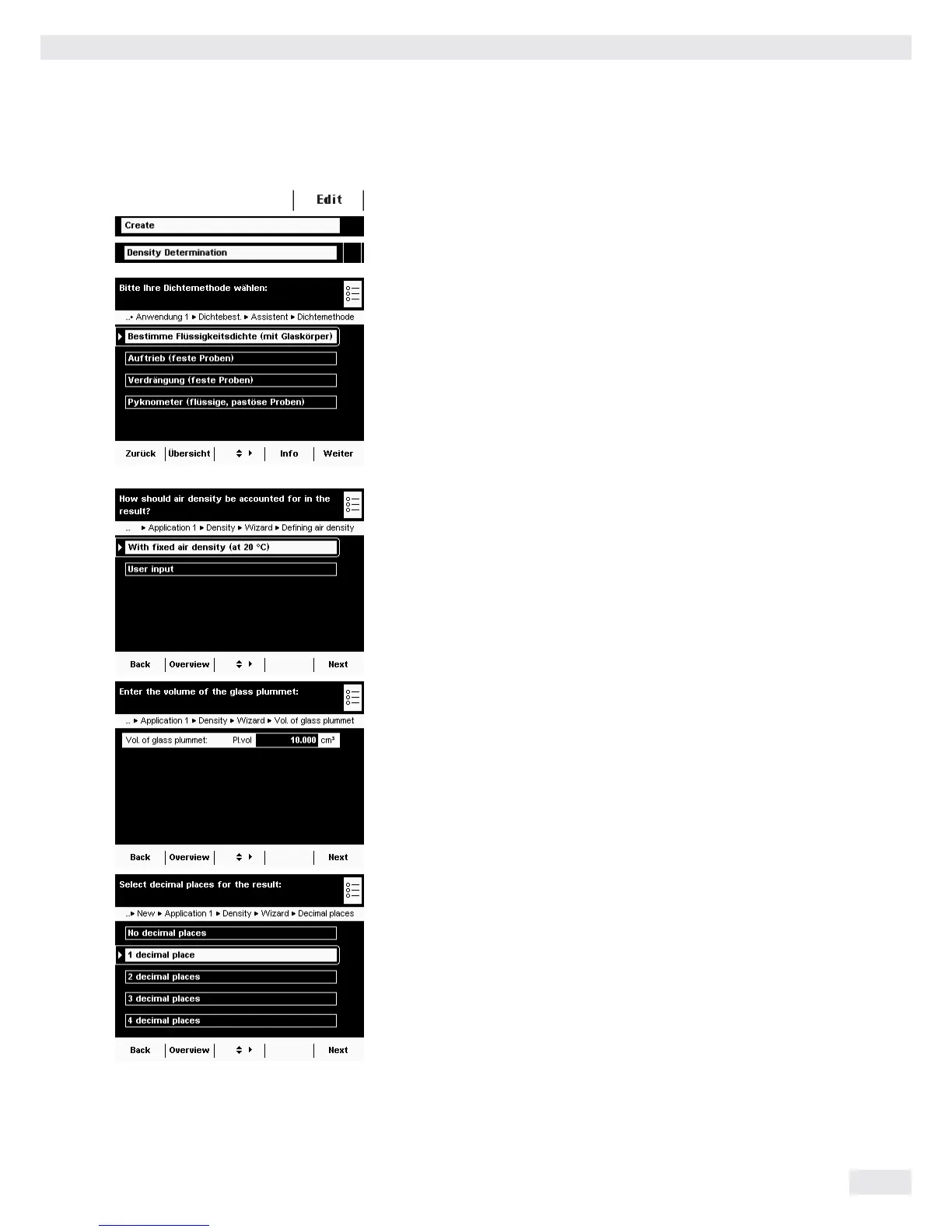

Configuring a Task: Determining Density of Liquid
D
t Select Determine density of liquid.
t Select the measurement conditions.
Air density at 20°: Measurement takes place under standard laboratory
conditions (20°C room and material temperature).
User input: If the measurement is to take place under deviating conditions.
t Enter the required values.
t Enter the volume of the glass plummet.
t Select the number of decimal places to be used for the density results.

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
