Date Code 20080110 SEL-300 Series Relays Firmware Upgrade Instructions B-23
SEL-387E Instruction Manual
Step 7. Click Copy to Folder (Figure B.19)
Step 8. Browse for folder.
Step 9. Click OK.

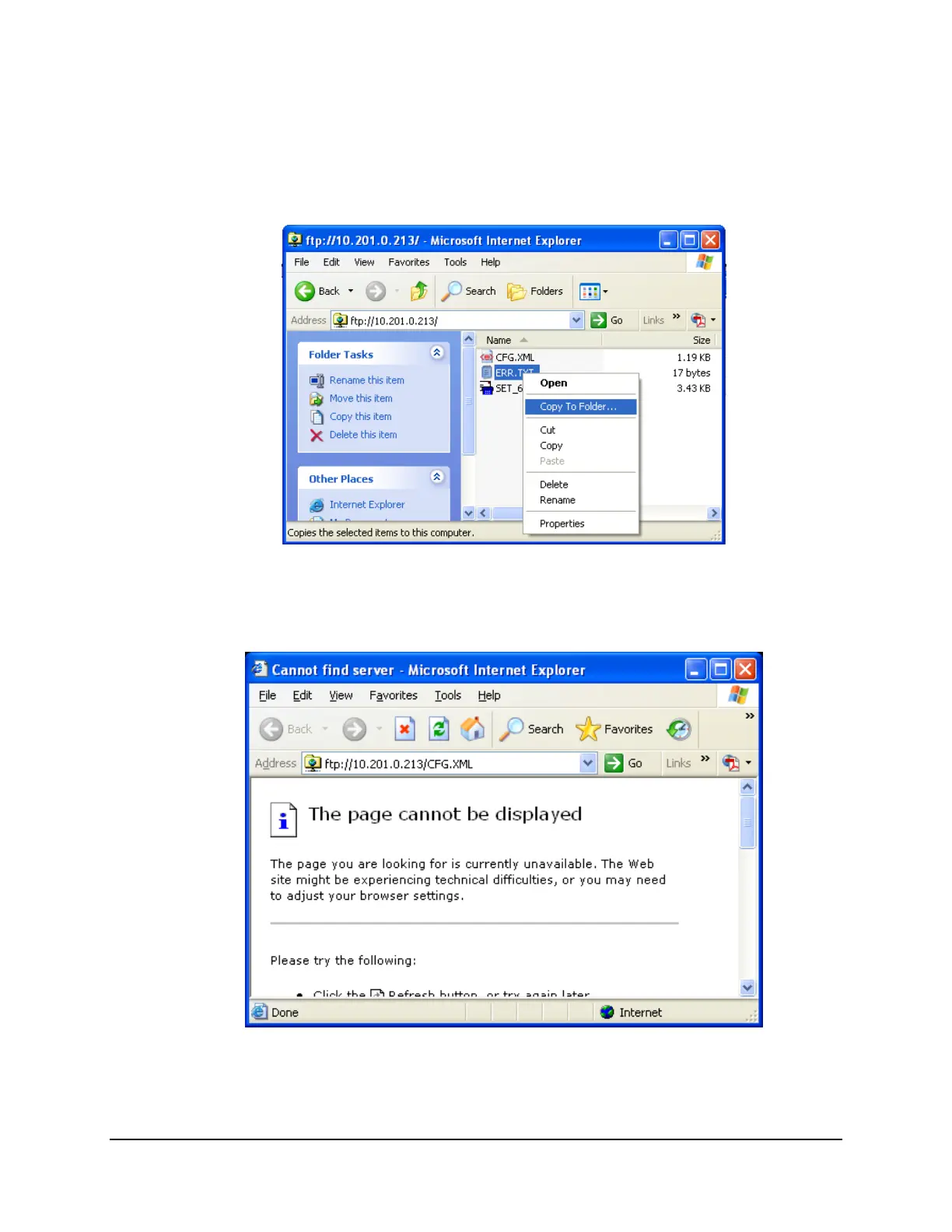

Figure B.19: Read (Open) File
If a window opens with the message, “The page cannot be displayed,” as shown in
Figure B.20,
you might have logged on improperly. Retry the login process described in the steps above.
Figure B.20: Page Cannot Be Displayed Window
