Sea-doo SP - Engine Cooling System

Section 04 COOLING SYSTEM
Sub-Section 03 (CIRCUIT)
04-03-4

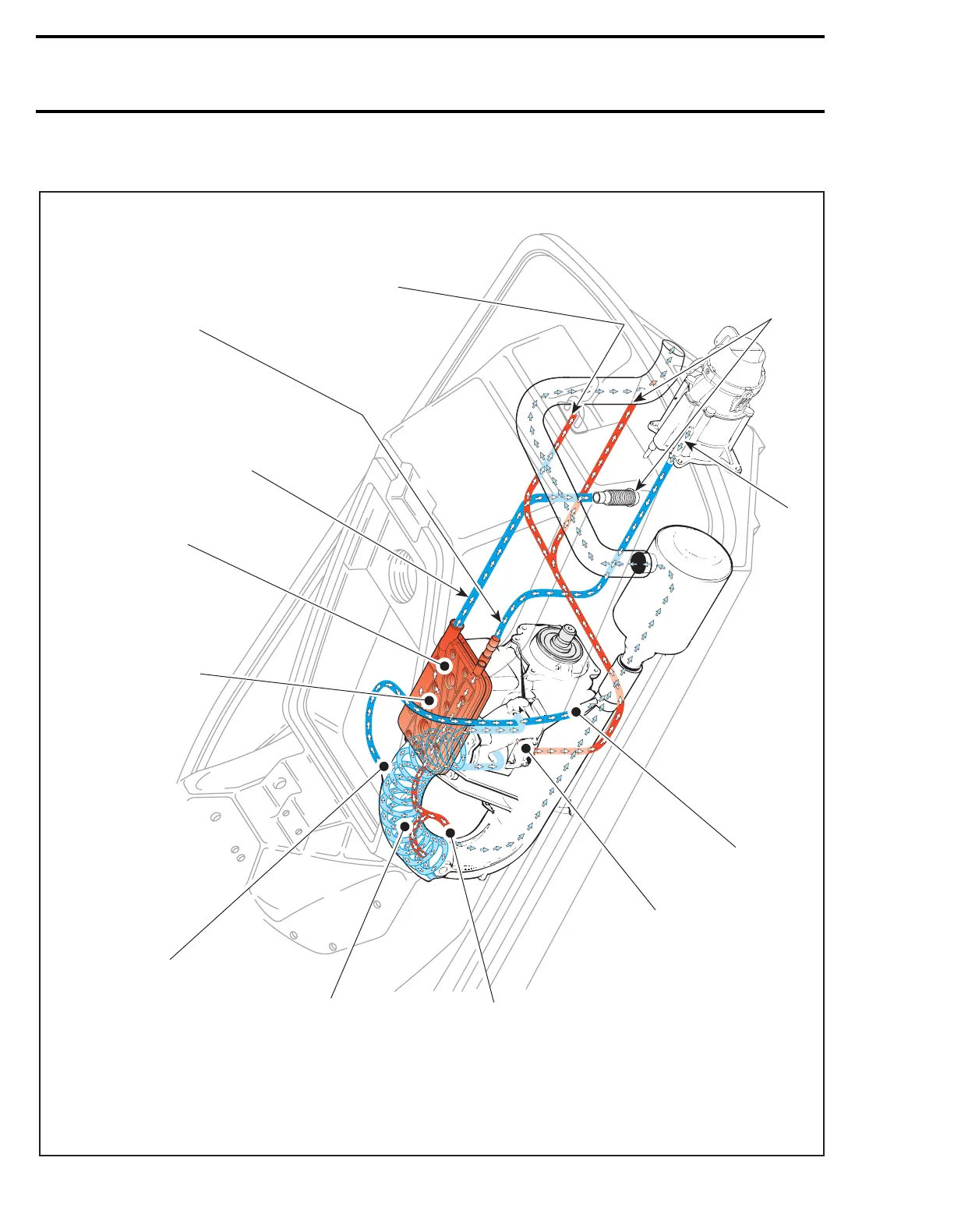

717 ENGINE COOLING SYSTEM
F01E0JS
Temperature
sensor activates
monitoring beeper
when temperature
exceeds 96-99°C
(205-210°F)
Calibrated
cylinder head.
Serial cooling
allows the
cylinder head
to run cooler
Engine water
outlet hose
Engine water
inlet hose
Cooling System
Indicator (CSI):
small stream of
water flows out of
bleed outlet located
near stern eyelet
Calibrated outlet fittings
limit water flow
Pressure zone
Tuned pipe bleed
hose injects water
into muffler to cool
exhaust components
Lowest point of circuit
allows draining whenever
engine is stopped
Water
injected
directly
into exhaust
gas for noise
reduction and
performance
improvement
Water flows
through tuned
pipe and
manifold
water jackets
Uppermost point
of circuit
(tuned pipe)
allows bleeding
717 ENGINE COOLING SYSTEM
