Section 08 PROPULSION SYSTEM
Sub-Section 04 (REVERSE SYSTEM)
08-04-3

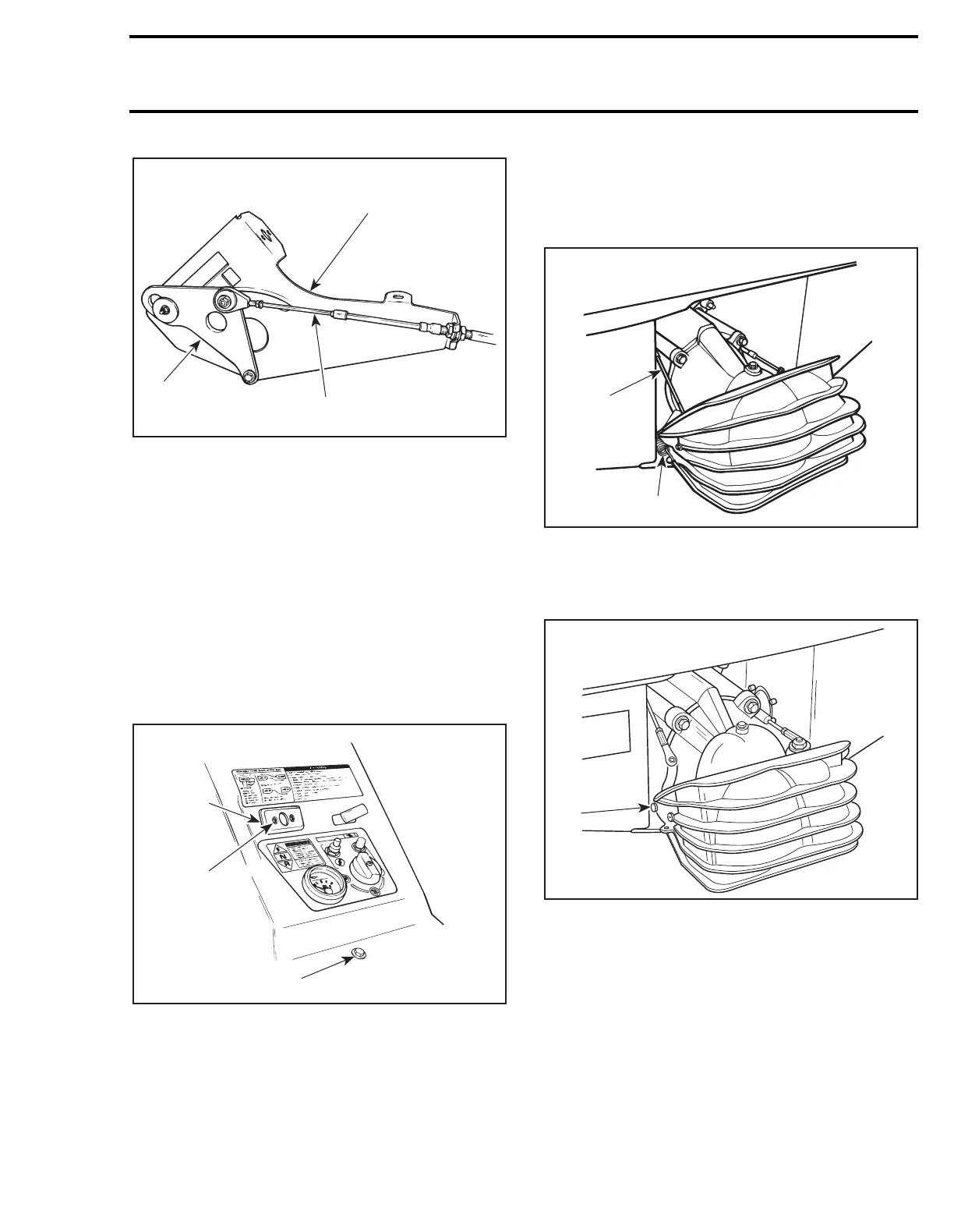

TYPICAL
1. Reverse support
2. Reverse cable
3. Triangular lever
6, Reverse Support
In order to have access to screw holding lower
part of reverse support, remove front seat by pull-
ing on each side to release it from body.
Remove screw, lock nut and washers holding low-
er part of support.
Remove reverse cable from support.
Remove 2 Allen screws, lock nut and washer
holding guide plate and support.
TYPICAL
1. Guide plate
2. Allen screw
3. Screw and washer
7, Reverse Gate
Unhook reverse gate springs and remove ball joint
fasteners to release reverse cable from reverse
gate.
1. Reverse cable
2. Reverse gate spring (each side)
Unscrew reverse gate retaining screws from ven-
turi housing, then remove gate.
1. Screw (each side)
ASSEMBLY
Assembly is essentially the reverse of disassem-
bly procedures. However pay particular attention
to the following.
7, Reverse Gate
Install reverse gate with sleeve and washer. Apply
Loctite 242 (blue) on threads and torque to 20
N•m (15 lbf•ft).
F02J06A
2
3
1
F02J07A
3
2
1
F02J08A
1
2
F02J09A
1
