Sea-doo SP - Magneto System

Section 03 ENGINE
Sub-Section 04 (MAGNETO SYSTEM)
03-04-1

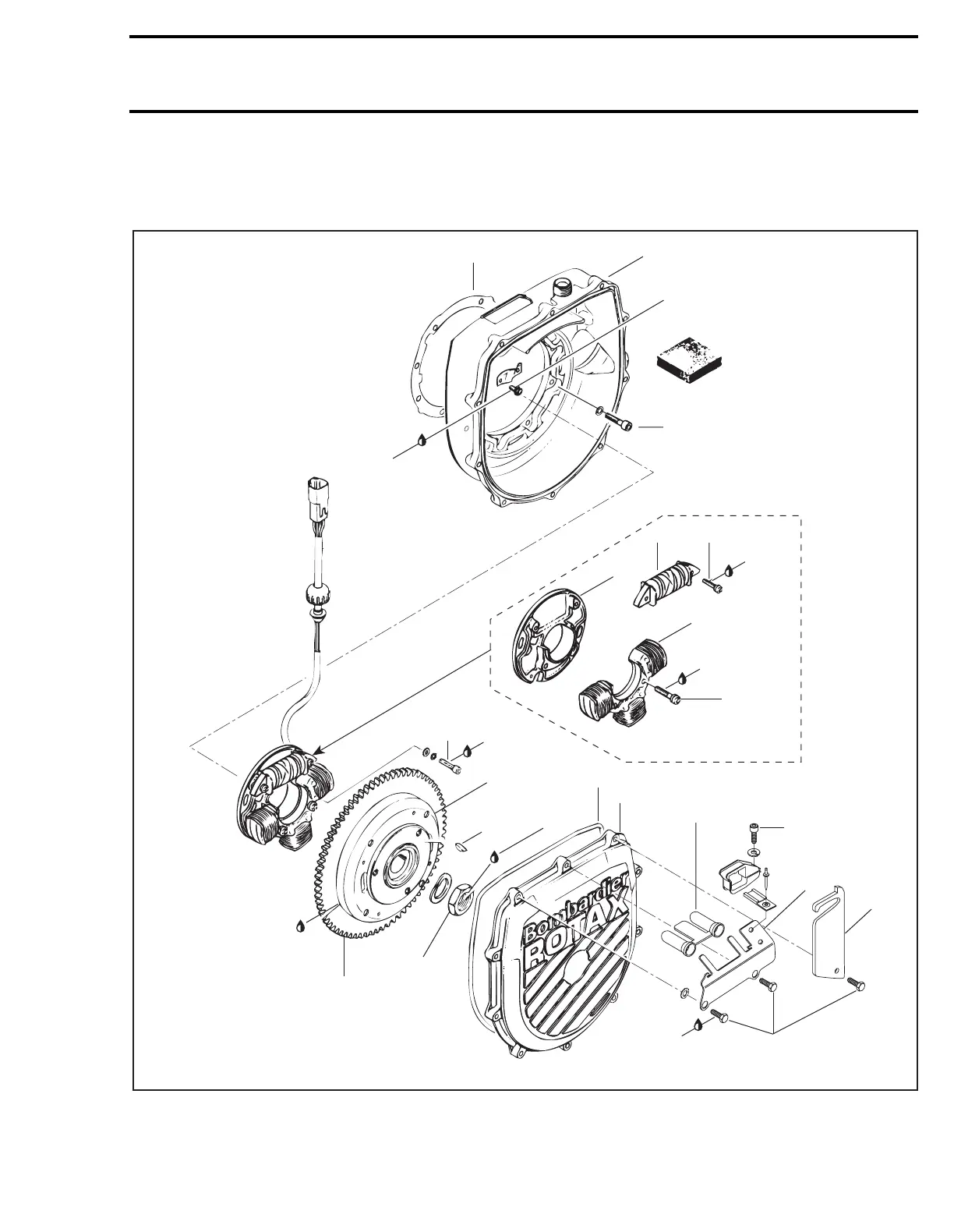

MAGNETO SYSTEM 0
717 Engines
F00D04S
8
7
5 N•m
(44 lbf•in)
9
9 N•m
(80 lbf•in)
Loctite
242
10
11
12
Loctite
242
13
6 N•m
(53 lbf•in)
Loctite
242
6 N•m
(53 lbf•in)
14
Loctite 242
15
6 N•m
(53 lbf•in)
4
16
Loctite
242
Loctite
648
5
6
145 N•m
(107 lbf•ft)
Anti-seize
lubricant
2
9 N•m
(80 lbf•in)
1
3
4 N•m
(35 lbf•in)
17
18
SP, GTS and
HX models
