Sea-doo SP - Page 41

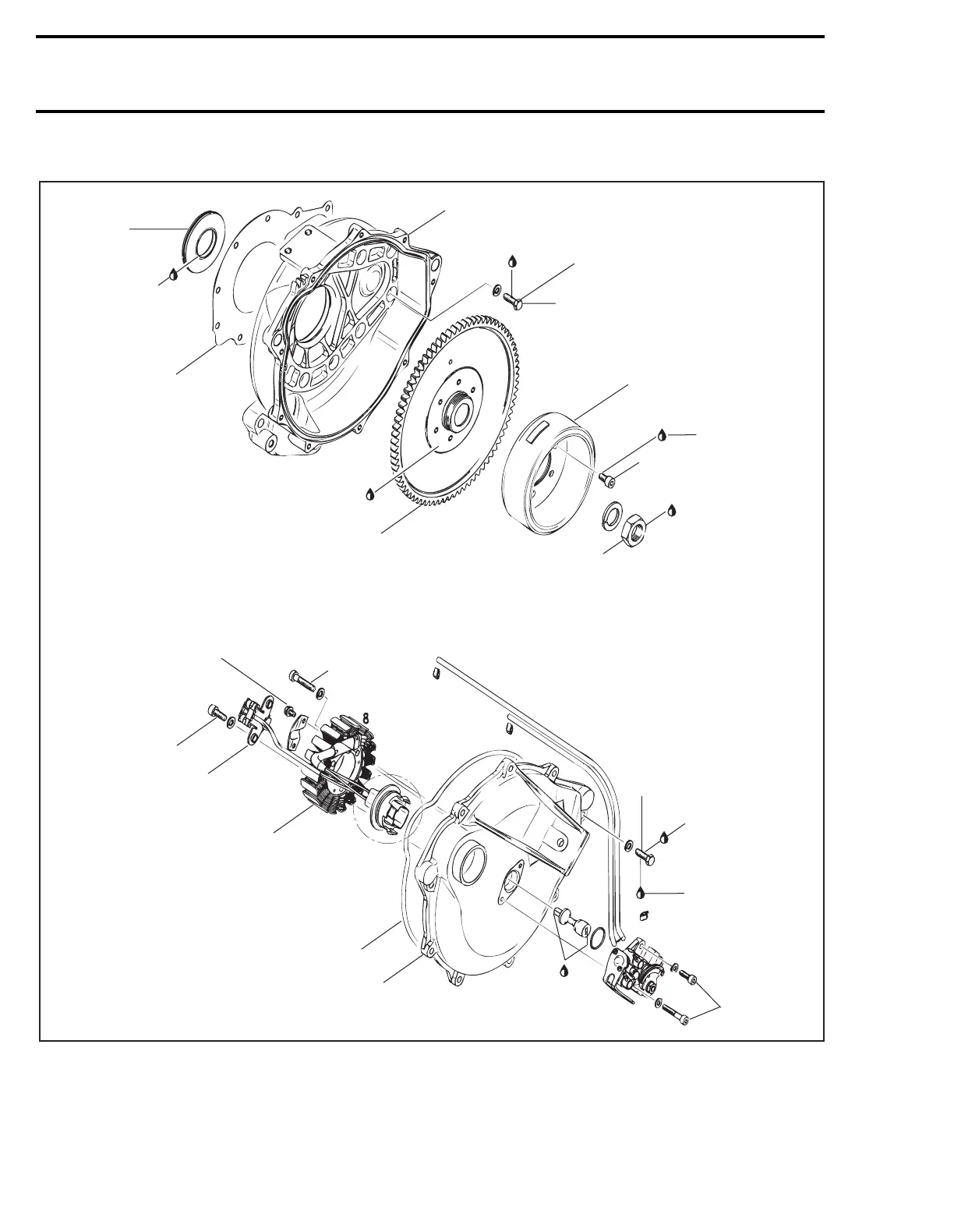

Section 03 ENGINE
Sub-Section 04 (MAGNETO SYSTEM)
03-04-2
787 Engine
F01D7TS
Loctite 242
Loctite 242
Loctite 648
Loctite 648
10
7
9
6
5
8
1
2
4
11
10 N•m
(88 lbf•in)
10 N•m
(88 lbf•in)
Synthetic
grease
Lithium
grease
105 N•m
(77 lbf•ft)
10 N•m
(88 lbf•in)
6 N•m
(53 lbf•in)
10 N•m
(88 lbf•in)
9 N•m
(80 lbf•in)
Anti-seize
lubricant
13
15
14
12
3
16
4.5 N•m
(40 lbf•in)
