Section 08 PROPULSION SYSTEM
Sub-Section 05 (VARIABLE TRIM SYSTEM)
08-05-6
ADJUSTMENT

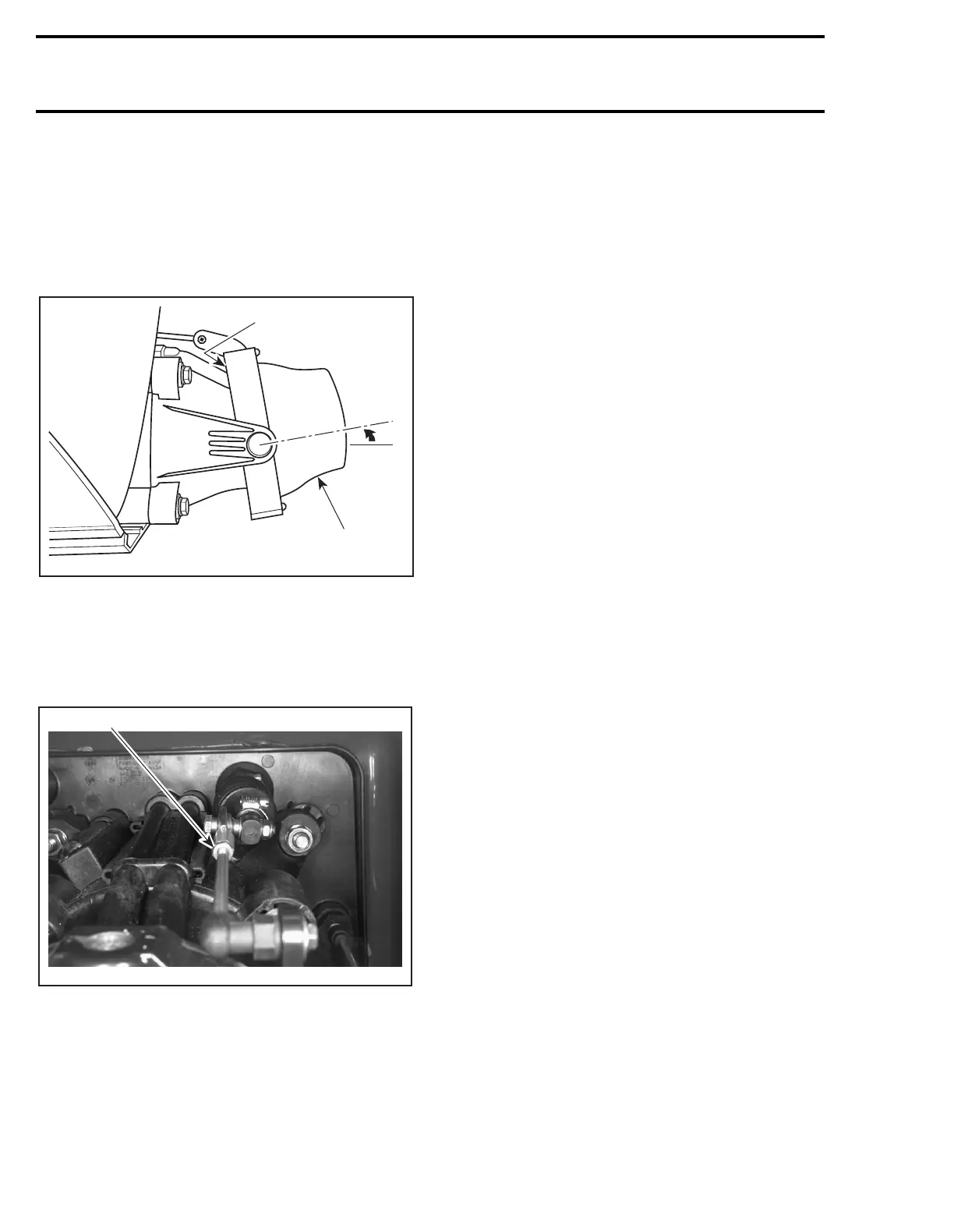

Push on VTS button up position until motor stops.
When the nozzle is up (8°), nozzle edge must not
interfere with venturi (there should be a gap of 1
mm (.039 in)).
NOTE:
Activate timer to be able to position VTS.
1. No interference
2. Nozzle up
If an adjustment is necessary, loosen jam nut of
ball joint at link rod. Turn adjustment nut of ball
joint to obtain the desired gap between trim ring
and venturi.
TYPICAL — GSX MODEL SHOWN
1. Turn adjustment nut of ball joint
Tighten jam nut of ball joint to 2.5 N•m (23 lbf•
in
)
when adjustment is completed.
F01J3IA
1
2
8°
F06J01A
1
