Section 05 FUEL SYSTEM
Sub-Section 02 (FUEL CIRCUIT)
05-02-7
REMOVAL
1, Fuel Filter
All Models Except HX and XP
Open storage compartment cover.
Remove basket.
HX and XP Models
Open engine cover.
GTS Model

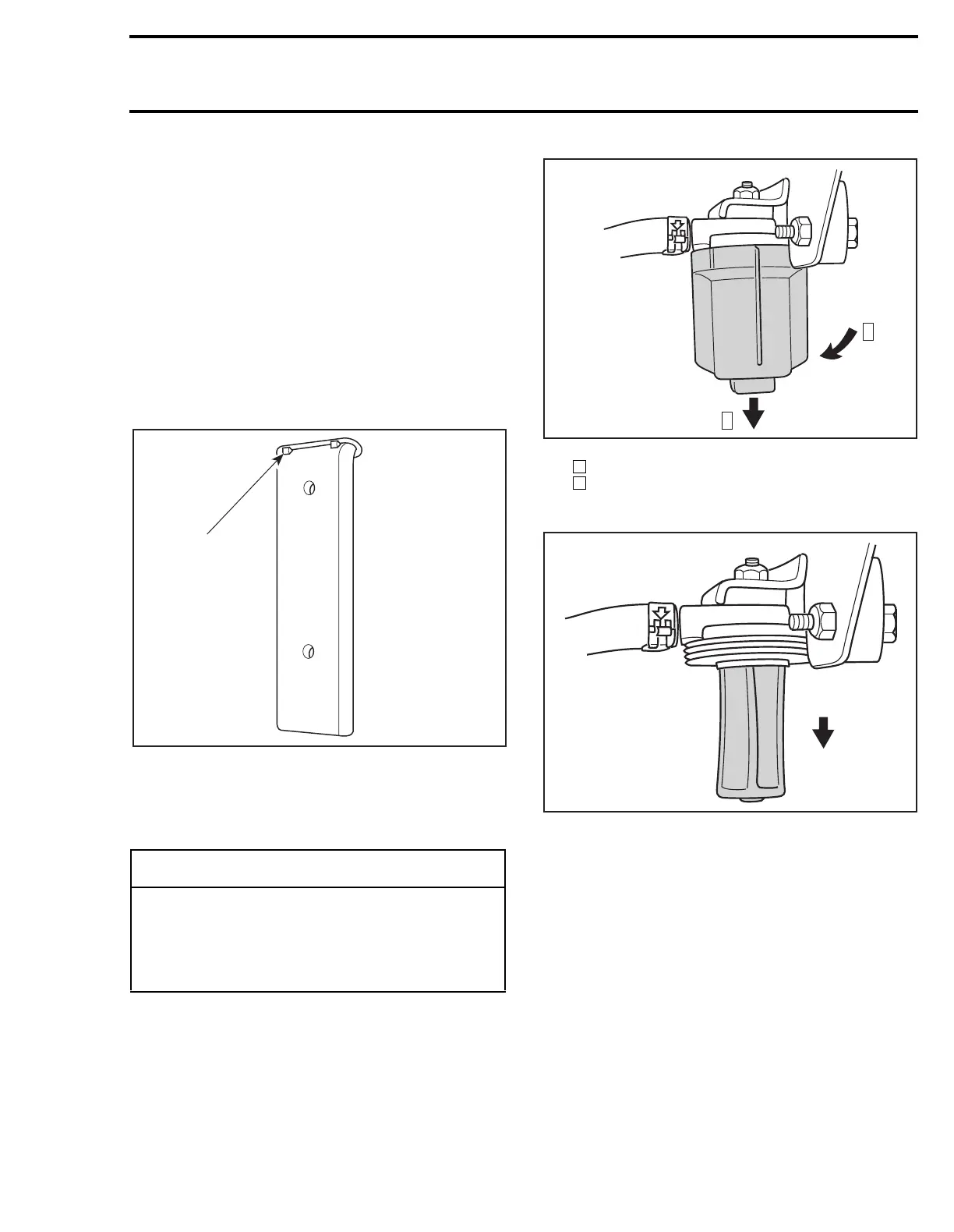

Press on vent tube upper part to enable to with-
draw tube from body.
TYPICAL
1. Press on vent tube
All Models
Turn the fuel valve to OFF position.
Unscrew fuel filler cap to remove any fuel pres-
sure in system.
Unscrew the fuel filter bowl
no. 2
counterclock-
wise then pull toward the bottom.
TYPICAL
Step : Loosen counterclockwise
Step : Pull
Pull fuel filter
no. 1
toward the bottom.
TYPICAL
8, Fuel Baffle Pick Up
NOTE:
The baffle pick up has an integrated fuel
sensor on models which have a fuel gauge.
â—†
WARNING
The engine must not be running and fuel
valve must be set to OFF position. Gasoline
is flammable and explosive under certain
conditions. Always work in a well ventilated
area.
F02L1MA
1
F01F01A
2
1
1
2
F01F04A
