Section 08 PROPULSION SYSTEM
Sub-Section 02 (JET PUMP)
08-02-20

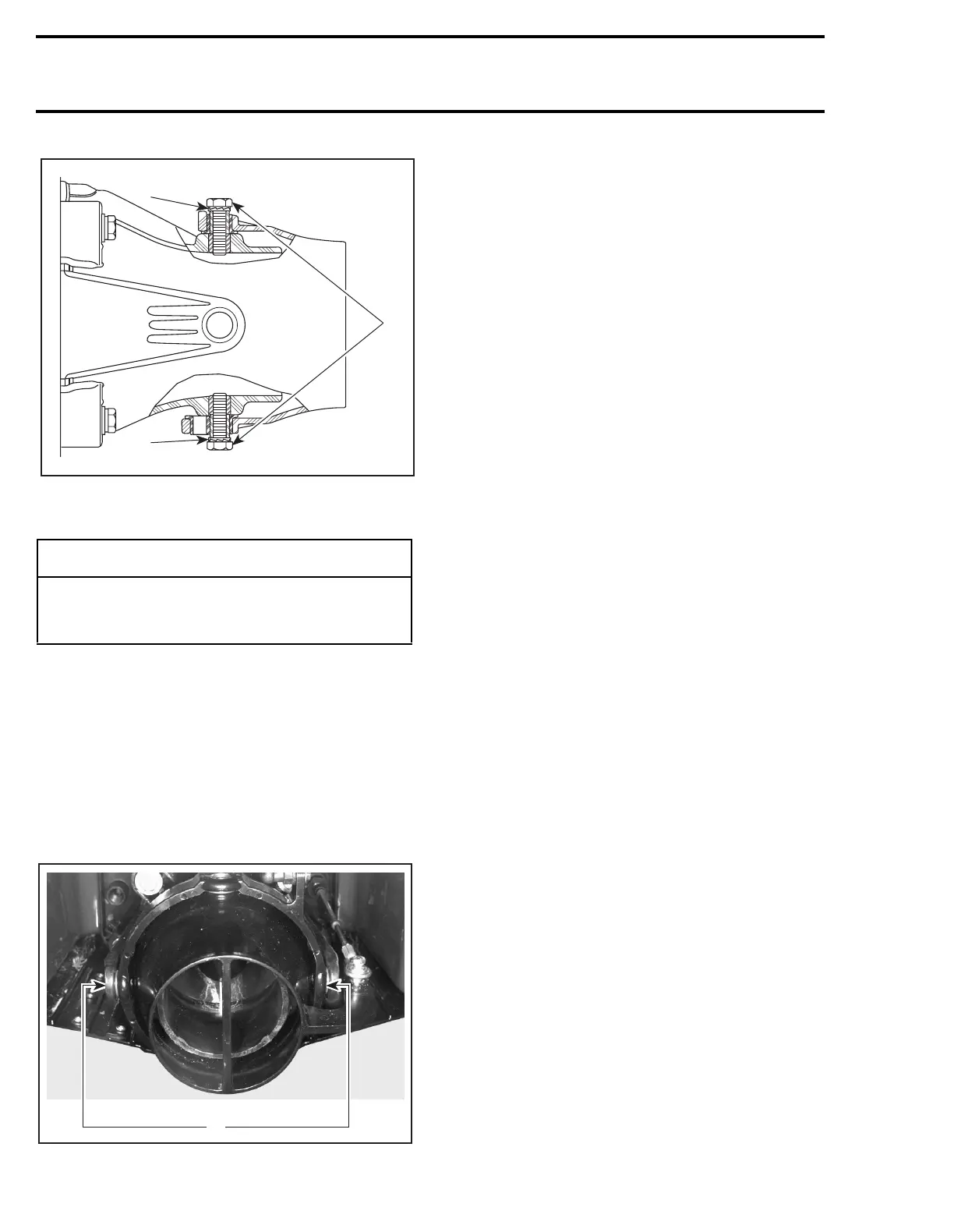

TYPICAL
1. Locking disks
2. Torque screws to 20 N•m (15 lbf•ft)
SPX, GSI, GSX, HX and XP
Install nozzle/trim ring assembly.
Torque screws to 14 N•m (10 lbf•ft).
NOTE:
Trim ring has a tight fit; to install, insert
both sides at the same time, taking care not to
break plastic bushings. Carefully use a plastic tip
hammer if necessary. Make sure steering arm of
jet pump is on right side and trim arm is above
venturi.
1. Torque screws to 14 N•m (10 lbf•ft)
Steering Cable
Refer to STEERING SYSTEM 09.
Trim System
Refer to PROPULSION SYSTEM 08-05.
Reverse Cable
Refer to PROPULSION SYSTEM 08-04.
â—†
WARNING
Whenever removing screw always renew
locking disks. Screw must be torqued as
specified.
F01J3BA
1
2
1
F01J5FA
1
To Next Page
