Section 07 ELECTRICAL SYSTEM
Sub-Section 04 (STARTING SYSTEM)
07-04-9
787 Engine Only
18, Locking Collar

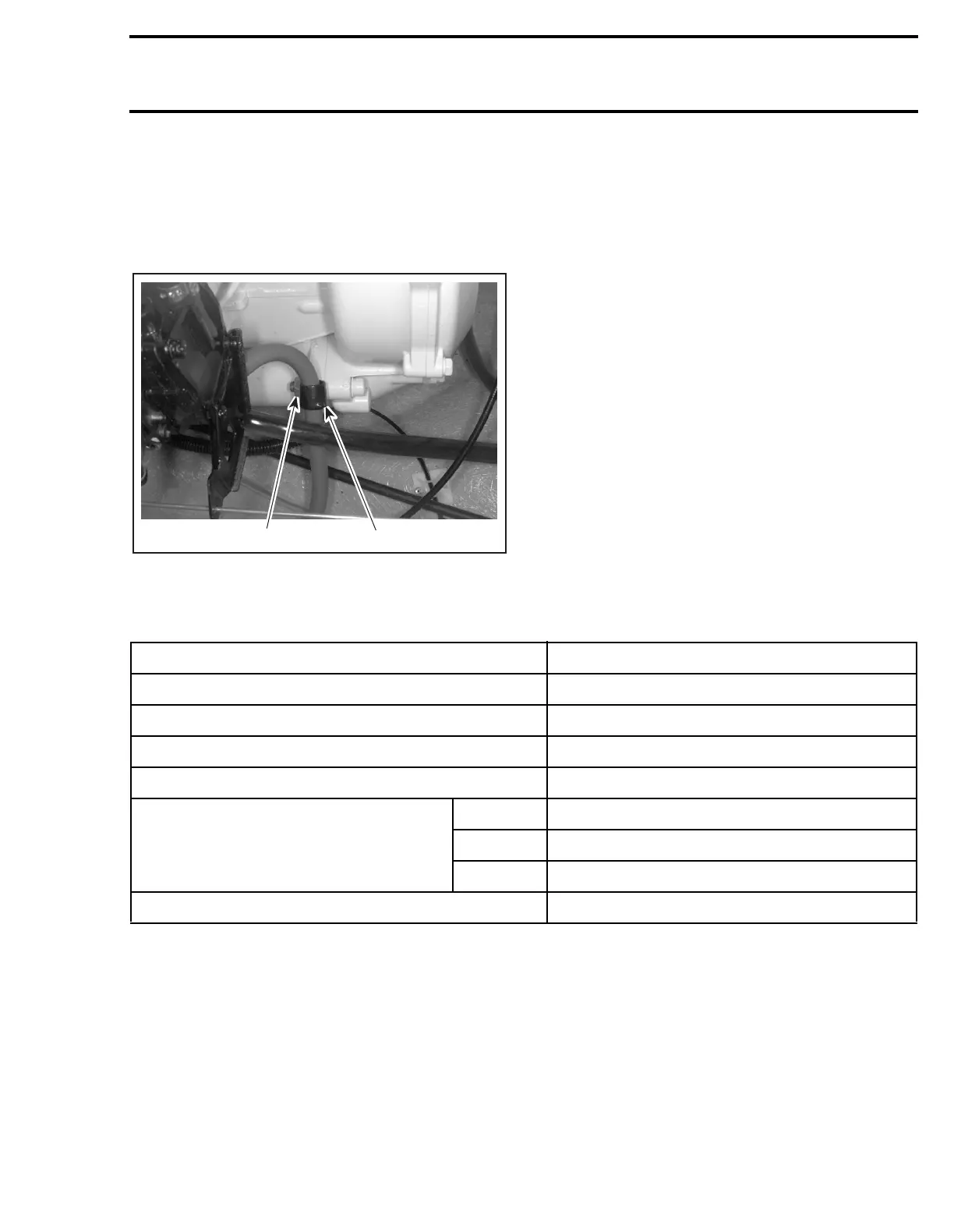

Install the locking collar of the fuel hose. Apply
Loctite 242 (blue) on nut
no. 19
and torque to 25
N•m (18 lbf•ft).
1. Locking collar
2. Nut
STARTER SPECIFICATION
1
2
F07H03A
Nominal output 0.6 kW
Voltage 12 V
Rated time 30 seconds
Rotation Counterclockwise (viewed from pinion side)
Weight Approx. 2 kg (4.4 lb)
Performance specification at 20 °C (68 °F) No load 11.5 V 20 A max. 5500 RPM
Load 8.5 V 170 A max. 2200 RPM
Stall 5 V 350 A max. 0 RPM
Battery 19 Ah
