Section 08 PROPULSION SYSTEM
Sub-Section 04 (REVERSE SYSTEM)
08-04-2
GENERAL
It is not necessary to remove reverse system
from watercraft for servicing. However reverse
system removal is necessary to replace reverse
support.
DISASSEMBLY
Remove storage tray from watercraft.

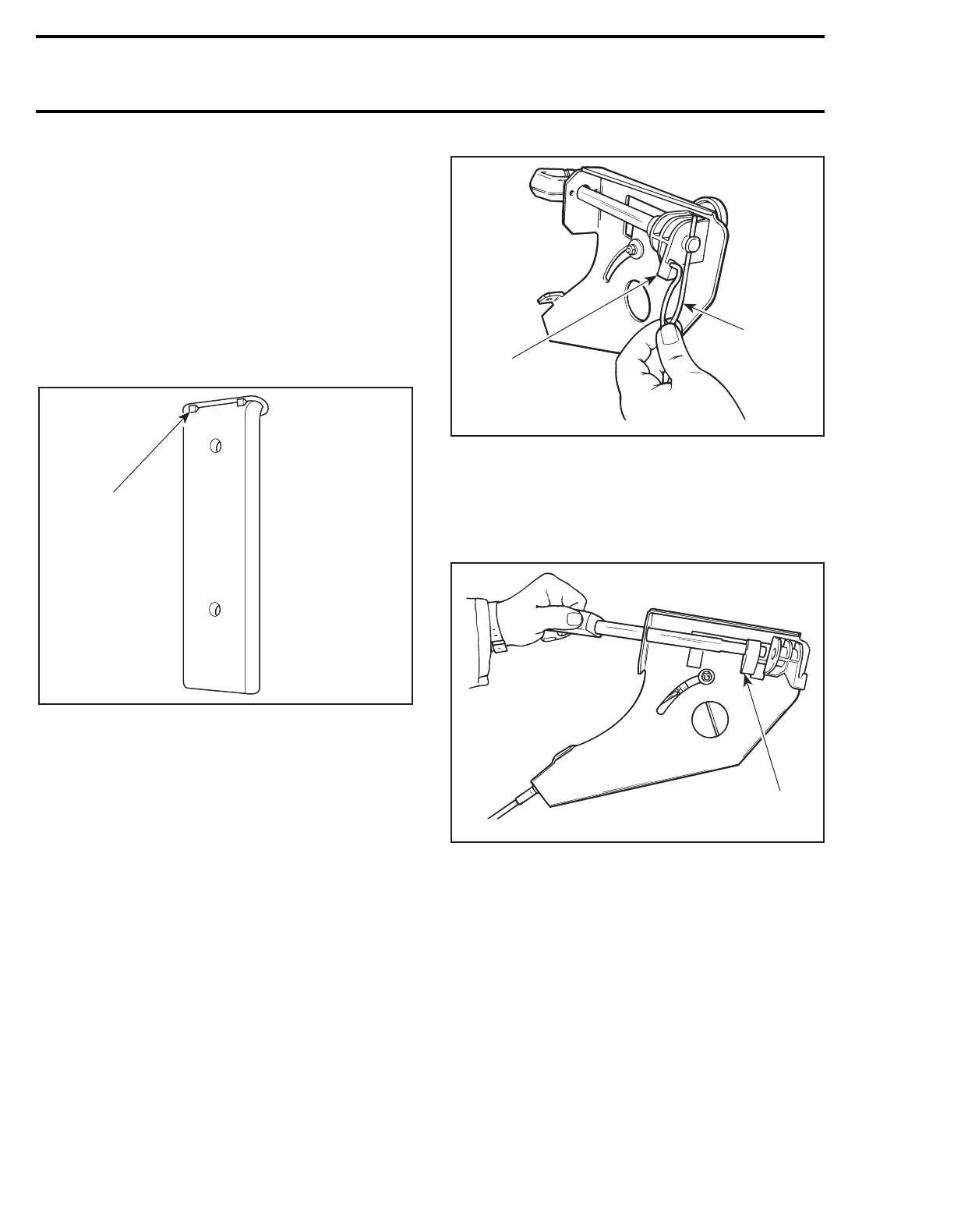

Press on vent tube upper part to enable to with-
draw tube from body.
TYPICAL
1. Press on vent tube
3, Shift Lever
To remove shift lever, unhook spring
no. 2
from
sliding block
no. 5
and pull spring from shift lever
stem.
TYPICAL
1. Sliding block
2. Spring
Withdraw shift lever stem and locking lever
no. 1
from sliding block
no. 5
, then slide off locking le-
ver from stem.
TYPICAL
1. Locking lever
4,5, Triangular Lever and Sliding Block
Remove screw, lock nut, washers and bushing
holding reverse cable to triangular lever.
Remove lock nut and washer holding sliding block
to triangular lever and to support.
Remove screw, lock nut, washer and bushing
holding triangular lever to reverse support.
F02L1MA
1
F02J04A
1
2
F02J05A
1
