Sea-doo SP User Manual

Section 10 SUSPENSION
Sub-Section 02 (DIRECT ACTION SUSPENSION)
10-02-2

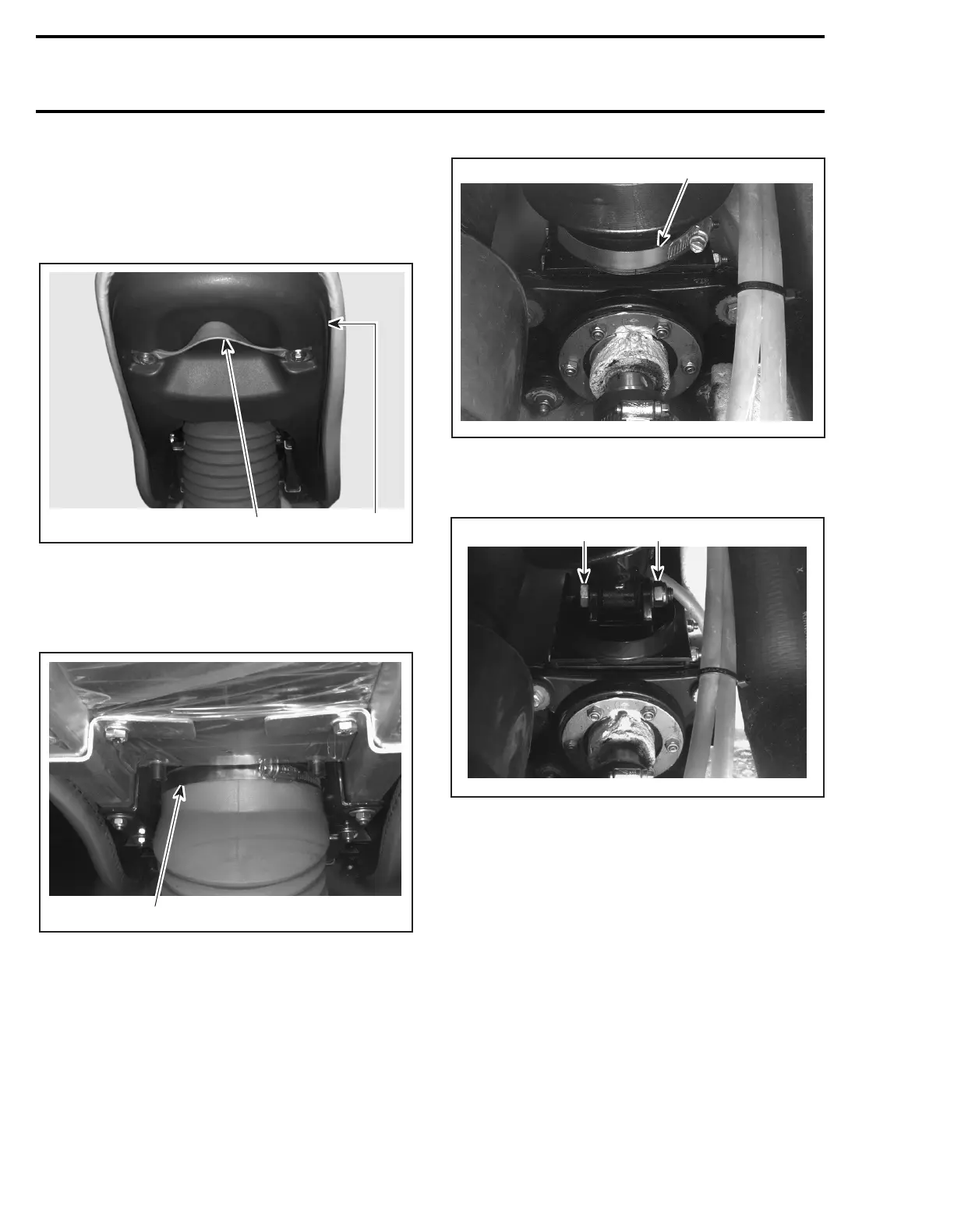

DISASSEMBLY
1, Shock Absorber
Remove bottom cover of seat with grab handle
(HX model).
TYPICAL — HX MODEL SHOWN
1. Grab handle
2. Cover
Loosen collar
no. 2
of outer boot
no. 3
, then pull
outer boot downward.
1. Collar
Remove rear access panel from body.
From bilge, loosen lower collar
no. 4
, then push
inner boot
no. 5
upward.
1. Collar
Remove bolt
no. 6
and lock nut
no. 7
from shock
absorber lower support
no. 8
.
1. Bolt
2. Lock nut
Tilt seat upward.
Loosen upper collar
no. 9
of inner boot
no. 5
;
then, pull inner boot.
F05L0HA
1
2
F05L0IA
1
F05L0JA
1
F05L0KA
1
2
